Appendix 1 – Noise Shapes 44
518 User Guide
0Hz 5kHz 10kHz 15kHz 20kHz 25kHz
-30dB
-20dB
-10dB
0dB
10dB
20dB
30dB
40dB
Noi
se Spectru
m
Frequency

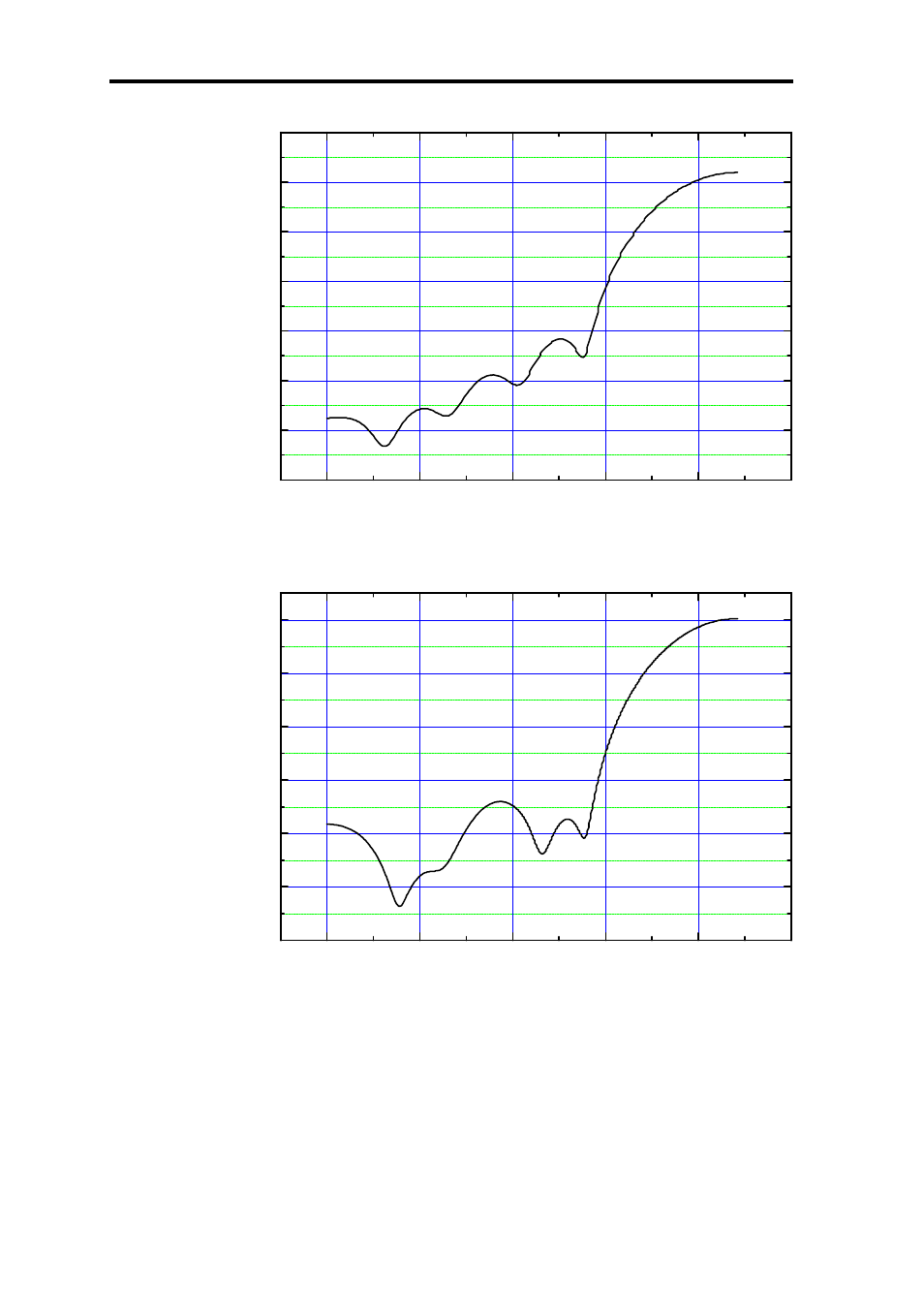

Above: noise spectrum for Shape B at 44.1kHz
0Hz 5kHz 10kHz 15kHz 20kHz 25kHz
-30dB
-20dB
-10dB
0dB
10dB
20dB
30dB
Noi
se Spectru
m
Frequency
Above: noise spectrum for Shape C at 44.1kHz
