ENGLISH
CONNECTIONS

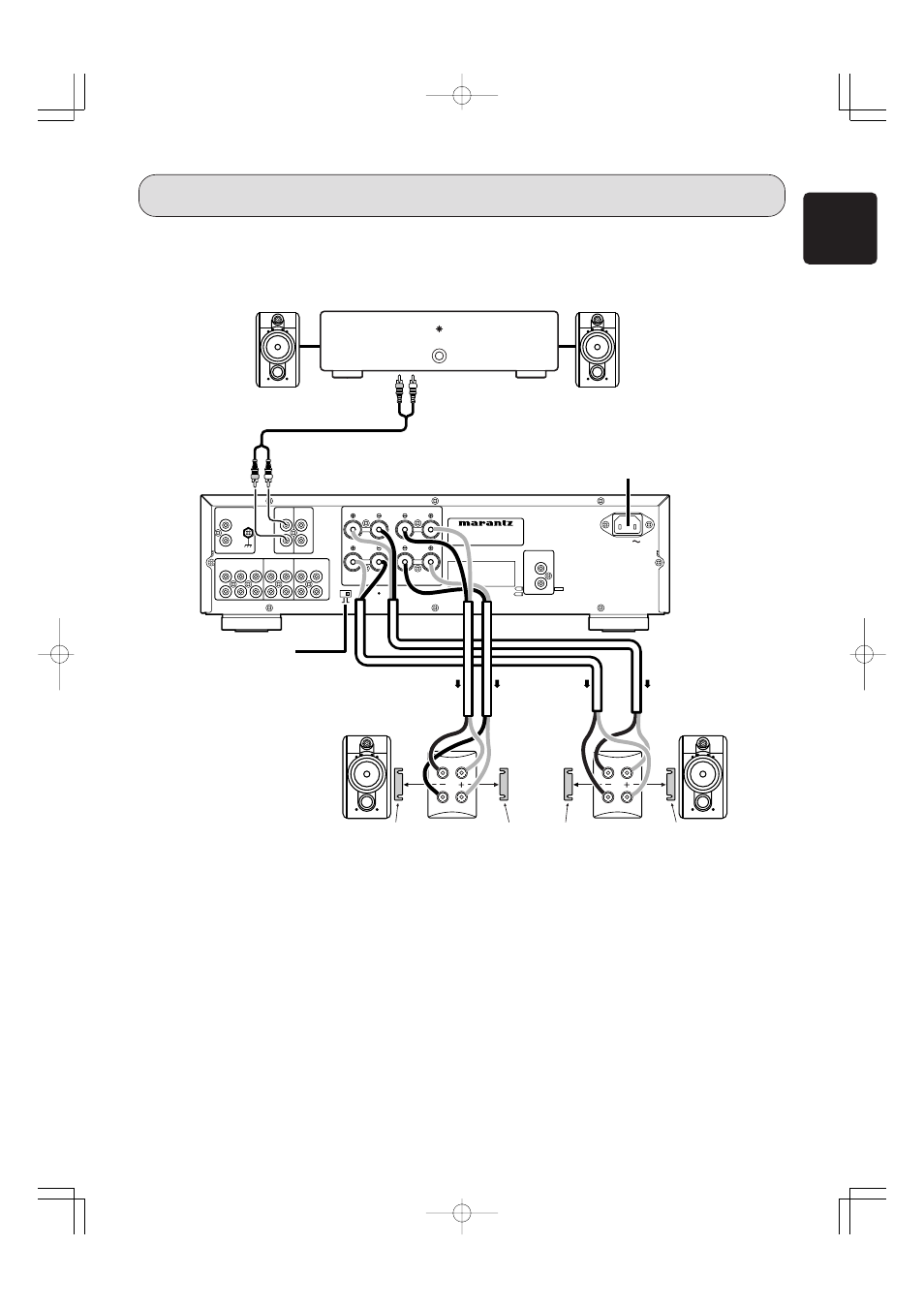

If you have another main-
amplifier, you can use the
PM7001 as the pre-amplifier
by connecting as shown in
the diagram below.
MODEL NO. PM7001
L L SYSTEM 1 OR SYSTEM 2 4 SYSTEM 1 OR SYSTEM 2 4 - -16 OHMS 16 OHMS
SYSTEM 1 AND SYSTEM 2 8 SYSTEM 1 AND SYSTEM 2 8 - -16 OHMS 16 OHMS
SPEAKERS SPEAKERS
R R
L L
MAIN IN MAIN IN
L L
R R
PRE OUT PRE OUT
GND GND
R R
L L
CD CD AUX AUX // DVD DVD TUNER TUNER OUT OUT IN IN RECORDER 1 RECORDER 1 OUT OUT IN IN RECORDER 2 RECORDER 2
AC IN AC IN R R
L L
R R
OFF OFF
SEPARATE SEPARATE
OUT OUT
IN IN
REMOTE REMOTE
CONTROL CONTROL SERIAL NO. SERIAL NO.
PHONO PHONO
ON ON
R L SYSTEM 1
SYSTEM 2
POWER ON/OFF
MF / HF
LF
MF / HF
LF
• Use a bi-wiring connection (pg. 3) for speakers.
• Set the SPEAKERS button 1 and button 2 on the front panel in the ON position.
Speaker Main-amplifier
To input jacks
To power outlet
Remove
shorting
bar. R CH
speaker Remove
shorting
bar. Remove
shorting
bar. L CH
speaker Remove
shorting
bar.
Speaker
Set to “OFF”
