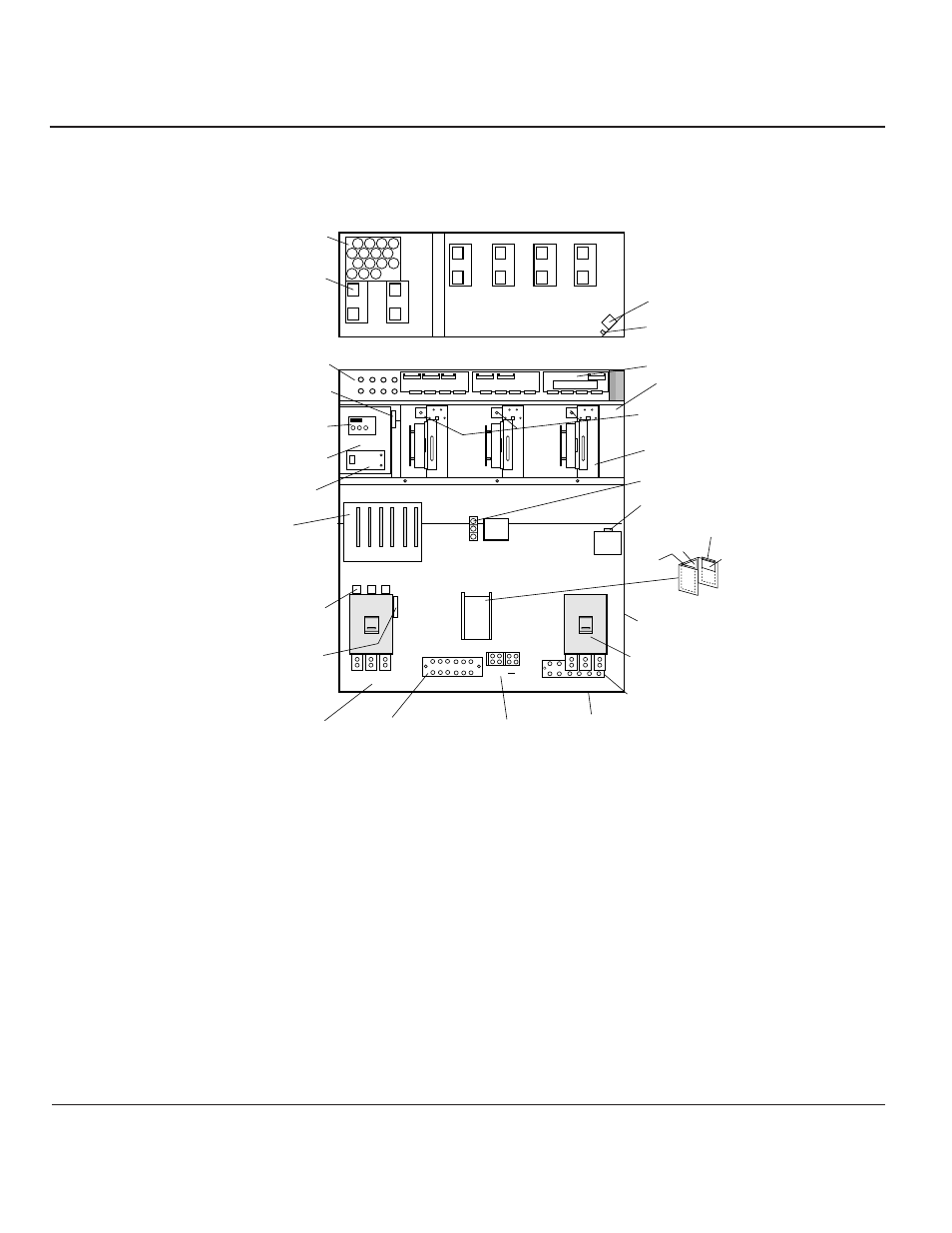

Figure E P S 6 0 0 0 M a j o r I n t e r n a l C o m p o n e n t s ,
2-10 S h a r e d 1 5 0 - 2 2 5 k VA U P S M o d u l e
FRONT VIEW, DOORS AND COVERS REMOVED
TOP VIEW, COVER REMOVED
INVERTERS
OUTPUT
CIRCUIT BREAKER
NEUTRAL CONNECTION
(BEHIND OUTPUT)
OUTPUT XFMR
(BEHIND BREAKERS)
RAUZ PCA DC CAPACITORS
OUTPUT FUSES F7, F8, F9
120V AC OUTLET
(FOR MGE USE ONLY)
(BEHIND EACH INVERTER)
OBEZ PCA
IBEZ PCA
FAN
TRANSFORMER
FB9
1- GTCZ PCA
2- SRIZ PCA
3- CRIZ PCA
4- CROZ / DO6Z PCA
5- AROZ PCA
6- ALEZ PCA
CARD CAGE:
ALBZ
CHARGER, STATIC SW,
INPUT
CONNECTIONS
GROUND
CONNECTIONS
BATTERY
CONNECTIONS
OUTPUT
CONNECTIONS
K3N
1
C3 B3 A3
BAIZ & TREZ
(BEHIND PLATE)
EPOZ
INPUT FUSES F1, F2, F3
FUSES F16, F17
F18, F19
FB1 TO FB8
F10,F11 RATED 2A,500VDC
F12,F13
AC CAPACITOR
ASSEMBLY
FANS
(x 6)
6 5 4 3
1 2
FB4 FB3 FB2 FB1
FB8 FB7 FB6 FB5
C4 B4 A4
+
2 3 4 5 6
INVERTER FUSES (BEHIND)
Q1 Q5N
ARUZ PCA (BEHIND MTG. PLATE)
ACPZ PCA
APOZ PCA
K3NZ PCA
