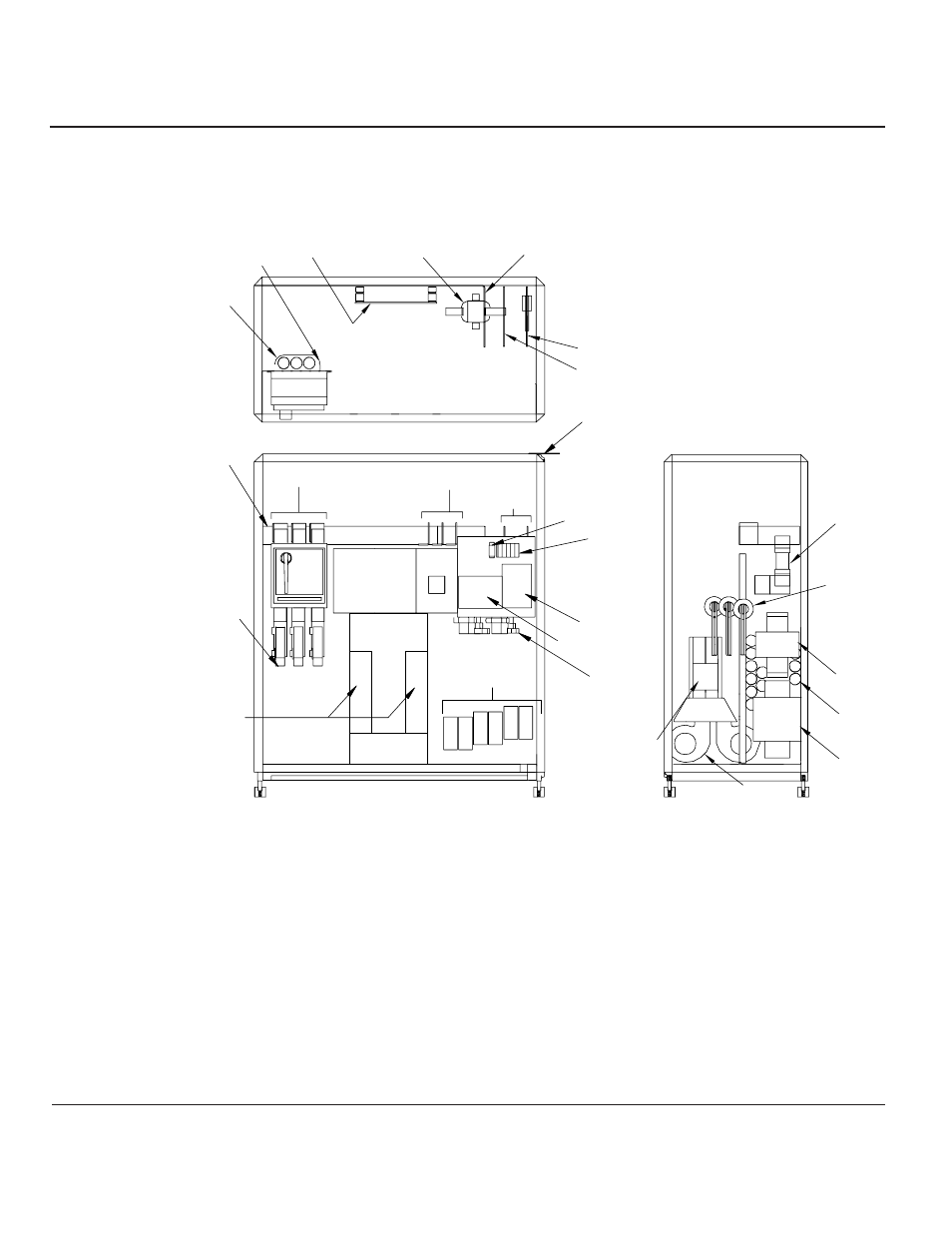

Figure E P S 6 0 0 0 M a j o r I n t e r n a l C o m p o n e n t s ,
1-7 S h a r e d 7 5 0 k VA U P S C a b i n e t 1
Ground
Capacitors
Connection
Power
Interconnect
CT (6ea)
ACPZ
ARUZ
Fuses
Relay
Battery
Connections
Output
Connections
Q5N
(optional)
Input
Connections
Bonding
jumper
Shunt
CT (4ea)
Induction Filter
(2 ea) one on
other side
AC capacitors
(2ea) one on
other side
Induction filter
(2ea) one on
other side
Cooling fans
(2ea)
BAIZ
Input fuses
F1, F2, F3
Input Filter
Capacitors
Resistors
Neutral
Connection
Choke
Ground
Connection
( - )
( + )
Front view, doors, cover and some components removed for clarity.
Static Switch
Q1
A3 B3 C3 A4 B4 C4 (+) (-)
Side View
Top view
