Pushbuttons
Following are brief descriptions of the function of the alphanumeric display
pushbuttons.

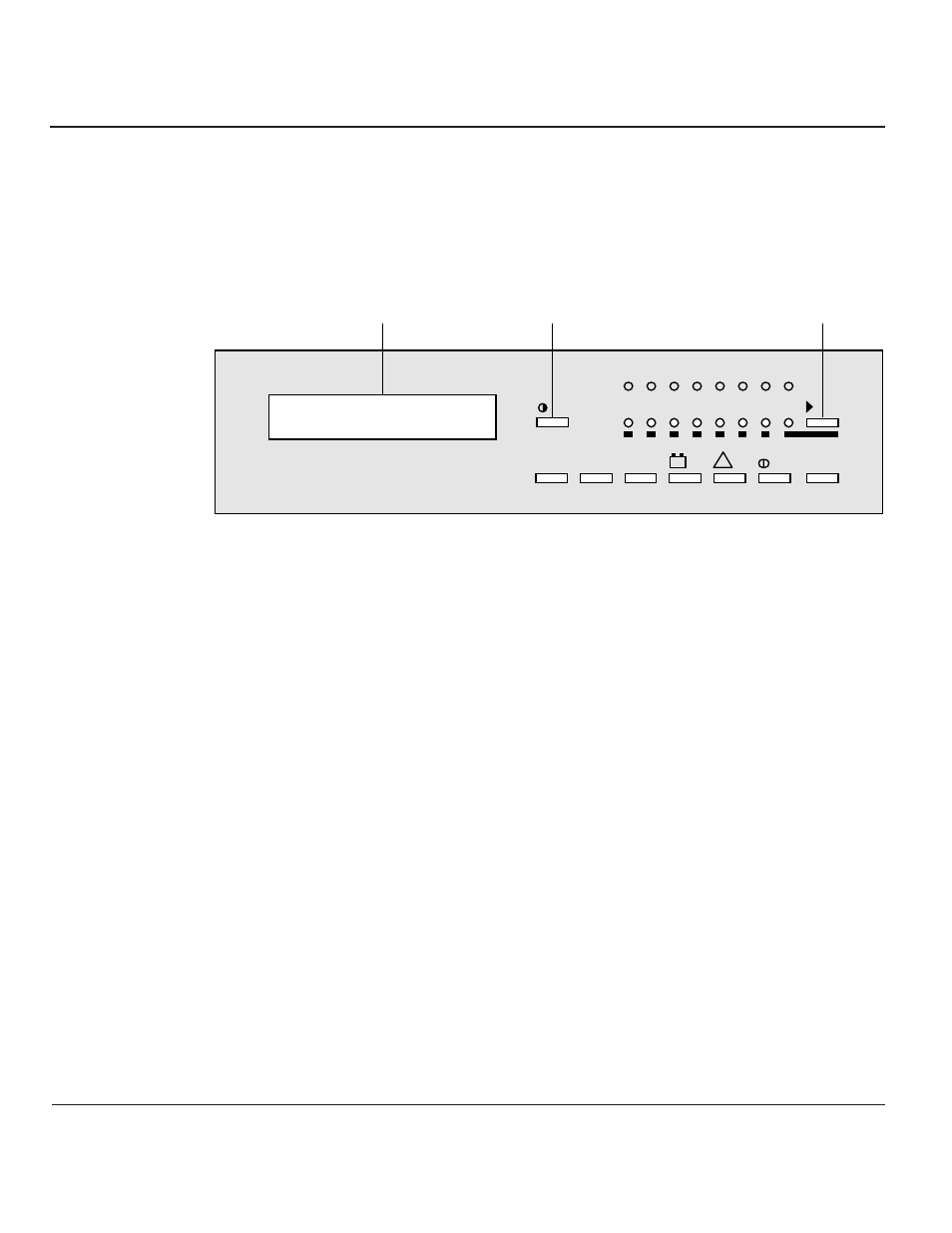

Figure A l p h a n u m e r i c D i s p l ay a n d C o n t ro l s
2-6
ø
Settings pushbutton
This pushbutton is used to select the display language and adjust the LCD screen
contrast for optimal viewing.
˘
Pushbutton
This pushbutton primarily allows the selection of which UPS module or SSC the
display communicates with; it may also serve to indicate selection, negative
response, and other functions, depending on the displayed message.
◊
Pushbutton
This pushbutton provides access to voltage measurements, including:
• Main AC input (mains 1) phase-to-phase voltage
• Bypass AC input (mains 2) phase-to-neutral and phase-to-phase voltage
• Inverter output phase-to-neutral and phase-to-phase voltage
• Load phase-to-neutral and phase-to-phase voltage
Å
Pushbutton
This pushbutton provides access to current measurements, including:
• Main AC input (mains 1) current
• Bypass AC input (mains 2) current
LCD
display
Settings
pushbutton
˘
pushbutton
8 7 6 5 4 3 2 1
+ – ! W.Hz A V
*
LOAD IS PROTECTED
UPS IS ON LINE
