Nº40 Media Console Rear Panel Operation
Audio Processor Rear Panel

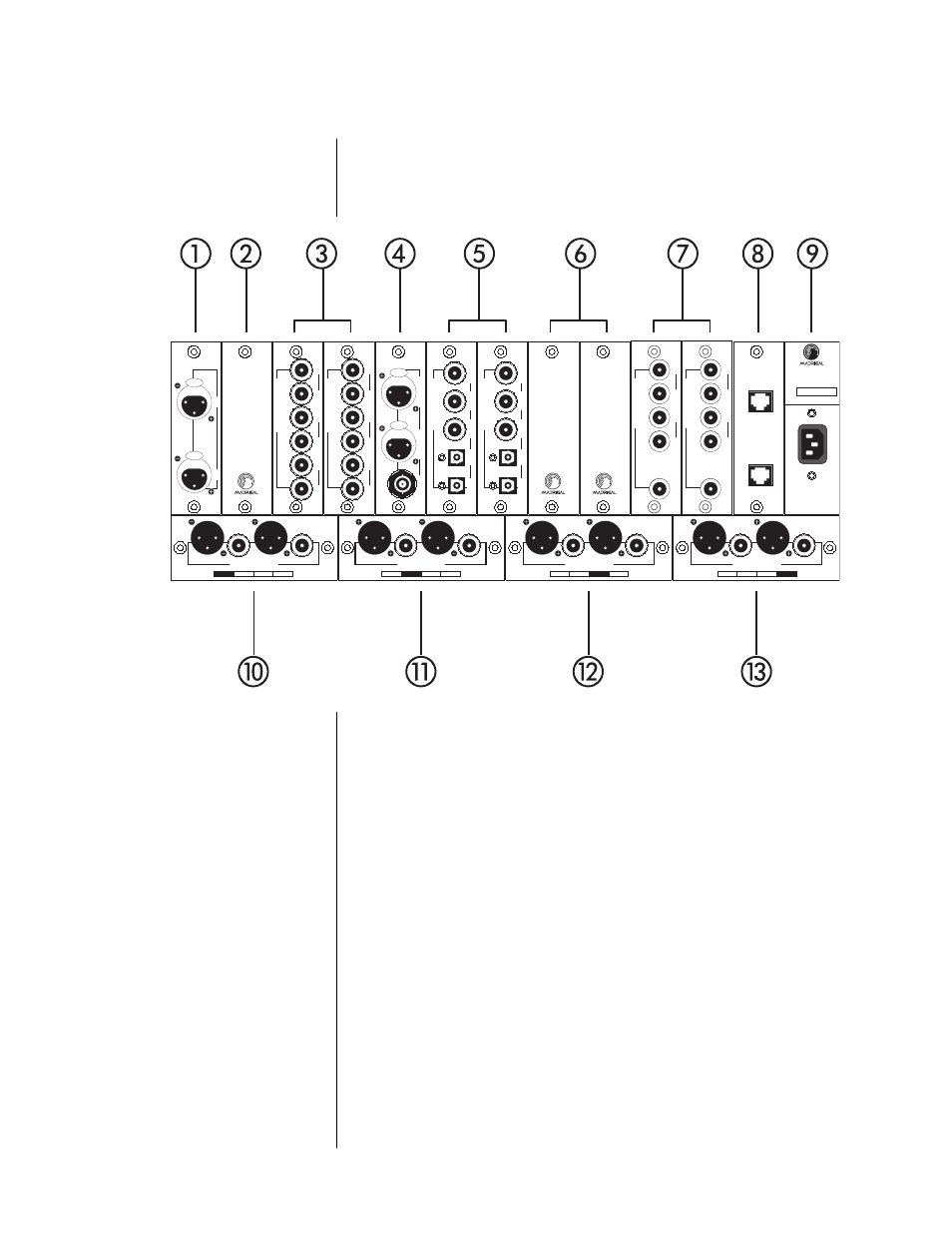

Figure 3-15: Audio Processor rear panel.
1. Balanced analog input (slot 1)
2. Audio input expansion (slot 2)
3. Single-ended analog inputs (slots 3 – 4)
4. AES/EBU and S/PDIF on BNC digital inputs (slot 5)
5. SPDIF on RCA and EIA-J digital inputs (slots 6 – 7)
6. Audio RZone expansion (slots 8 – 9)
7. Audio RZones 1 & 2 (slots 10 – 11)
8. Audio processing and system communications (slot 12)
9. IEC power input and serial number label
10. Front left and front right main analog outputs (slot A)
11. Center and subwoofer main analog outputs (slot B)
12. Surround left rear and surround right rear analog outputs
(slot C)
