Practical hints

Replacing bulbs

High beam halogen bulb (vehicles with
halogen bulbs: high beam and high
beam flasher; vehicles with Xenon*
headlamps: high beam flasher only)

̈

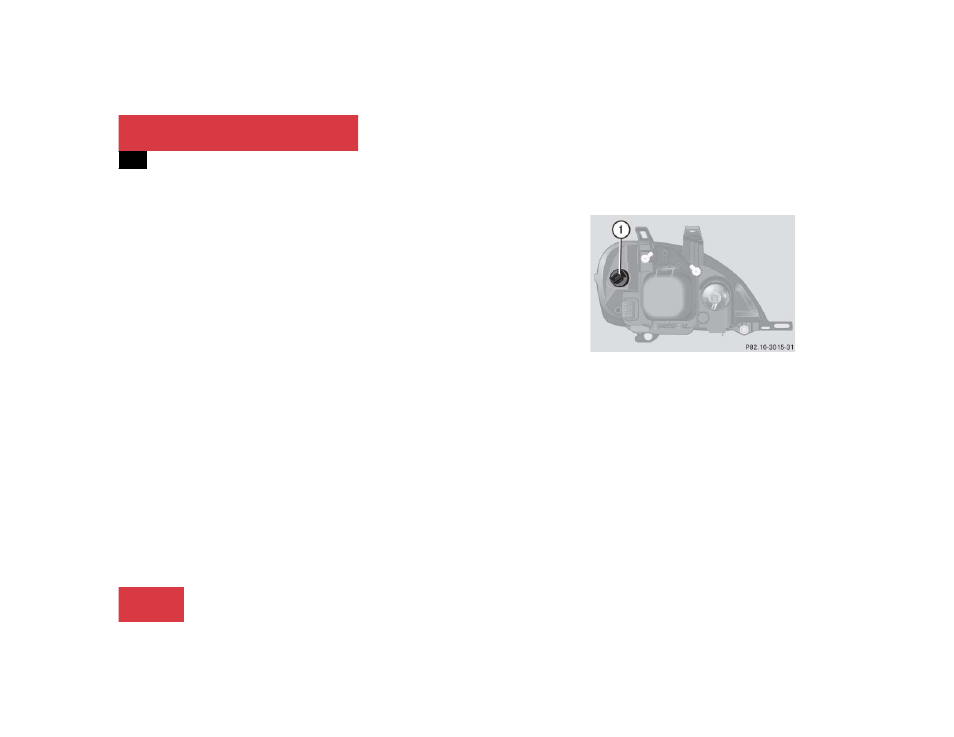

Turn housing cover 1 counterclock-
wise and remove it.

̈

Pull electrical connector 2 off.

̈

Unclip the retainer spring on the bulb
socket and take out the bulb.

̈

Insert the new bulb so that its socket
locates in the recess of the lamp hous-
ing.

̈

Clip on the retainer spring.

̈

Plug electrical connector 2 onto the
bulb.

̈

Align housing cover 1 and turn it
clockwise.

Parking/standing lamp bulb

̈

Turn housing cover 1 counterclock-
wise and remove it.

̈

Pull out bulb socket 3 with the bulb.

̈

Press gently onto the bulb and turn
counterclockwise out of bulb
socket 3.

̈

Press the new bulb gently into bulb
socket 3 and turn clockwise until it
engages.

̈

Press bulb socket 3 back into the
lamp.

̈

Align housing cover 1 and turn it
clockwise.

Turn signal bulb/side marker bulb

1 Bulb socket

̈

Twist bulb socket 1 counterclockwise
and pull out.

̈

Push bulb into socket, turn counter-
clockwise and remove.

̈

Insert new bulb in socket, push in and
twist clockwise.

̈

Reinstall the bulb socket 1.
