3. Polarizer
Setting the polarizer values
In some satellite aerials, horizontal (H) and vertical (V) polarization of the LNC is selected by means of a magnetic polarizer.
With this type of aerial, up to 5 current values (polarizer 1..5) are sent via the polarizer socket (on the back of the TV set) to the magnetic
polarizer, which then sets the appropriate polarization.
You can set 5 global polarizer values, which can then be assigned individually to the various program positions in the submenu „Aerial
control“.
Press this key on the remote
control

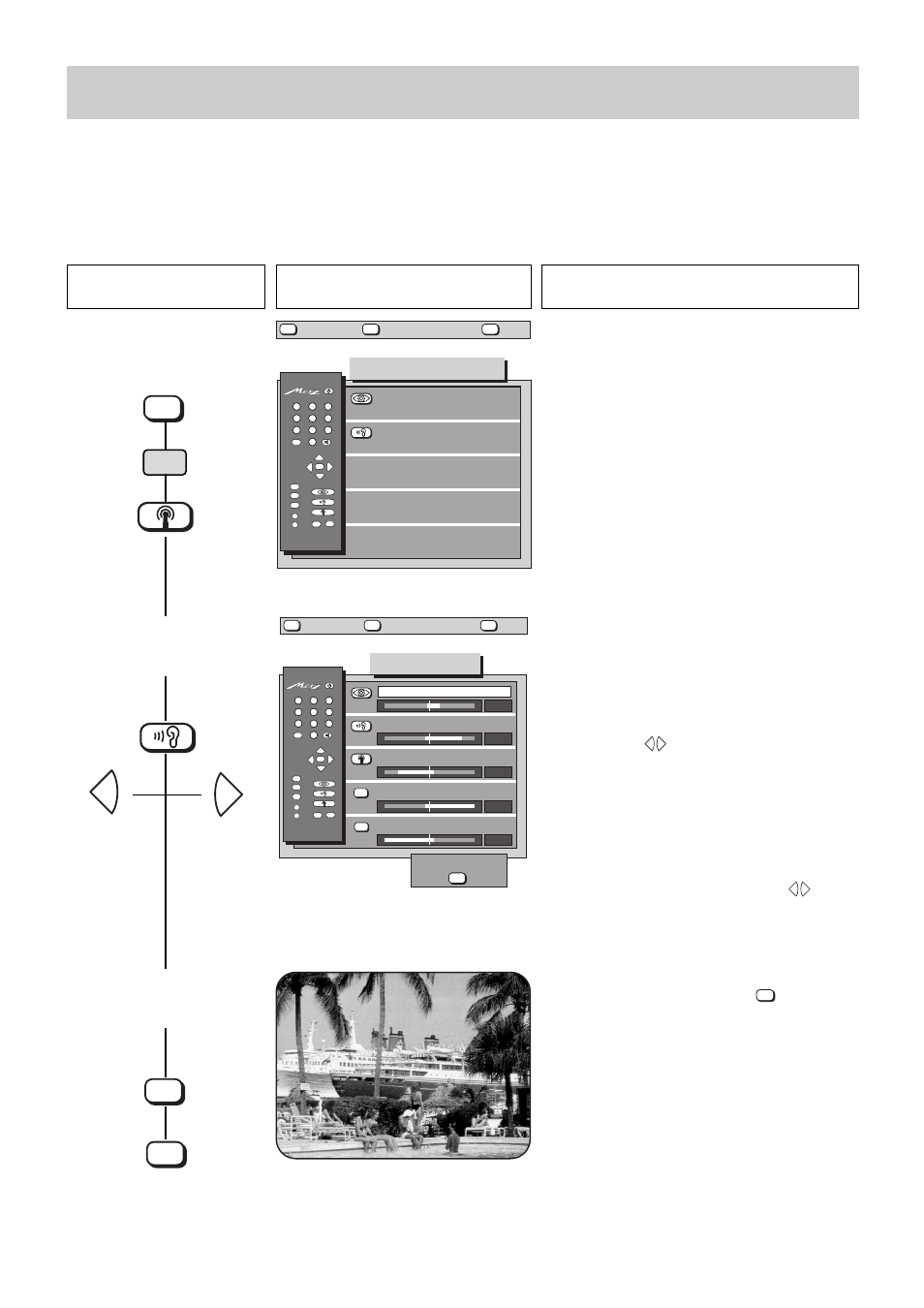

The screen displays Explanation
1. Call the menu „SAT set-
tings“
2. Call the menu „Polarizer“
and set polarizer 1
3. Store the polarizer setting
and return to the TV picture
LNC pwr supply
Polarizer
OK
P + + -
AV
--/-
- P
1 2 3
4 5 6
7 8 9
0
A
B
TV
?
MENU
SAT settings
6 9 6 + S 0 3 A - G B
? MENU return Help TV TV picture
AV
OK
P + + -
AV
--/-
- P
1 2 3
4 5 6
7 8 9
0
A
B
TV
?
MENU
Polarizer
6 9 6 + S 0 3 B - S - G B
1 5 - +
7 0 - +
- 7 0 - +
9 9 - +
- 9 9 - +
Polarizer 1
Polarizer 2
Polarizer 3
Polarizer 4
Polarizer 5
? MENU return Help TV TV picture
store ?
OK
These settings can be carried out only on SAT program
positions and should be made only if your SAT aerial
has a magnetic polarizer.
The polarizer settings can be used to select H or V
polarization.
The polarization angle can be adjusted to match the
satellite with the
keys.
The polarization angle can be adjusted in individual
steps in the ranges 0 to +99 and 0 to -99. The received
TV picture is visible behind the menu display.
Adjust the polarizer setting until the received picture is
free of interferences.
Polarizers 2 to 5 can be selected with the colored keys
and adjusted as described above with the
keys.
+ -
+ -
When the TV picture is free of interference, the polarizer
setting can be stored by pressing the
key.
One of the five polarizer settings set in this menu can
be selected for each SAT program position. This is
done in the submenu „Aerial control“ of the SAT pro-
gram positions in the station table - see section 4 of
these instructions.
OK
MENU
+ -
OK
TV
red
