Metz 1014 083 - Manual (Page 11)

Press this key on the remote
control

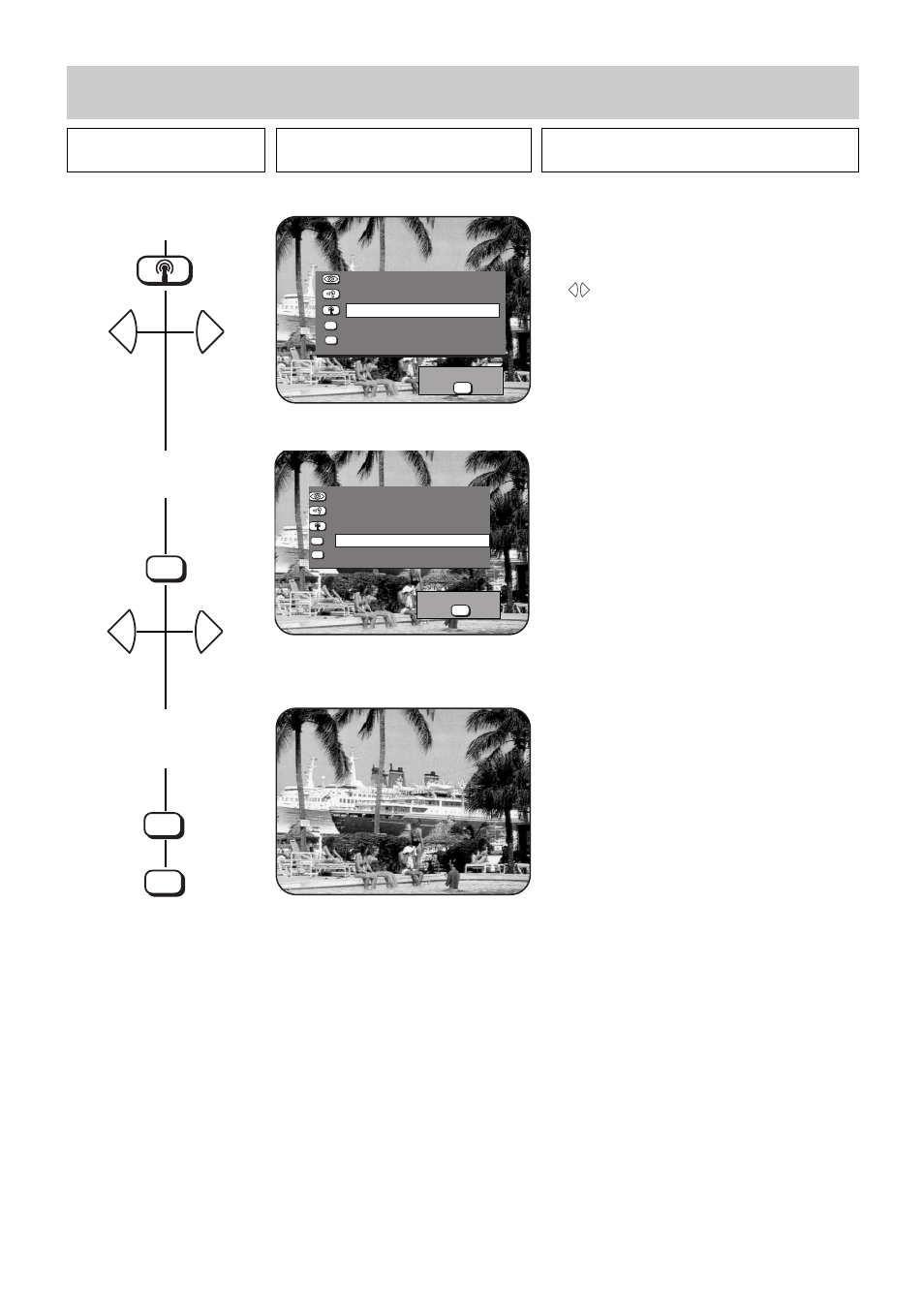

The screen displays Explanation
The relay can be used to send a control voltage of
approximately 12 V („On“) or not („Off“).
This setting can be made individually for each program
position.
11
4. Set the polarizer
5. Set the relay control voltage
6. Store the settings and
return to the TV picture
LNC pwr supply: H
22 kHz signal: On/Off
Polarizer: 1
Relay: On/Off
AFC: On/Off
AV
6 9 6 + S 0 4 E - G B
Pressing the white key causes the text Polarizer to be
displayed on a white background to indicate that it is
active.
One of the five polarizer settings (see section 3 of the-
se operating instructions) can now be selected with
the keys.
+ -
- +
- +
4. Aerial Control
Assigning LNC or polarizer values
AV
OK
TV
LNC pwr supply: H
22 kHz signal: On/Off
Polarizer: 2
Relay: On/Off
AFC: On/Off AV
6 9 6 + S 0 4 D - G B
store ?
OK
696 S00 ˇ ˇ
store ?
OK
696+S00 ˇ ˇ
