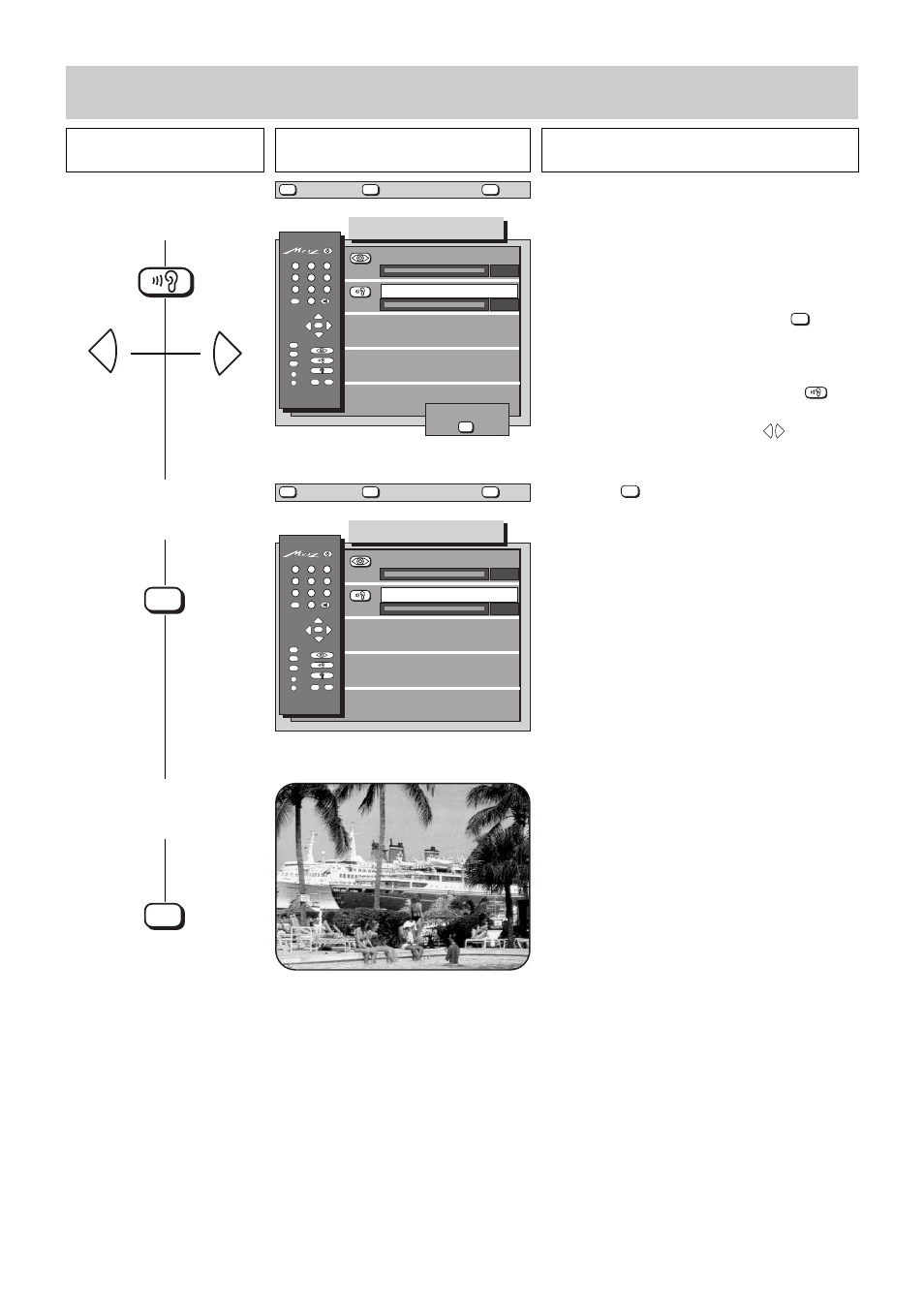

The supply voltage for the SAT aerial can be set to Off
or to a voltage in the range of 12 V to 19 V. When the
correct voltage is set, the picture from the SAT station
being received on this program position appears
behind the menu display.
Whenever the voltage setting is changed, a red box
appears at the bottom right of the screen. When you
have set the correct voltage, press the
key to
store it.
One of these two voltages can subsequently be assigned
to each SAT program position. To do this, call the station
table, open the menu „Channel“ with the
key
and then, in the submenu „Aerial control“, select the
LNC supply voltage H or V with the
keys . See
section 4 of these instructions.
+
-
OK
Pressing the
key stores the values you have set.
OK
2. LNC Power Supply
Setting the LNC voltages
+
-
OK
