Dynamic Range
>107 dB (Mic In to Line Out)
Noise
Signal-to-Noise:
>87 dB (ref. +4 dBu, Mic In to Line Out, Gain @ unity)
Equivalent Input Noise (E.I.N.), 20 Hz to 20 kHz Bandwidth,
150Ω source impedance:
–129 dBu @ +60 dB gain
Common Mode Rejection Ratio (CMRR)
Mic In: >60 dB @ 1 kHz, Gain @ maximum
Crosstalk
Mic Input to Line Output:
< –100 dB @ 1 kHz, +10 dBu signal on adjacent
input, 150Ω source impedance
Input Gain Control Range
Mic In: 0 dB to +60 dB
Line In: –20 dB to + 40 dB
Appendix C: Technical Info
Onyx 400F Specifi cations
Frequency Response
Mic Input to Line Output (Gain @ unity):
@48 kHz
+0, –3 dB, 10 Hz to 24 kHz
@96 kHz
+0, –3 dB, 10 Hz to 48 kHz
@192 kHz
+0, –3 dB, 10 Hz to 96 kHz
Mic Input to Digital Output (S/PDIF, 192 kHz sample rate):
+0, –3 dB, 10 Hz to 96 kHz
Distortion (THD & IMD)
Mic Input to Line Output (@ +4 dBu output):
THD+N: < 0.003%, 20 Hz to 20 kHz BW,
1 kHz input @ +4 dBu, preamp at unity gain
Mic Input to Digital Output (S/PDIF, 48 kHz sample rate):
THD+N: < 0.001%, 20 Hz to 20 kHz BW,
10mV rms input, gain at –1 dB FS output
FireWire Connection
The Onyx 400F is equipped with two 6-pin FireWire
connectors and comes with a 6-pin to 6-pin FireWire
cable. This works with Macintosh laptops and desktops,
and most PC desktops with a built-in FireWire connec-
tor or with a PCI or PCMCIA FireWire card added.
Many laptop PCs have a 4-pin FireWire connector. If
this is the case, you will need to purchase a 6-pin to 4-
pin FireWire adapter cable. These are readily available
at computer stores or online.

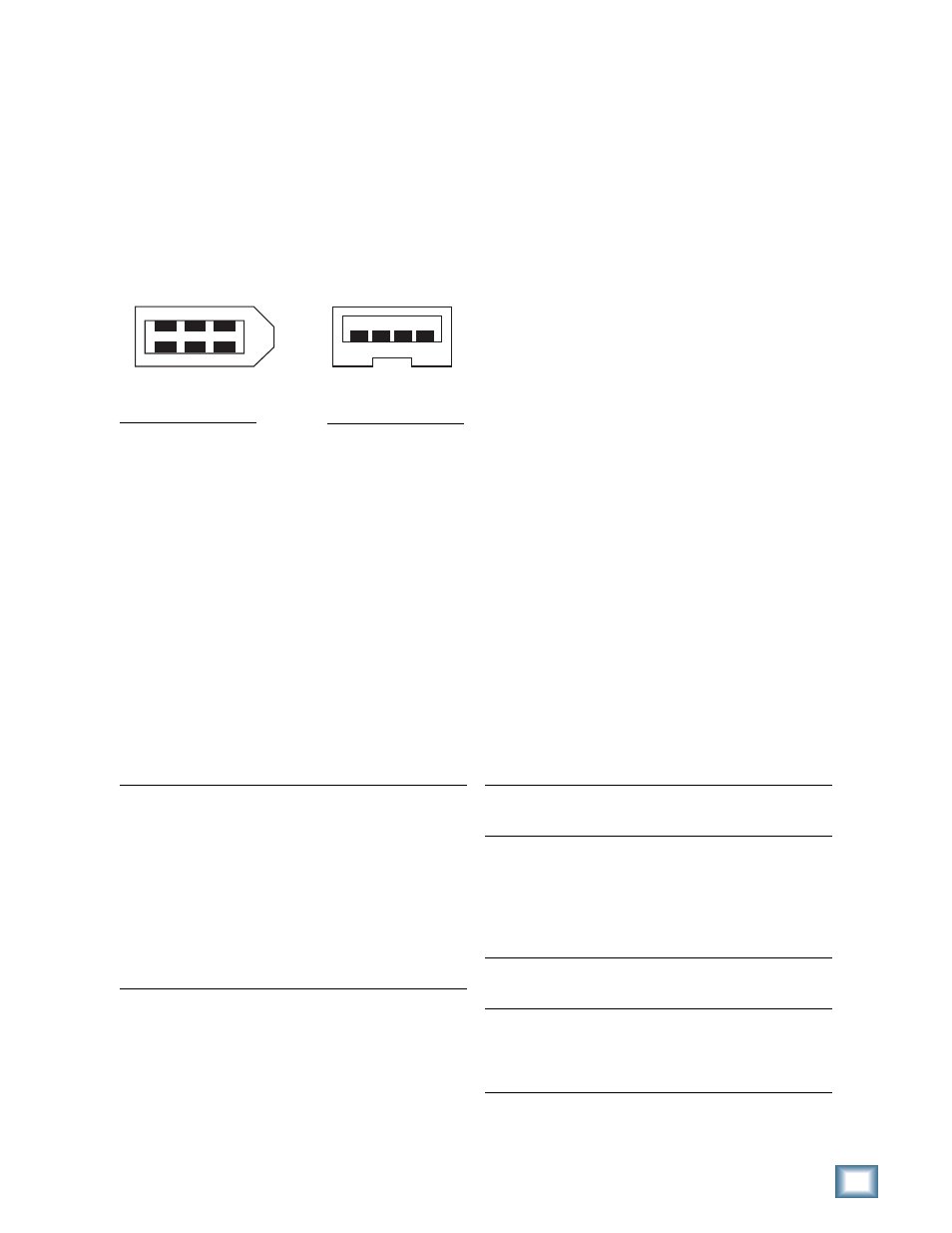

2 4 6
1 3 5
6-pin Male FireWire
1 2 3 4
4-pin Male FireWire
6-pin FireWire Wiring:
Pin 1 = Power
Pin 2 = Ground
Pin 3 = TPB–
Pin 4 = TPB+
Pin 5 = TPA–
Pin 6 = TPA+ 4-pin FireWire Wiring:
Pin 1 = TPB–
Pin 2 = TPB+
Pin 3 = TPA–
Pin 4 = TPA+
