72
MultiFRAD 3000-Series User Guide
Appendix A - Cabling Diagrams

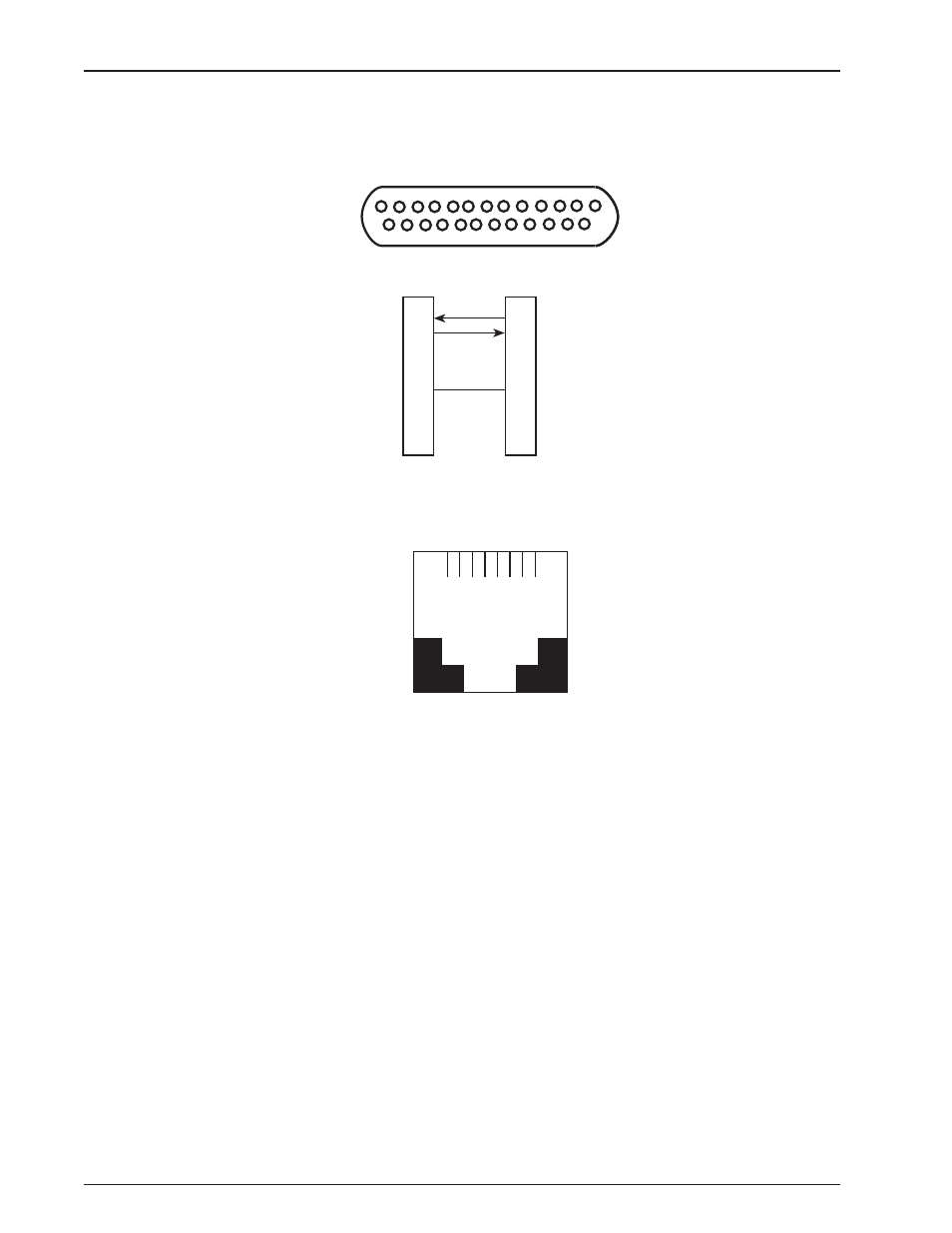

Command Port Cable
13 12 11 10 9 8 7 6 5 4 3 2 1
25 24 23 22 21 20 19 18 17 16 15 14
PIN NO.
1
2
3
4
5
6
7
8
20
22
25
1
2
3
4
5
6
7
8
20
22
25
To
DTE
Device
(Terminal
Device
i.e. ASCII
Terminal)
TRANSMIT DATA (BA)
RECEIVE DATA (BB)
SIGNAL GROUND (AB)
PIN NO.
To COMMAND PORT
Connector
LAN Cables
1 2 3 4 5 6 7 8
10BASE-T
10Base-T (RJ-45)
Pin
Circuit Signal Name
1 TD+ Data Transmit Positive
2 TD- Data Transmit Negative
3 RD+ Data Receive Positive
4 RD- Data Receive Negative
