8
Assembly Instructions

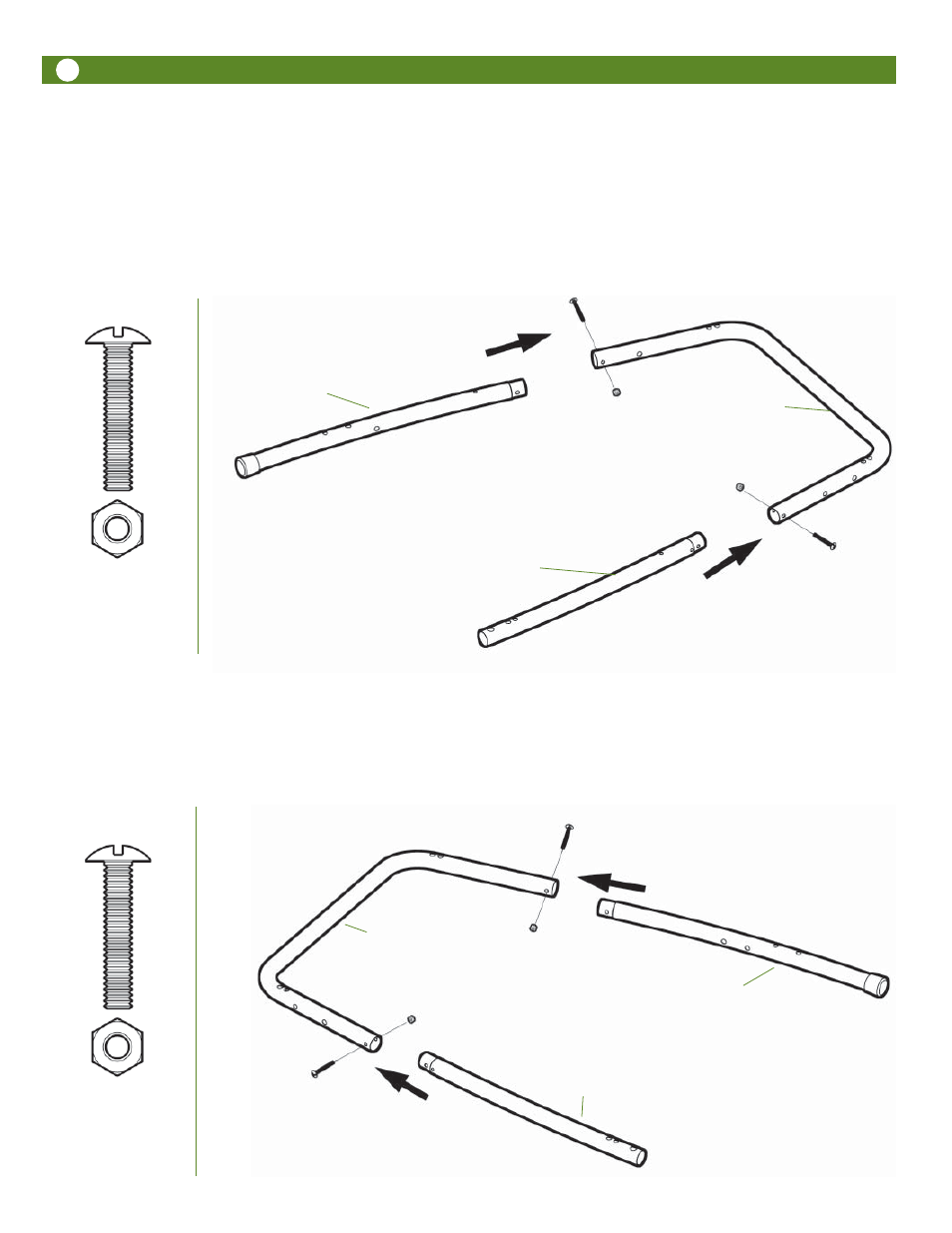

Step 1
Front Leg Frame Assembly
Identify parts and lay on floor as shown. Parts are named for their assembled position on the grill. Note in illustrations,
holes with threaded inserts are oriented facing up, as well as to the center. Insert Right and Left Front Legs into the
ends of the Front U-Leg. Fasten in place with 2) 1/4-20 x 1.50” bolts and 1/4-20 nuts. Do NOT tighten completely at
this stage.
Step 2
Rear Leg Frame Assembly
Identify parts and lay on floor as shown. Parts are named for their assembled position on the grill. Note in illustrations,
holes with threaded inserts are oriented facing up, as well as to the center. Insert Right and Left Rear Legs into the
ends of the Rear U-Leg. Fasten in place with 2) 1/4-20 x 1.50” bolts and 1/4-20 nuts. Do NOT tighten completely at
this stage.
1/4-20 x 1.50” Bolt
and Nut
2 pc Each
1/4-20 x 1.50” Bolt
and Nut
2 pc Each
Right Front Leg
Left Front Leg
Front U-Leg
Left Rear Leg
Right Rear Leg
Rear U-Leg
