Meco 6623S8E641 - Manual (Page 19)

19

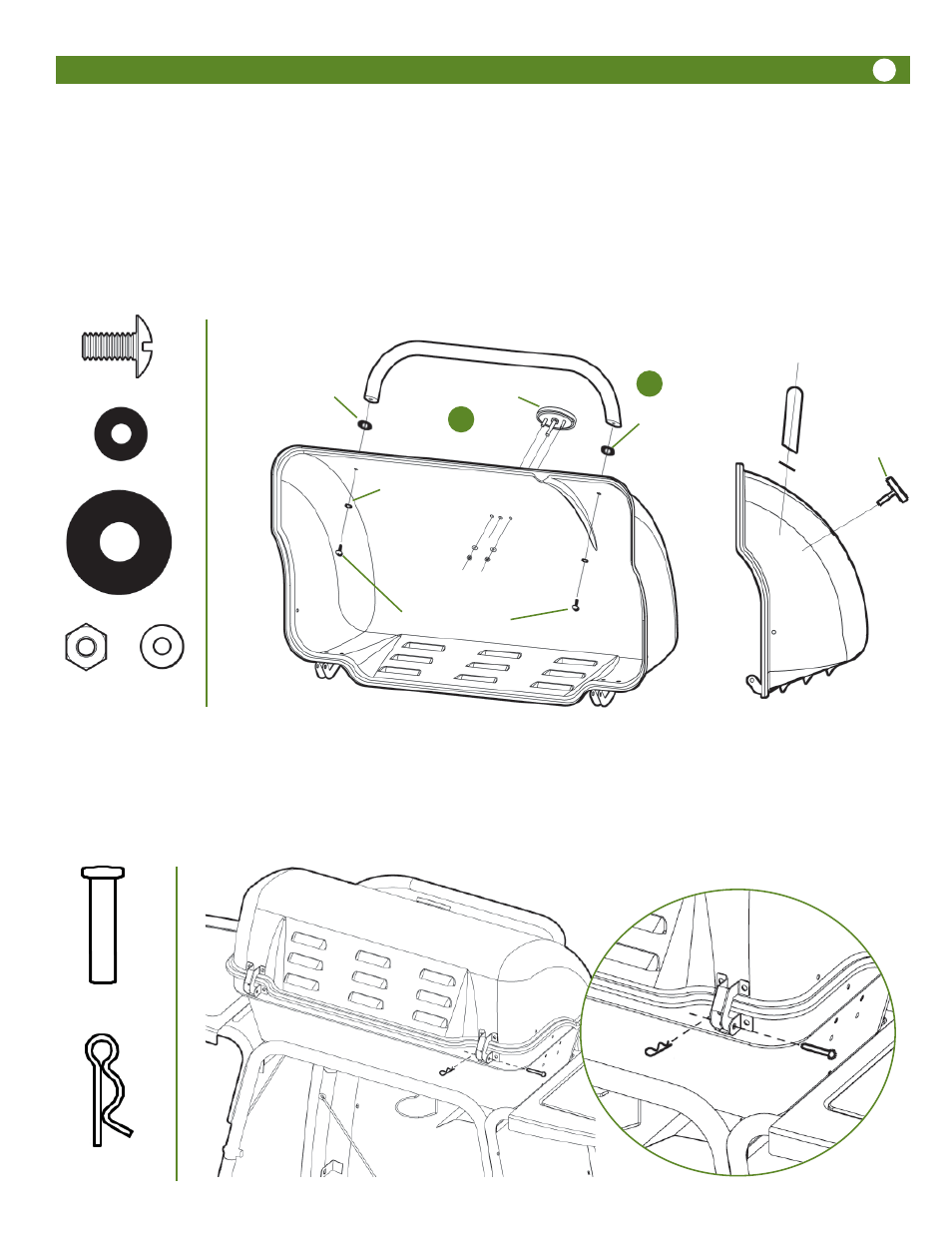

Step 20
A. Hood Handle
Attach the Hood Handle to the Hood with 2) 1/4-20 x .39” Bolts and Fiber Washers. Place Heat Baffles between the
Handle and the Hood. Align Handle as shown in side view.
B. Thermometer Assembly (Model 6623S8Y641 ONLY)
Attach the Thermometer by inserting the sensor rod and threaded studs through the Hood. Be sure the graphics are
oriented correctly when the hood is in the closed position. Fasten in place with 2) M5 Nuts and Washers.
1/4-20 x .39” Bolt - 2 pc
Fiber Washer - 2 pc
Step 21
Hood/Hinge Assembly
Place Hood on Bowl and align hinges. Hood hinge legs insert between Bowl hinge legs. Install Hood Hinge Axle
through holes in hinge legs, inserting towards the center of the grill. Fasten in place by inserting Axle Pin through small
hole in Axle. Repeat for other Hinge.
Hood Hinge Axle
2 pc
Axle Pin
2 pc
Thermal Baffle - 2 pc
M5 Nut and Washer
2 pcs each
1/4-20 x .39” Bolt
Fiber Washer
Thermometer
(6623S8Y641 ONLY)
Side View
Thermal Baffle
M5 Nuts and Washers
Thermal Baffle
Thermometer
(6623S8Y641)
A
B
