Location of Controls
ACTIVE A/V NETWORK
CONVERTER
BOX CONTROL
IN OUT
ANTENNA
OUT
IN
VIDEO
VIDEO
AUDIO R L/MONO S-VIDEO
S-VIDEO
TIMER RESET
IN 1
OUT
AUDIO R L

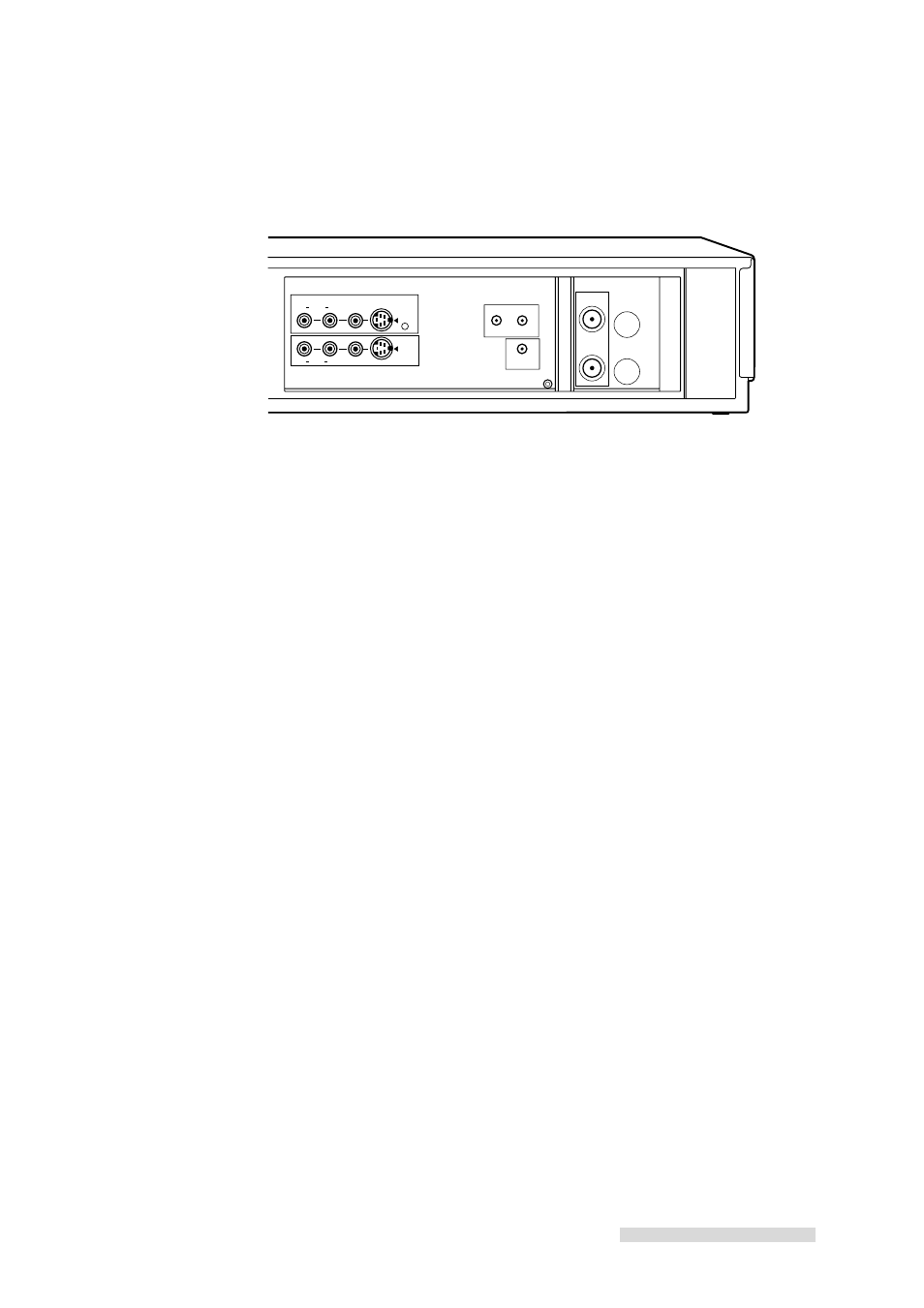

Rear Panel Jacks
VIDEO INput and OUTput jacks
Yellow jacks for receiving (IN) and sending (OUT) video
signals to a monitor TV or from another VCR.
The black jacks marked with “S-Video” can be used to
connect televisions with S-Video jacks. (“S-Video jack”
refers to a Separated Luminance-Chrominance (Y/C)
jacks that conforms to the NTSC signal.)
AUDIO INput and OUTput jacks
Red and white jacks for receiving (IN) and sending (OUT)
audio signals. Red signifies the right channel, and white
signifies the left channel. Stereo audio cables are also
color coded red and white. If you are receiving or
sending a mono (non-stereo) signal, you should use only
the left (white) terminal.
ACTIVE A/V NETWORK jacks
Connects the VCR to other Mitsubishi products with
Active A/V Network or A/V Network jacks.
CONVERTER BOX CONTROL jack
Connects IR Emitter to a cable box and/or satellite
receiver.
TIMER RESET
Erases all programmed recording settings and resets the
clock. Use this button with care.
ANTENNA IN jack
Attach an external antenna or cable to bring in an outside
signal.
ANTENNA OUT jack
Attach a coaxial cable to your TV to send out antenna/
cable signals from the VCR to your TV.
