Page 10
8
3
Connect an S-video cable to the MONITOR S-VIDEO
OUTPUT of the Home Theater Receiver. Connect the
other end to the S-VIDEO INPUT on the back of the
TV.
IMPORTANT
IMPORTANT
If either your Home Theater Receiver or TV does
not have S-Video connections, use standard yellow
video cables in step 2 and 3.
4
See your Home Theater Receiver Owner’s Guide for
information concerning audio connection between
TV and Home Theater Receiver, or additional
hookups and operations.
IMPORTANT
IMPORTANT
You may need to purchase additional sets of audio
video cables for this hookup.

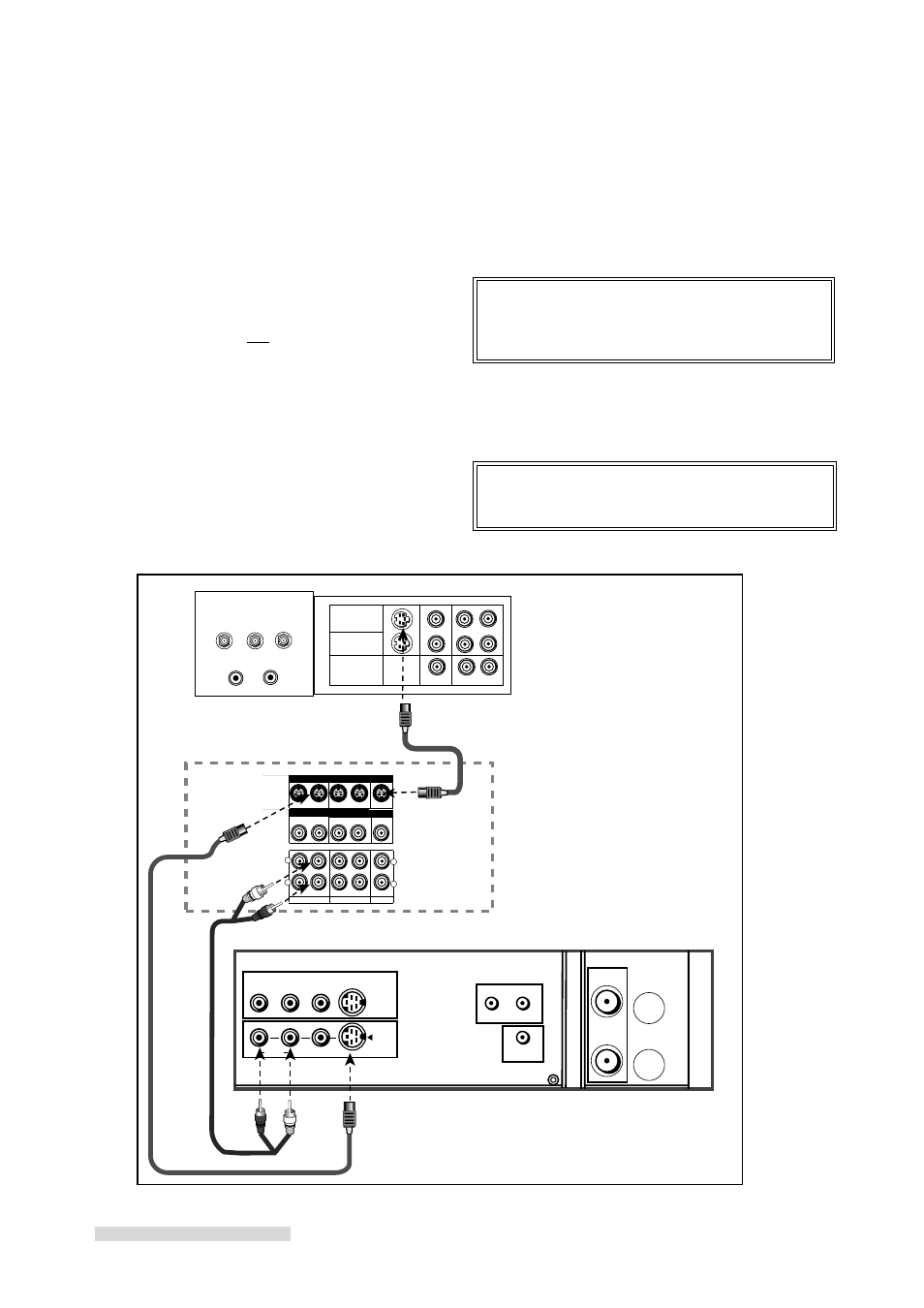

Connections to Home Theater Receiver
INPUT 1
S-VIDEO
VIDEO
L (MONO)
R
AUDIO
S - VIDEO
R
VCR 1
VCR 2
TV
AUDIO
OUT
IN
OUT
IN
IN
VCR2
MONITOR
VCR 1
OUT
IN
OUT
IN
OUT
VCR2
MONITOR
DVD
VCR 1
OUT
IN
OUT
IN
OUT
VIDEO
L
R
L
R
VIDEO
S-VIDEO
OUT
AUDIO
R
L
R
L
L
R
TV Rear Panel
VCR Rear Panel
Home Theater Receiver Rear Panel
White
Red
White
Red
You may wish to connect your VCR to a Home Theater
Receiver so that you can take advantage of the Surround
Sound audio recordings that are common with many
movies. Home Theater Receivers often will control both
the sound that is heard from the speakers and the picture
shown on your TV. Below is the basic connection
between your VCR and Home Theater Receiver. If you
use this connection, you will not use Connections to
TV with Audio Video Inputs.
1
Connect the red and white audio cables to AUDIO
OUT R and AUDIO OUT L on the VCR. Connect
the other end to the VCR 1 AUDIO INPUT R and
AUDIO INPUT L on the Home Theater Receiver.
2
Connect an S-video cable to S-VIDEO OUT on the
VCR. Connect the other end to the VCR 1 S-VIDEO
INPUT on the Home Theater Receiver.
Hooking Up Your VCR
