Location of Controls
OTR light : OTR
Lights up during recording the program with One-Touch
Recording.
OTR 2 light : OTR 2
Lights up during setting up, the delay time of Standby
One-Touch Recording.
LR indicator : L R
L indicates that you are listening to the left channel of a
stereo track, R indicates that you are listening to the right
channel of a stereo track.
tape speed lights : SP, EP
Indicates tape speed.
SP is standard play; EP is extended play.
stereo indicator : ST
Indicates a stereo TV channel.
VCR light : VCR
Indicates that the picture is controlled by the VCR.
PerfecTape ® light : PT
Flashes when PerfecTape test is in progress.
Stays lit when test is complete.
SAP indicator : SAP
Indicates that channel has a Separate Audio Program, or
SAP.
S-VHS indicator :
Lights up when the S-VHS tape or no tape is loaded and
the S-VHS record is set to AUTO, when you play or
record in Super-VHS (S-VHS).
S-ET indicator : S-ET
Lights up when the VHS tape is loaded and the S-ET
record is set to ON, and when you play or record in S-
ET mode.
digital tracking
time counter/current time/remaining time display channel display
play light
record light
AM PM
SAP ST D
OTR 2 SP
EP
LOCK
VCR
PT
CH
S-ET
PROG REC
PLAY
M S H
L R
REC

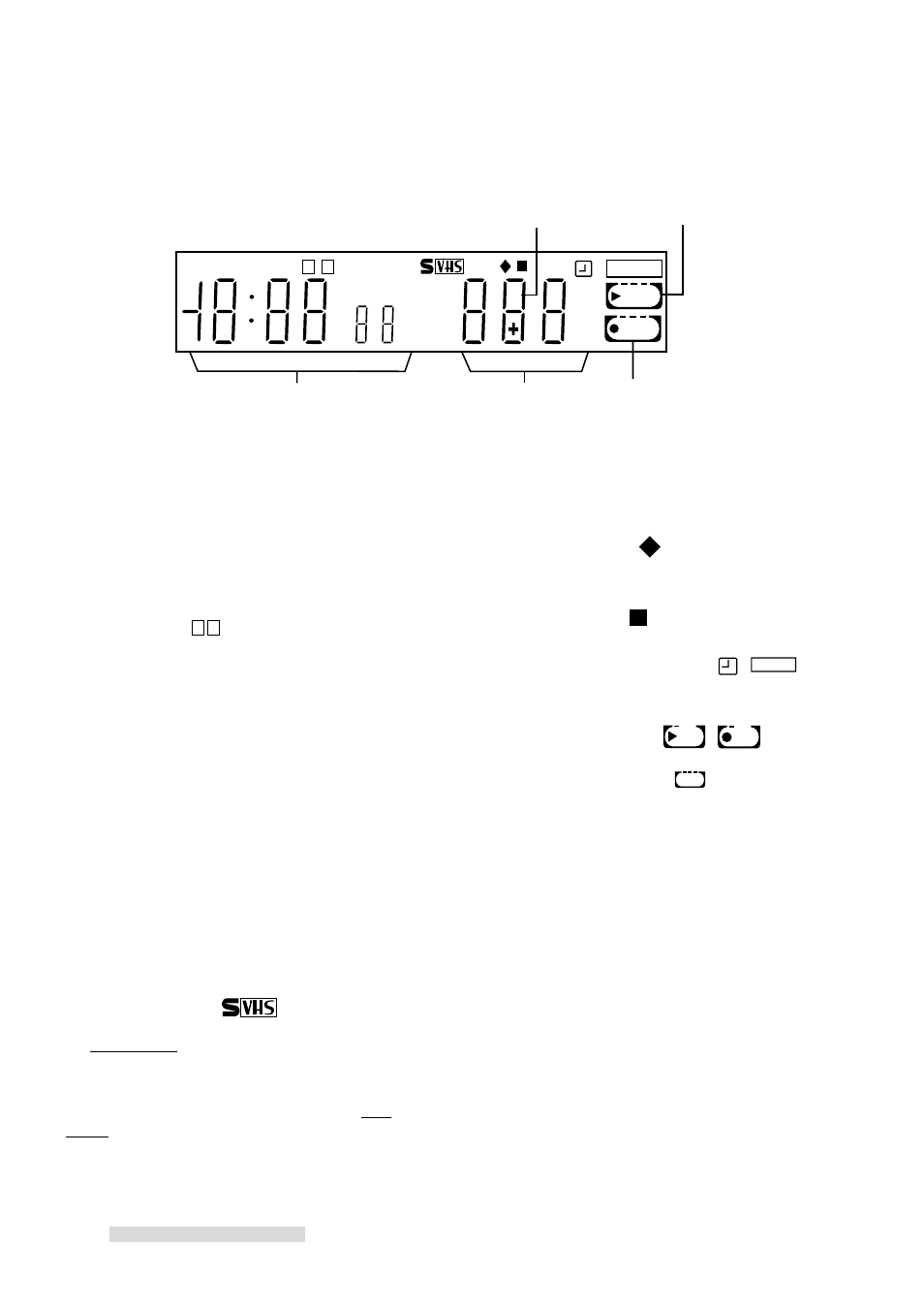

Front Panel Display
lock light : LOCK
Lights up when Child Lock feature is in use.
PRIMESTAR ® light :
Lights up when VCR has selected channels from a
PRIMESTAR receiver.
cable tuning light :
Lights up when VCR is set to receive cable broadcasts.
programmed recording light :
PROG REC
Lights up when VCR is off and it is programmed to
record.
play and record lights : PLAY REC
These light up when the VCR is playing a tape or record-
ing. The cassette status symbol (
) will light up when a
tape is in the VCR. The dashes in the center of the
symbol simulate the movement of the tape when playing
and recording.
time counter/current time/remaining time
display
This area displays:
• current time
• time counter showing how long tape has run
• time remaining on the tape
channel display
Displays cable channel, broadcast channel, satellite channel,
or input.
digital tracking light : D
Flashes when VCR is adjusting the tracking.
Glows steadily when tracking is finished.
If tracking is adjusted manually, it turns off.
