Before Connecting the Dynamo

6 Connections and Control Settings

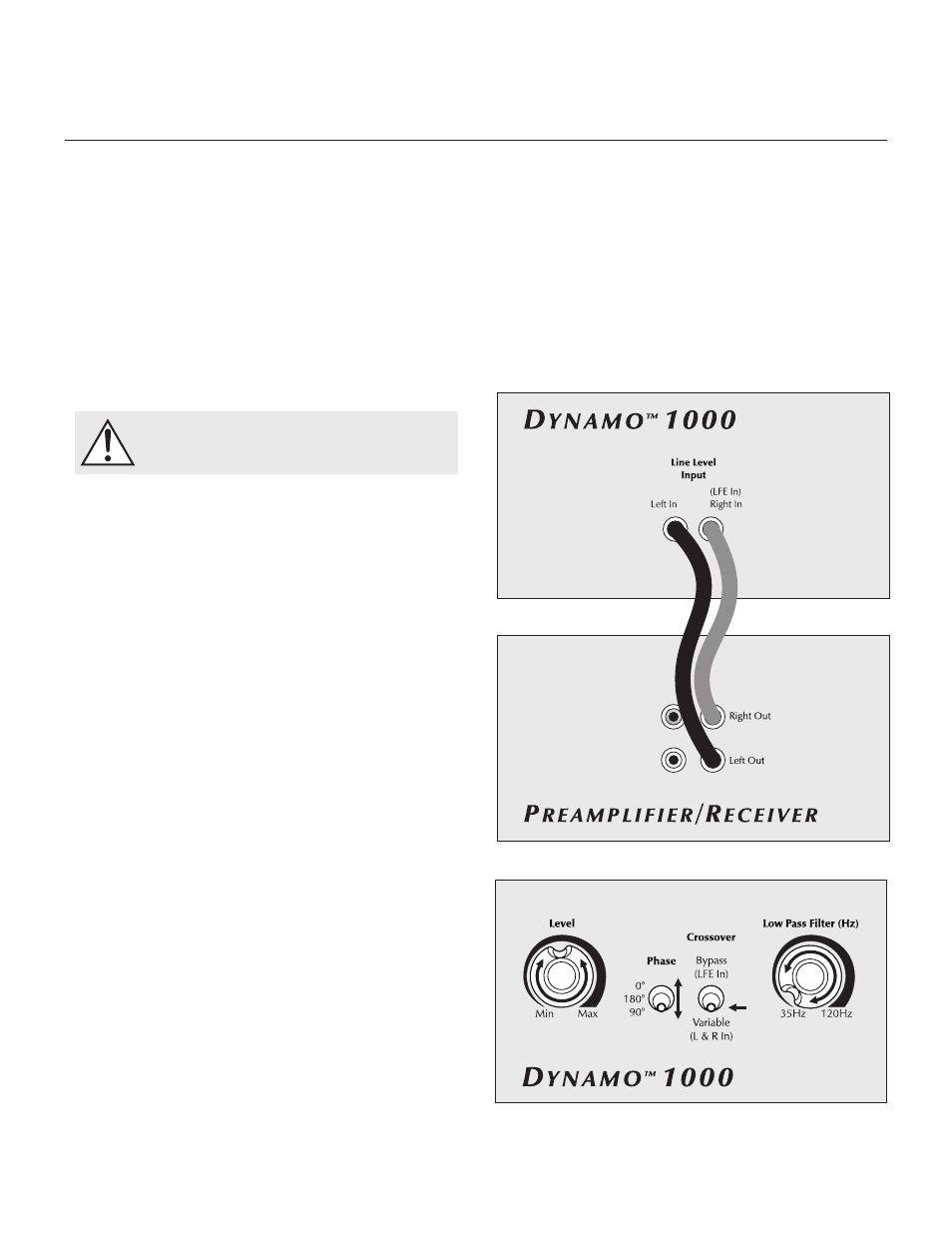

Figure 2.

Signal connection for 2-channel mode.

Figure 3.

Control settings for 2-channel mode.

MartinLogan's engineering and design team developed

the Dynamo 1000 for easy setup and system integra-

tion. Before beginning to connect your Dynamo 1000,

please review the controls discussed in the last section.

An understanding of these will help speed you along as

you connect and integrate your Dynamo 1000 with your

system. All signal connections are done on the rear con-

nections panel of the Dynamo 1000. Make certain that

all of your connections are tight.

WARNING!

Turn your Dynamo 1000

subwoofer to 'Off' before making or

breaking any signal connections!

2-Channel Mode

This setup is recommended if your Dynamo 1000 will be

used in a 2-channel system with main speakers playing

full range. When a signal is connected to the Dynamo

1000’s left/right inputs and the crossover switch is set to

'Variable (L&R In), the Dynamo 1000’s internal low pass

filter is active.

If you will be using your system for both 2-channel and

multi-channel listening we recommend connecting the

Dynamo 1000 as recommended in 'Multi-Channel/LFE

Mode' on the next page. Some modern receivers and

processors allow users to route left and right channel

low-frequency information, in addition to discrete LFE infor-

mation, through the LFE output.

Signal Connection (see figure 2):

1 Connect the left and right outputs of your preamplifier

to the left and right inputs of the Dynamo 1000 using

quality RCA interconnects. If your preamplifier only has

one set of outputs you may need to obtain Y adapters

from your dealer.

Recommended Control Settings (see figure 3):

1 Set the crossover switch to 'Variable (L&R In)'.

2 Set the 'Low Pass Filter' knob to approximately 70% of

your loudspeakers lowest frequency response.

3 While playing music with bass content, turn the level

control up until the music has deep extended bass,

being careful to avoid levels that become overwhelming.

4 Try the phase control in different settings until the

best blending is obtained. If you are augmenting

MartinLogan loudspeakers, we suggest you start with

the phase set at 90°.
