7

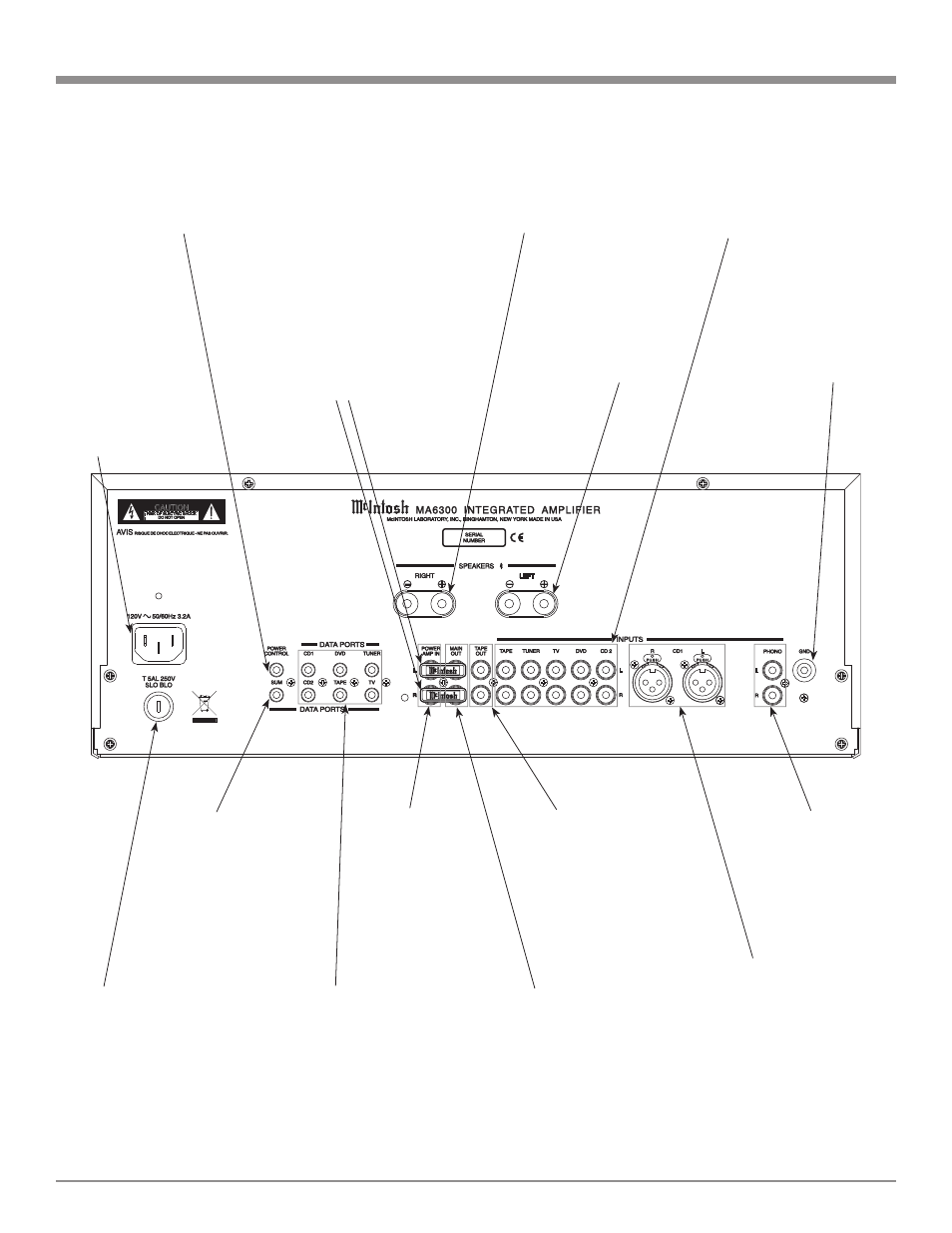

Rear Panel Connections
Connect the MA6300
power cord to a live
AC outlet. Refer to
information on the
back panel of your
MA6300 to determine
the correct voltage for
your unit
POWER CONTROL Output sends a
turn-on signal to a McIntosh Source
Component or Power Control unit
when the MA6300 is turned on
DATA PORTS send
signals to McIntosh
Source Components
to allow control with
the MA6300 Remote
Control
POWER AMP
IN inputs ac-
cept signals
from a separate
external Pream-
plifier
JUMPER PLUGS connect
the Preamplifier MAINOUT
Jacks to the POWER AMP
IN Jacks and are needed for
normal operation
TAPE, TUNER, TV,
DVD and CD2 inputs
accept high level pro-
gram source signals
GND terminal
accepts a ground
wire from a
turntable
TAPE OUT
sends signals
to the input
of a recording
device
SPEAKERS RIGHT
output connections
for 4 or 8 ohm
loudspeakers
Main Fuse holder,
refer to information
on the back panel
of your MA6300 to
determine the cor-
rect fuse size and
rating
SPEAKERS LEFT
output connections
for 4 or 8 ohm
loudspeakers
CD1 balanced INPUTS
accept high level pro-
gram source signals
PHONO accepts signals
from a Moving Magnet
phono cartridge
MAIN OUT
sends signals to a
separate external
Power Amplifier
SUM DATA PORT
sends data signals
from all the Data
Ports to a McIntosh
Source Components
for control with the
MA6300 Remote
Control
