13

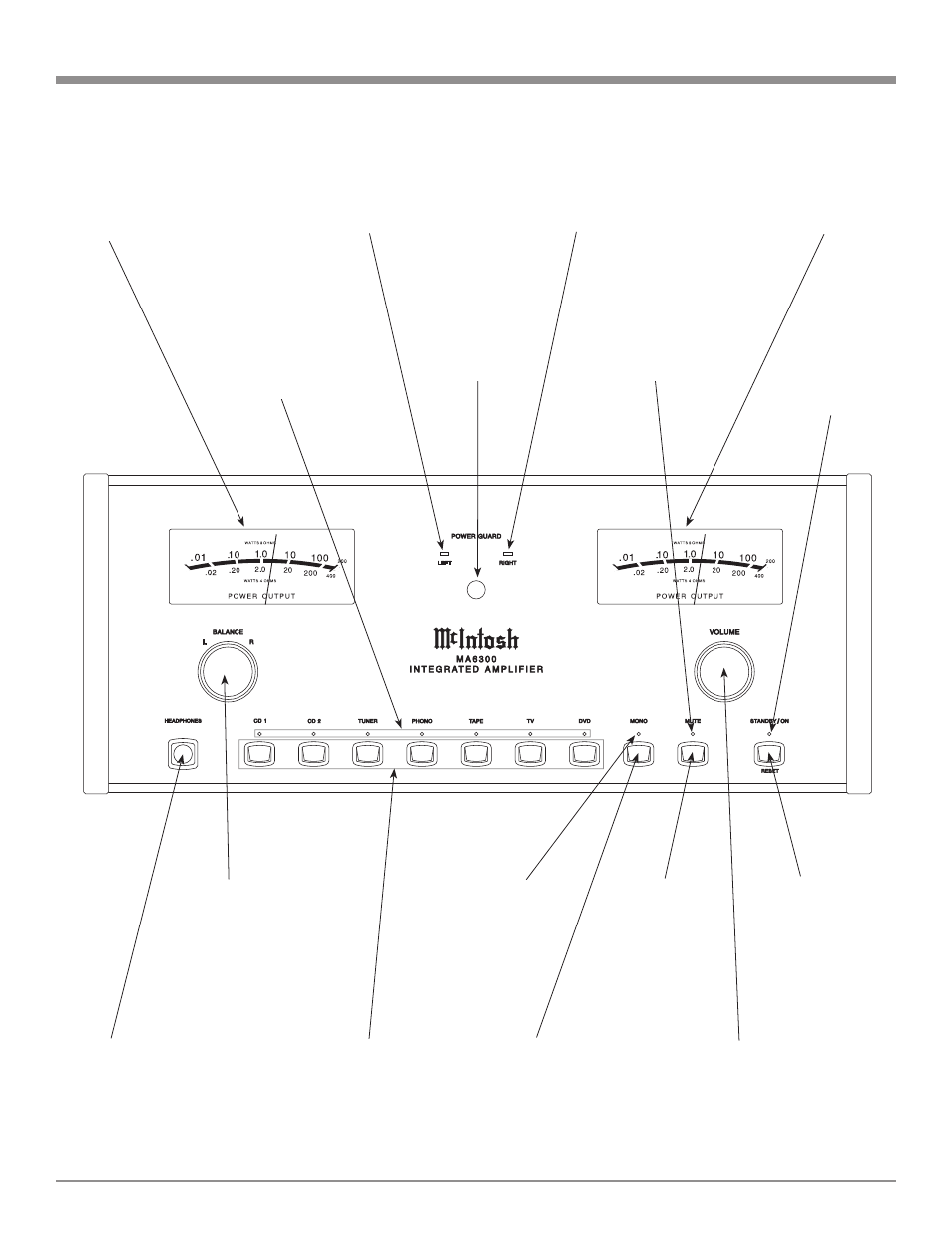

Front Panel Displays, Controls, Push-buttons and Jack

Standby Power On

Indicator

IR Sensor receives

commands from a

Remote Control

STANDBY/ON

Push-button switch-

es the MA6300 ON

or OFF (Standby)

and resets the micro-

processors

VOLUME Control allows

adjustment of the listening

level for both channels

Connection for low

impedance dynam-

ic headphones, for

private listening

Push to mute the

audio from the

Loudspeakers

(Headphones are

not affected)

Indicates the

Audio Output

is Muted

MONO Push-button

combines the Left

and Right Channel

signals for Mono-

phonic Sound

Source Push-buttons

select audio signals from

seven inputs for listening

The LEDs above the

push-buttons indicate

the current source

selected.

BALANCE Control

allows adjustment of

the relative volume

balance between

channels

Meter indicates the

Right Channel Out-

put of the amplifier

LED indicates when the

Left Channel Amplifier

POWER GUARD circuit

activates

Meter indicates the

Left Channel Out-

put of the amplifier

LED indicates when the

Right Channel Amplifier

POWER GUARD circuit

activates

Indicates the

MONO Mode

is active
