Multi-Tech Systems, Inc. RF550VPN Quick Start Guide
22

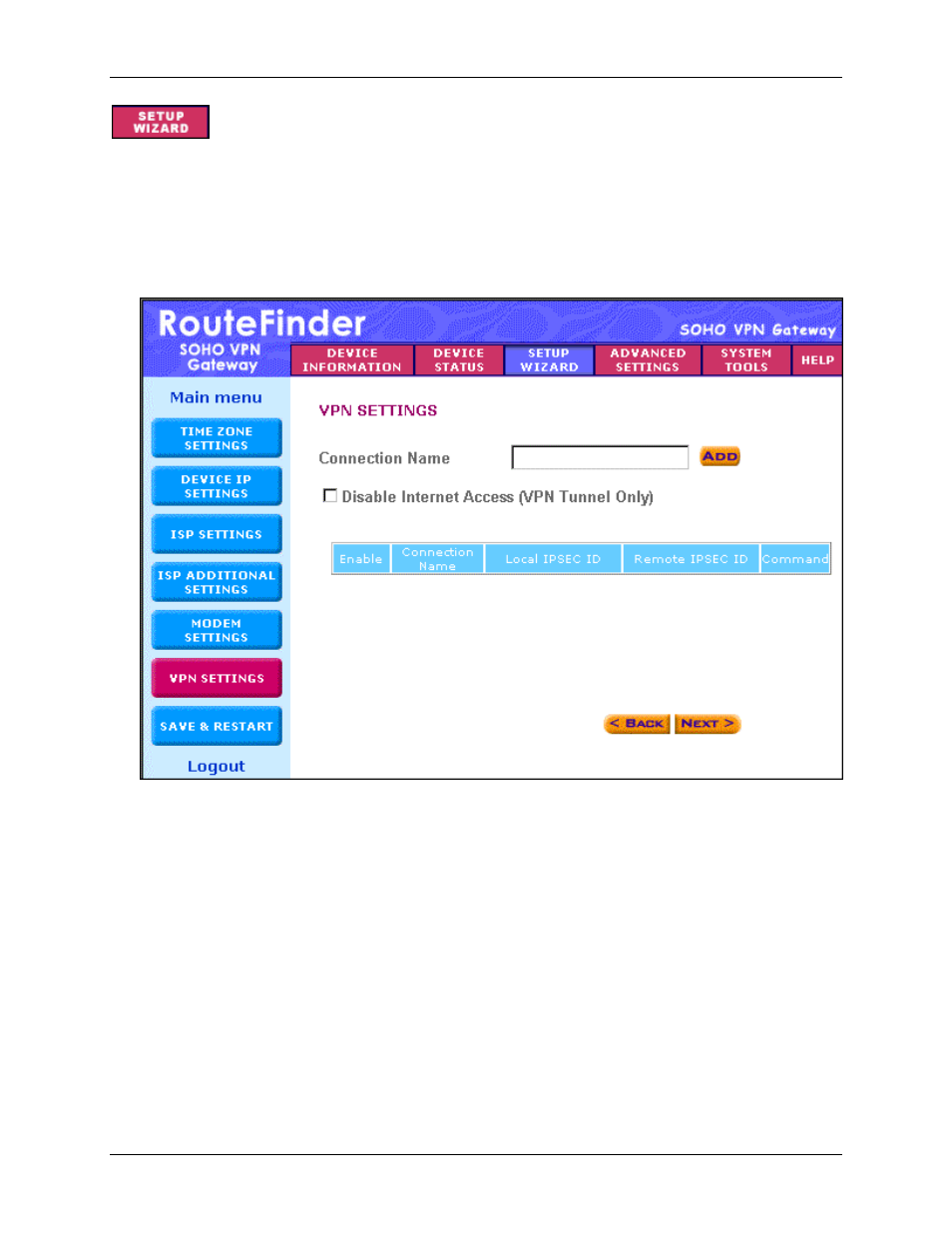

– VPN Settings
Use this screen to input your LAN-to-LAN VPN settings and/or your Client-to-LAN VPN
settings.
1. In the Connection Name field, type a name that describes a connection you would
like to make.
Example: Site A.
2. Click the Add button, and the VPN Settings detail screen will display (see the next
screen). Once you have entered the settings, the Connection Name displays on the
lower half of the screen (above).
3.
Click the checkbox if you want to Disable Internet Access (VPN Tunnel Only).
4.
You can then edit, delete, or enable/disable this connection by clicking the
corresponding buttons.
5.
To enable this connection, check the Enable box.
Note: If you uncheck the Enable box, the connection will not be active, but the
parameters will remain on the screen for you to enable, edit, or delete as desired.
