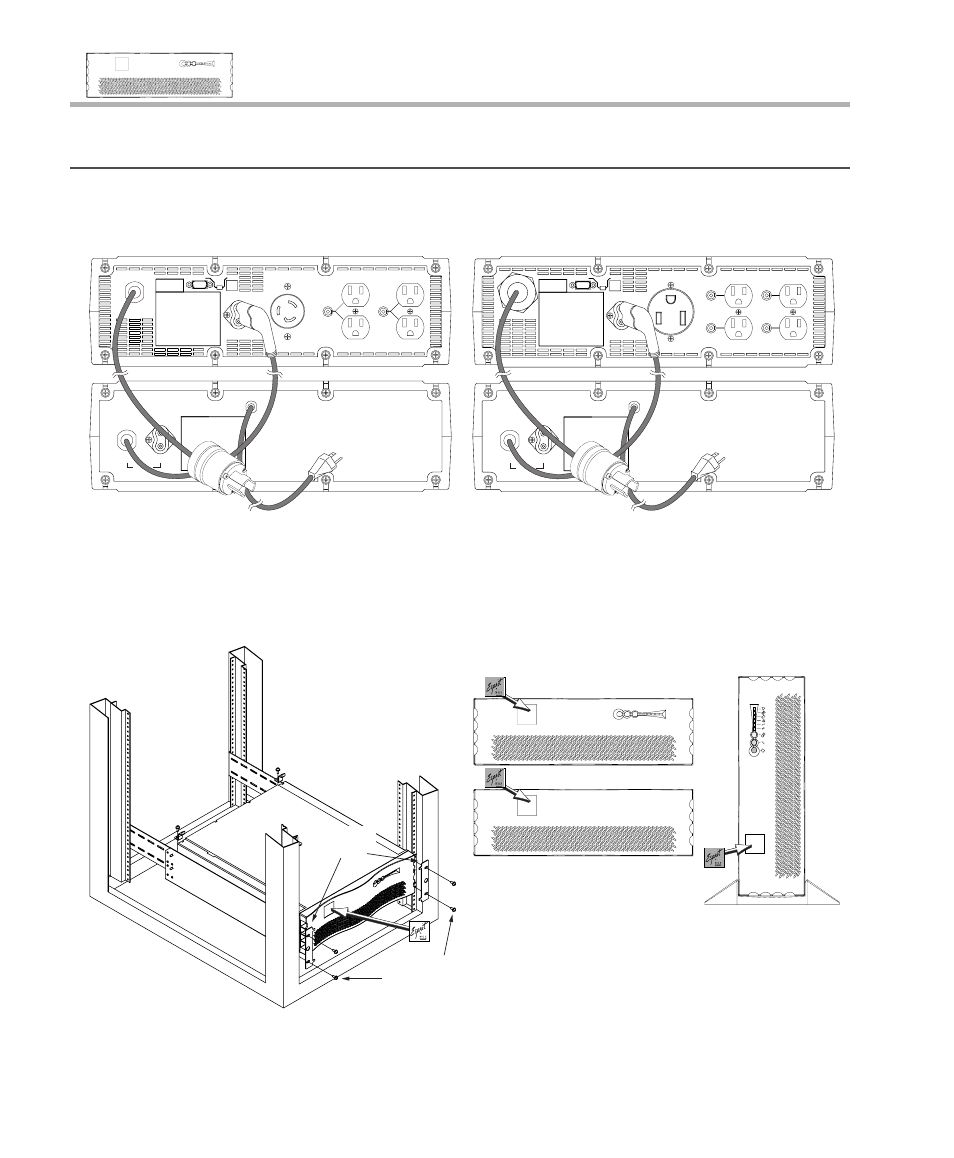

2C. Esprit Rack UPS Product Views With Rack Kit
Figure 2a. Rear View of Models 3 and 4 With Rack Kit and Extended Batteries
Model 3 Model 4
Figure 2b. Optional Rack Mounting Kit Figure 2c. Typical Front Views of Models
(ESP104) 3, 4, Extended Battery, Label
Placement
!
Models 3 and 4
Extended Battery
Rack "ears"
(included)
mounting
screws & nuts
