Page 8 -

3400753300/AE

4

6

12

11

10

9

8

7

1

3

2

4

12

11

10

9

8

7

5

3

2

1

15

14

15

14

13

12

Pulsar EXB 2200/3200 RT

Pulsar EX 3200RT

Pulsar EX 2200RT

11

10

8

9

7

6

5

4

3

2

1

Slot for communication-card option.

RS232 communication port.

USB communication port.

Upper two receptacles

for connection

to AC-power source.

Lower two programmable receptacles
(1 and 2).

Output circuit breakers. (EX 3200RT)

Input/Output power cords

for direct

connection of protected equipment.

EX 2200RT-L5-20P/L5-20R; and
EX 3200RT-L5-30P/L5-30R

.

Connector for an additional battery
module.

Connector for automatic detection of an
additional battery module.

Pushbutton to test phase/neutral
inversion of AC-power source.

LED indicating Site Wiring Alarm
Enable, with flashing and intermittent
buzzer. Reset fault with rear panel
button.

Connector for remote power off (RPO).

Battery module connectors (to the UPS
or to other battery modules).

Connectors for automatic detection of
additional battery modules.

Circuit breaker for battery ON/OFF and
protection.

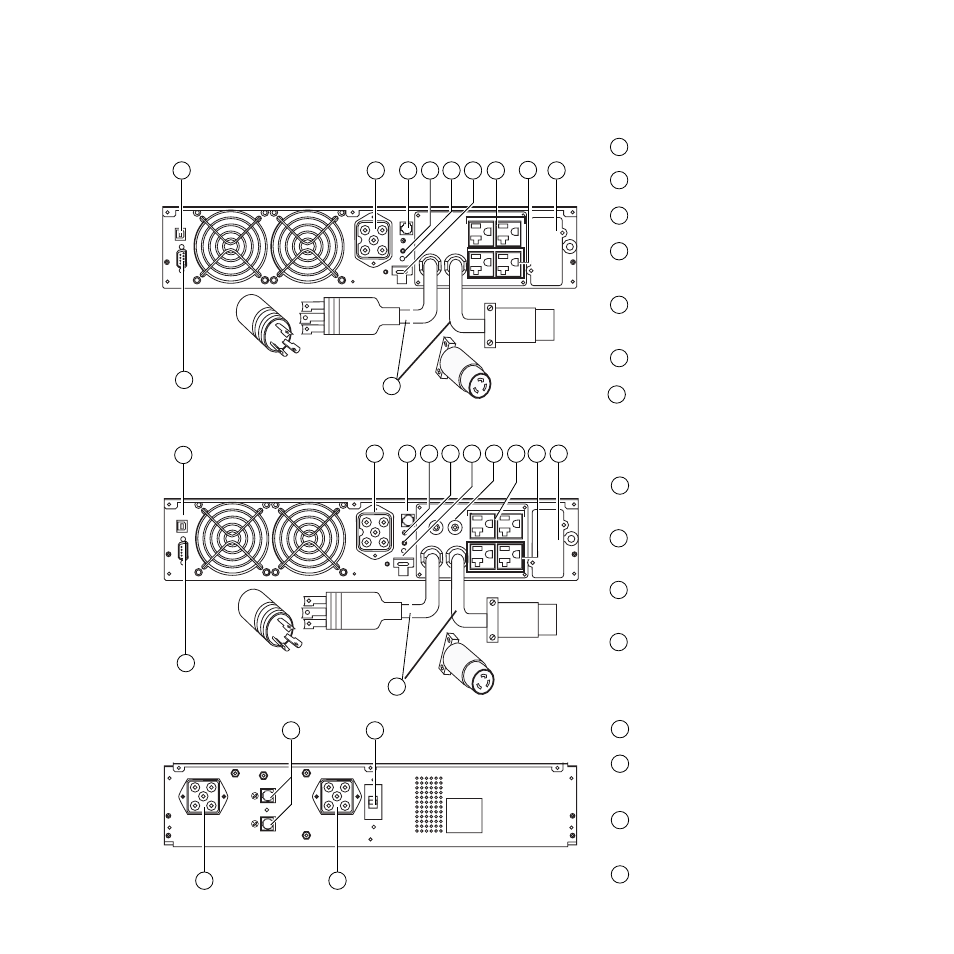

1.2 Rear panel

1. Presentation

L5-20P Plug

L5-20R Receptacle

INPUT CABLE

OUTPUT CABLE

L5-30P (Plug)

L5-30R (Receptacle)

INPUT CABLE

OUTPUT CABLE

5

13

13
