36mm min 45mm max, 40mm – Motorola PTP 500 User Manual

Page 11

8 Brown

7 Brown/White

6 Green

5 Blue/White

4 Blue

3 Green/White

2 Orange

1 Orange/White

Cable Type; CommScope 2003OD
Connector Type; Tyco (AMP), 336330-1
Crimp Tool; Tyco (AMP), 790163-1 (Includes die set)
Gland;

Motorola WB1811

36mm min

45mm max.

Cable braid trapped under

connector back shell to

prevent loose braid

40mm

12mm

Connector load bar

Connector Housing

Inner cable sheath and braid

terminate here

Connector back shell

Foil trimmed back to here

Trim Conductors to edge of load bar (start with tails

over-length to assist insertion into load bar)

Note: Fit Gland to cable before fitting RJ45

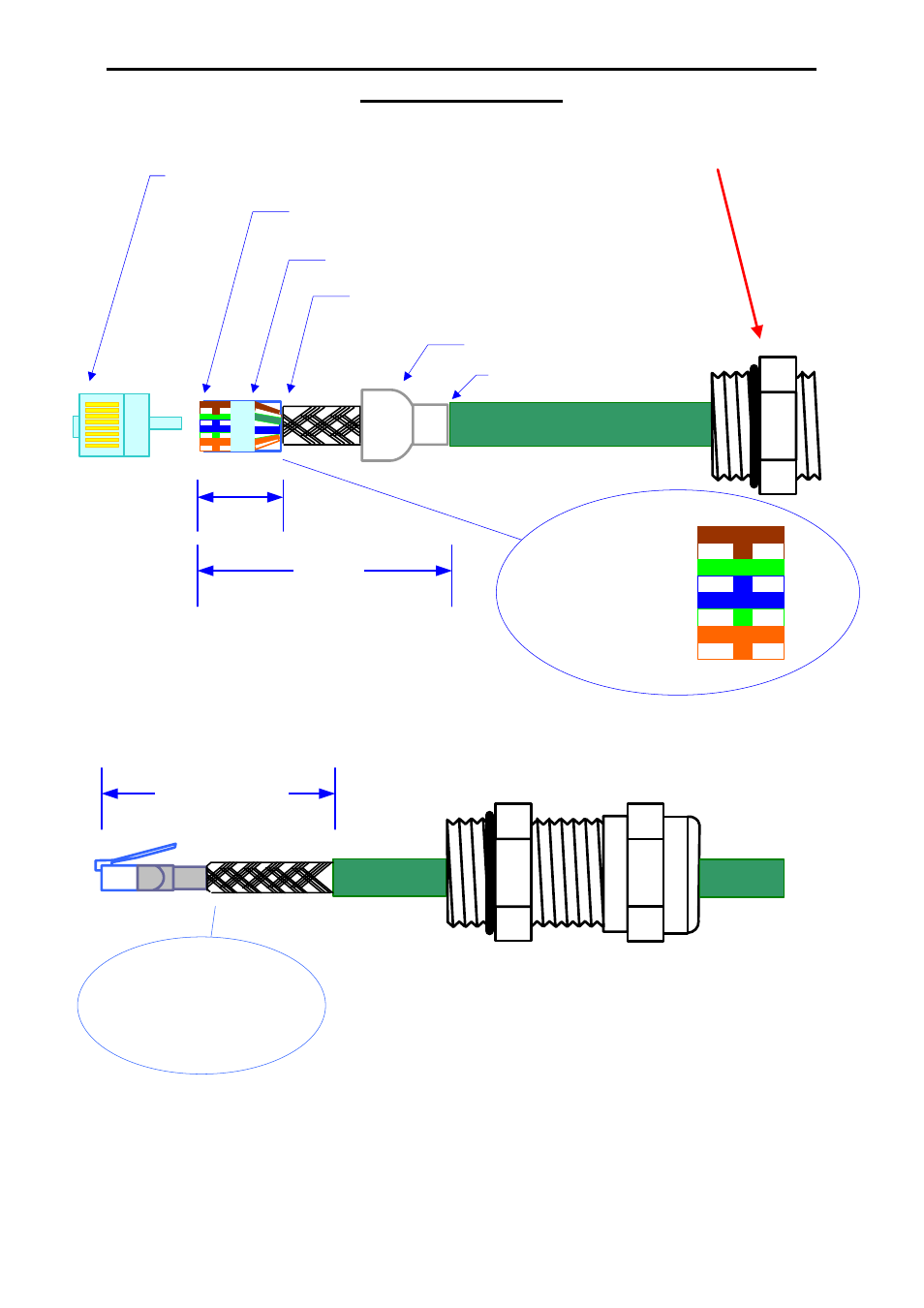

Correct cable preparation for an example of a braided

screened cable
