Wall mount, Assembly, Tand – Metrologic Instruments Voyager MS9500 Series User Manual

Page 20

TAND

ITS

Assembly

Wall Mount, Option 1:

For Kit #46-46508

Step 1

Drill two #39 pilot holes 3.00″ apart.

Step 2

Attach the Wall Mount Hanger to the wall
with the two #8 wood screws provided.

Wall Mount, Option 2:

Kit #46-46508

Step 1

Attach the Wall Mount Base to the
Wall Mount Hanger with the two
4.8 x 13 mm self-tapping screws.

Step 2

Remove one side of the protective
backing from the double-sided
adhesive tape.

Step 3

Attach the tape to the back of the
Wall Mount Hanger as shown.

Step 4

Remove the protective backing from
the double-sided adhesive tape and
apply hook to the wall.

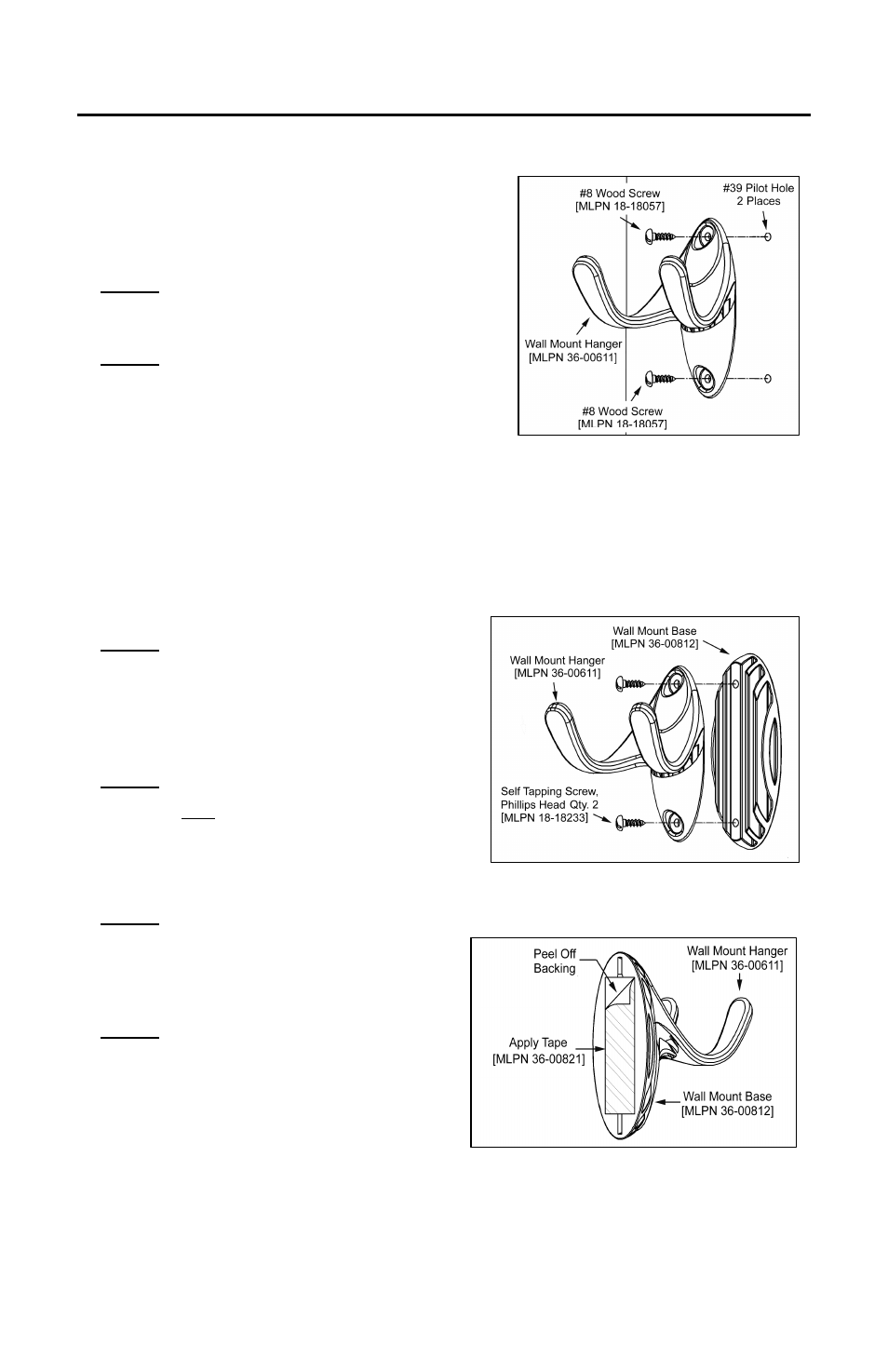

Figure 26.

Figure 27.

Figure 28.
