Metrologic Instruments Voyager MS9500 Series User Manual
Page 19
15
S
TAND
K
ITS
Assembly

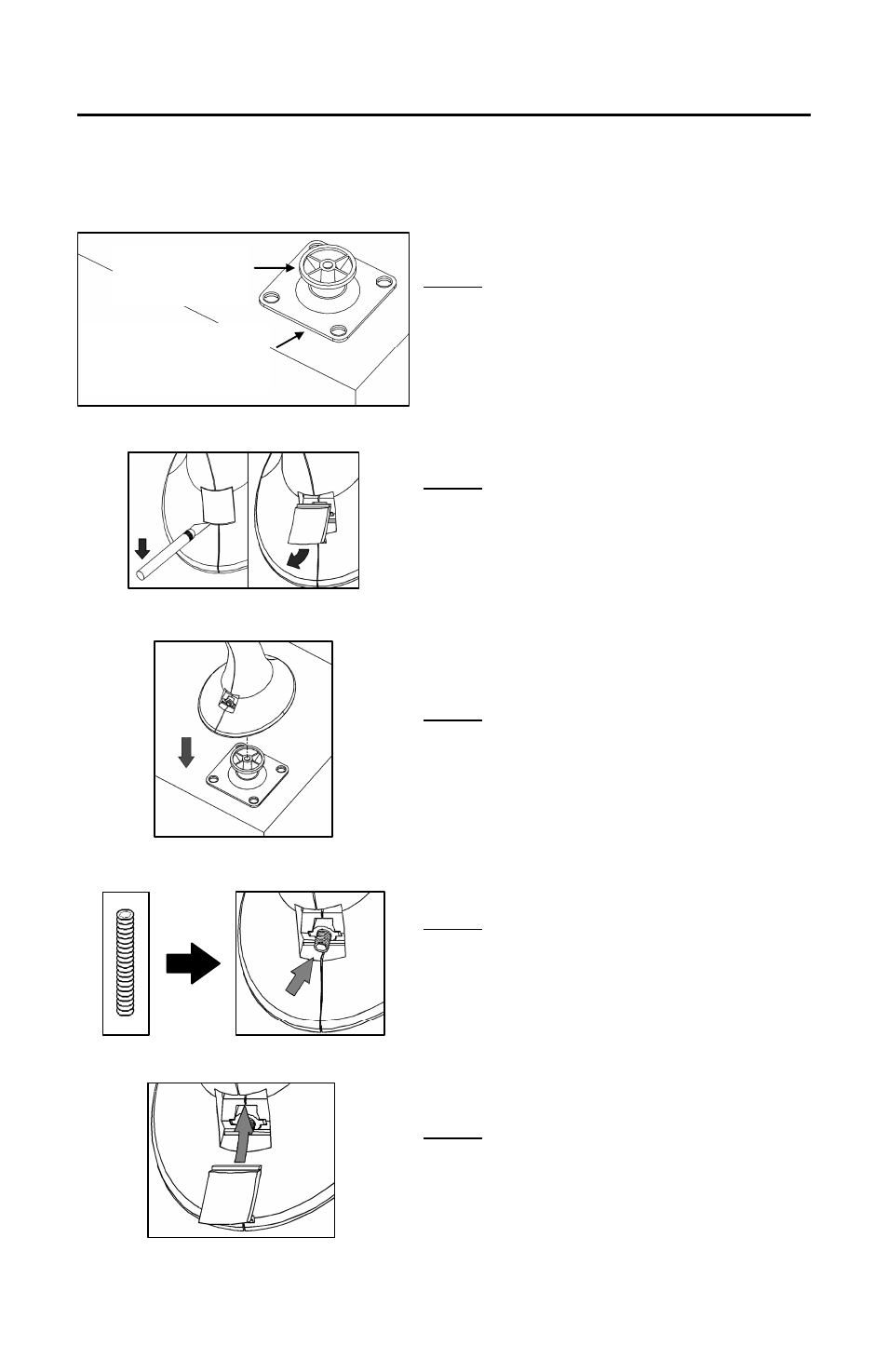

Stand Option 2: Hard-Mount Kits #46-46128 and #46-46351
Step 3
Screw the stand anchor onto the base
assembly until it sits flush.
Step 4
Remove the logo plate on the stand by
gently using an exacto knife to release
the plate hook.
Step 5
Position the stand over the base
assembly.
Step 6
Secure the stand to the base assembly
by installing and tightening the M3 set
screw under the logo plate as shown.
Step 7
Snap the logo plate back into place.
Anchor from
Kit #46-46128
Base Assembly from
Kit #46-46351 or
MS951 Stand Base
Figure 21.
Figure 22.
Figure 23.
Figure 24.
Figure 25.
