MTD 12211 - Manual (Page 46)

46
Models 12211 and 12212
PARTS LIST
HILLER/FURROWER ATTACHMENT

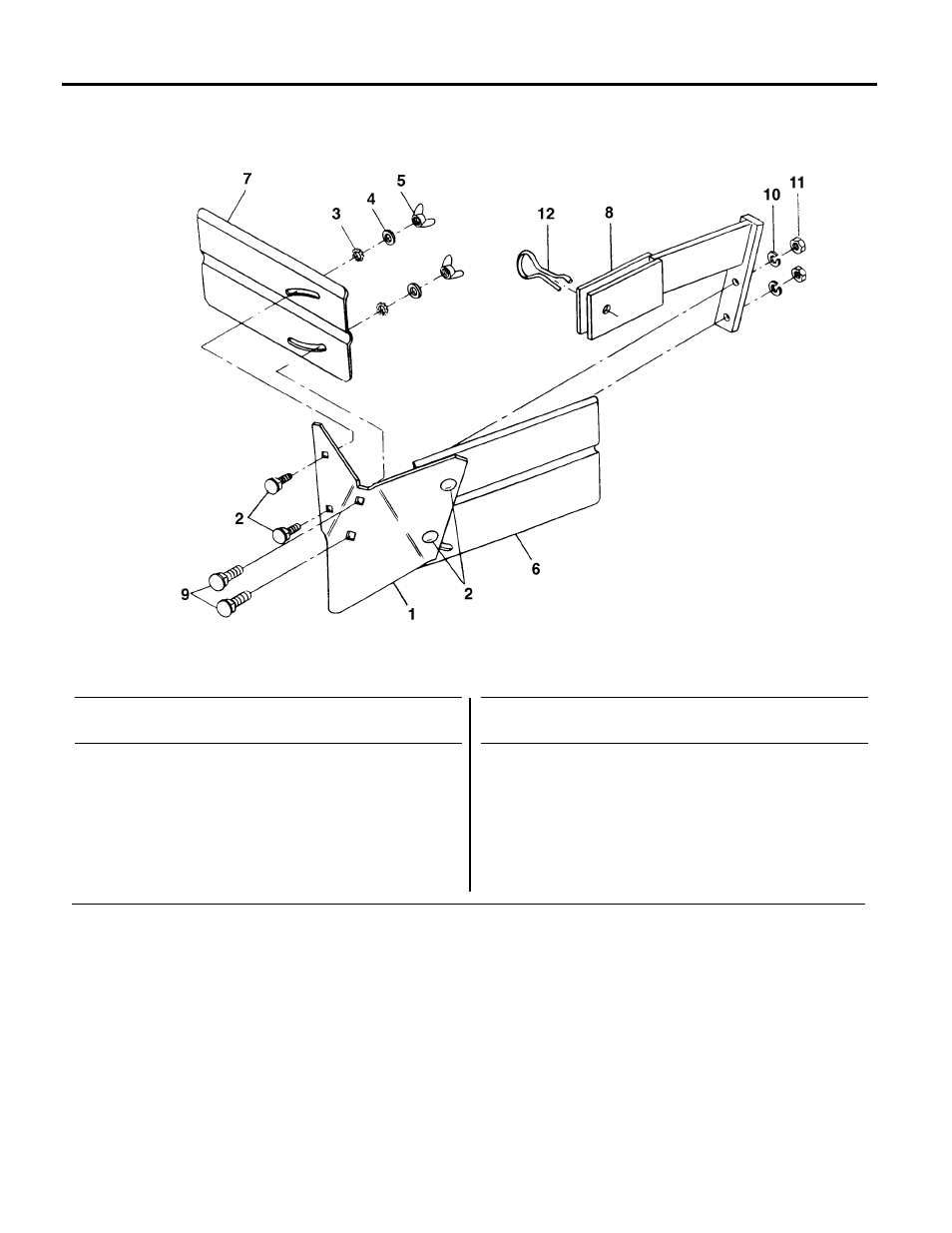

HILLER/FURROWER – PART #12579
(Viewed from front of tiller)
1 1900771001 Furrower Blade .................................. 1
2 1186098 Carriage Bolt, 5/16-18 x 3/4 .............. 4
3 1177548 Star Washer, External Tooth, 5/16..... 4
4 9902 Plain Washer, 5/16 S.A.E................... 4
5 9824 Wing Nut, 5/16-18............................. 4
6 1900773001 Hiller Wing, left.................................. 1
7 1900774001 Hiller Wing, right ............................... 1
8 1900772001 Blade Mounting Bracket .................... 1
9 9725 Carriage Bolt, 3/8-16 x 1-1/2 ............. 2
10 1100243 Lockwasher, 3/8, plated .................... 2
11 1186231 Hex Nut, 3/8-16, plated ..................... 2
12 9318 Clinch Pin .......................................... 1
-- 12579 Complete Hiller/Furrower Attachment
(Incl. blade, bracket, hiller wings
and mounting hardware) ...............
1
