40
Models 12211 and 12212
PARTS LIST

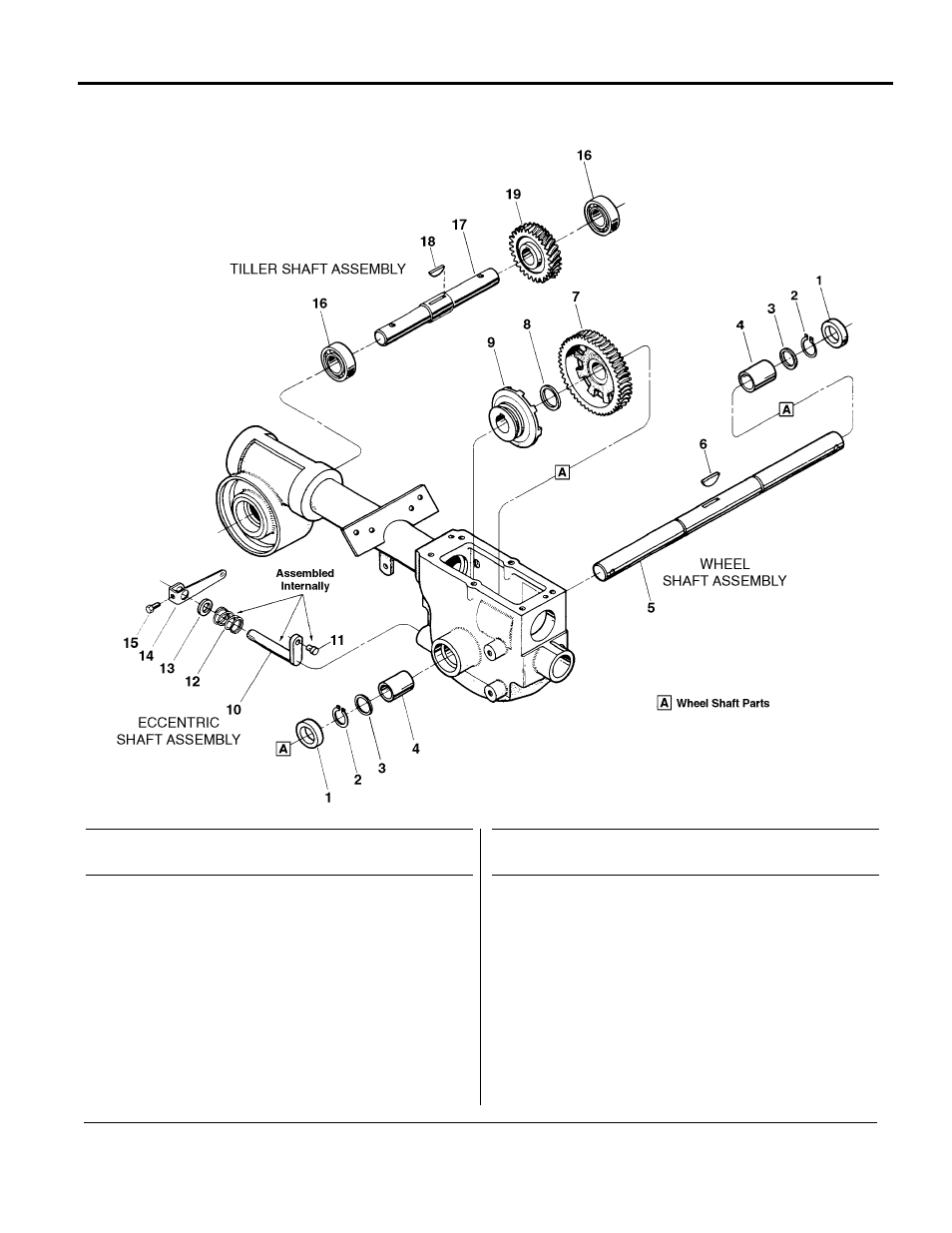

WHEEL SHAFT, ECCENTRIC SHAFT and TILLER SHAFT ASSEMBLIES
REF. PART
No. No. DESCRIPTION QTY.
REF. PART
No. No. DESCRIPTION QTY.
1 9621 Oil Seal .............................................. 2
2 9511 Retaining Ring (heavy-duty, external) 2
3 1166-1 Shim, 1-1/64 I.D., .062" thick ............ A/R
--- 1166-2 Shim, as above, but .030" thick ......... A/R
--- 1166-3 Shim, as above, but .015" thick ......... A/R
--- 1166-4 Shim, as above, but .010" thick ......... A/R
4 1086 Bushing ............................................. 2
5 2494 Wheel Shaft (Incl. Ref. 6) .................. 1
6 9373 Hi-Pro Key, 1/4 x 1-5/16.................... 1
7 20914 Wheel Drive Worm Gear (cast-iron) .. 1
8 9935 Shim (between key and gear),
1.016 I.D. x 1.468 O.D. x .062
Thick..............................................
1
9 20712 Wheel Drive Clutch (cast-iron) .......... 1
10 20879 Eccentric Shaft .................................. 1
11 1442 Pin, Eccentric Shaft ........................... 1
12 9055 Spring ............................................... 1
13 9622 Oil Seal .............................................. 1
14 20757 Eccentric Shaft Lever......................... 1
15 1100804 Hex Hd. Screw, 1/4-20 x 1/2* ........... 1
16 97074 Ball Bearing ....................................... 2
17 20896 Tiller Shaft (Incl. Ref. 18) .................. 1
18 1104 Woodruff Key, 1/4 x 1-1/4 ................. 1
19 20913 Tiller Drive Worm Gear (bronze) ....... 1
* Specify GRADE 5 if ordering part locally.
A/R - As Required
