Front of WPS870G

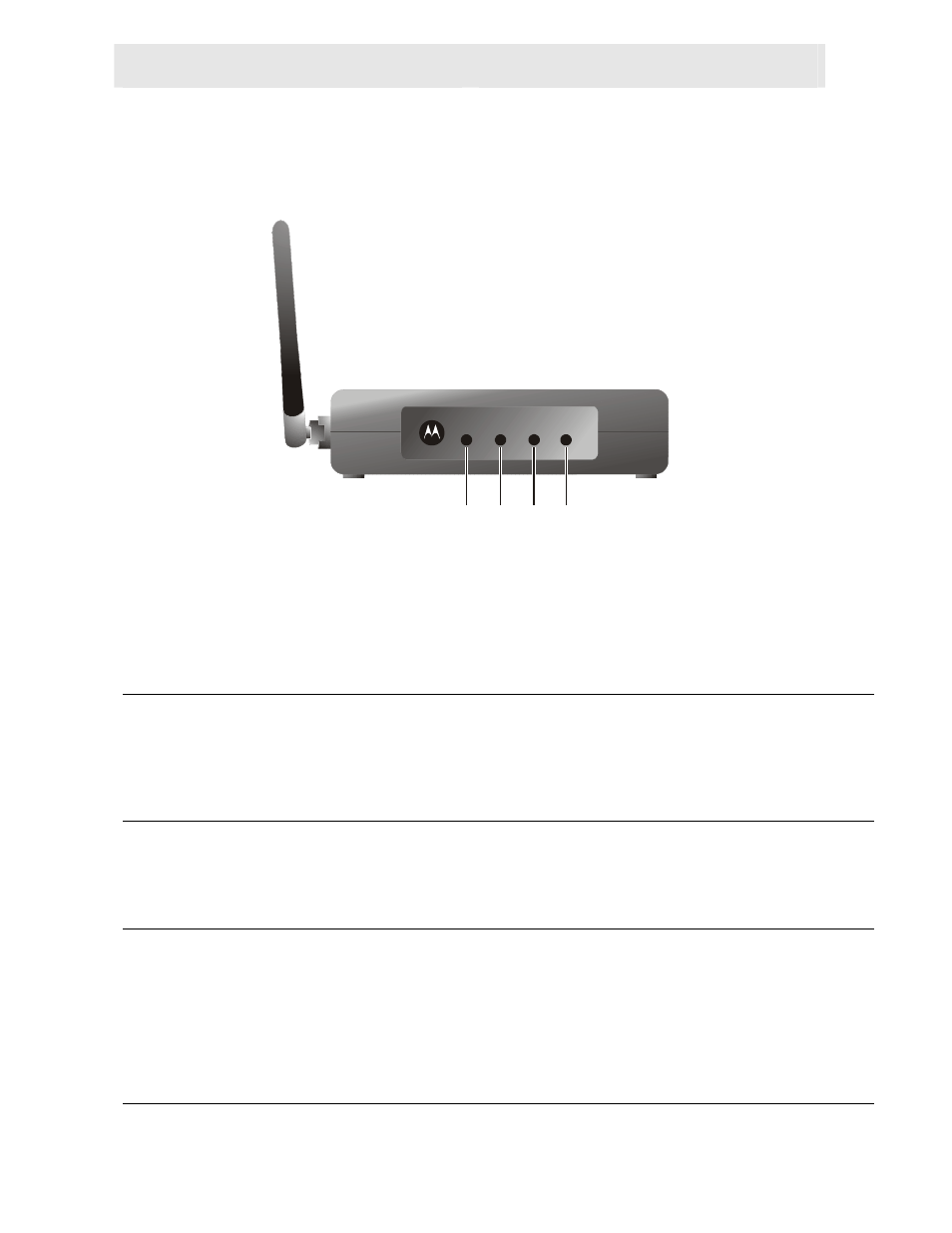

The following illustration shows the front panel:
LAN Wireless USB Parallel
1 2 3 4
LED Indicators
There are four LED indicators on the front of the unit. The LED indicator modes are
described in the following table.
LED Color Condition Status
1. LAN None Off No Ethernet link or power is unplugged
Green Solid On There is a live Ethernet link
Green Blinking Traffic is occurring on Ethernet link
Orange Blinking Collision of data on Ethernet link
2. Wireless None Off Wireless link unavailable
Green Solid On Wireless port associated with an Access Point
Green Blinking Wireless connection associated and data is being
sent/received
3. USB None Off No printer connected
Green Solid On Printer is connected
Green Blinking Sending data
Orange Solid On Printer problem or connection problem
Orange Blinking Firmware upgrade in process in conjunction with
Parallel LED
