PAGE 44 — DCA-220SSJ/SSJU— OPERATION AND PARTS MANUAL — REV. #1 (01/06/09)
DCA-220SSJ/SSJU — GENERATOR OUTPUTS
Generator Amperage
Tables 8 and 9 describe the generator’s current output capa-
bility for both 1Ø-phase and 3Ø phase applications.
Generator Output Voltages
A wide range of voltages are available to supply voltage for
many different applications. Voltages are selected by apply-
ing jumpers (6) to the
voltage change-over board (Figure 15).
To obtain some of the voltages as listed in Table 6 (see
below) will require a fine adjustment using the
voltage regu-
lator (VR) control knob located on the control panel.
Voltage Change-Over Board
The
voltage change-over board (Figure 16) is located on
the control box, behind the generator control panel. This
board has been provided for ease of voltage selection.
CAUTION - CHANGING VOLTAGES
NEVER attempt to place jumper plates on the
voltage
change-over board while the generator is in operation.
There exist the possibility of
electrocution, electrical
shock or burn, which can cause severe bodily harm
or even death!

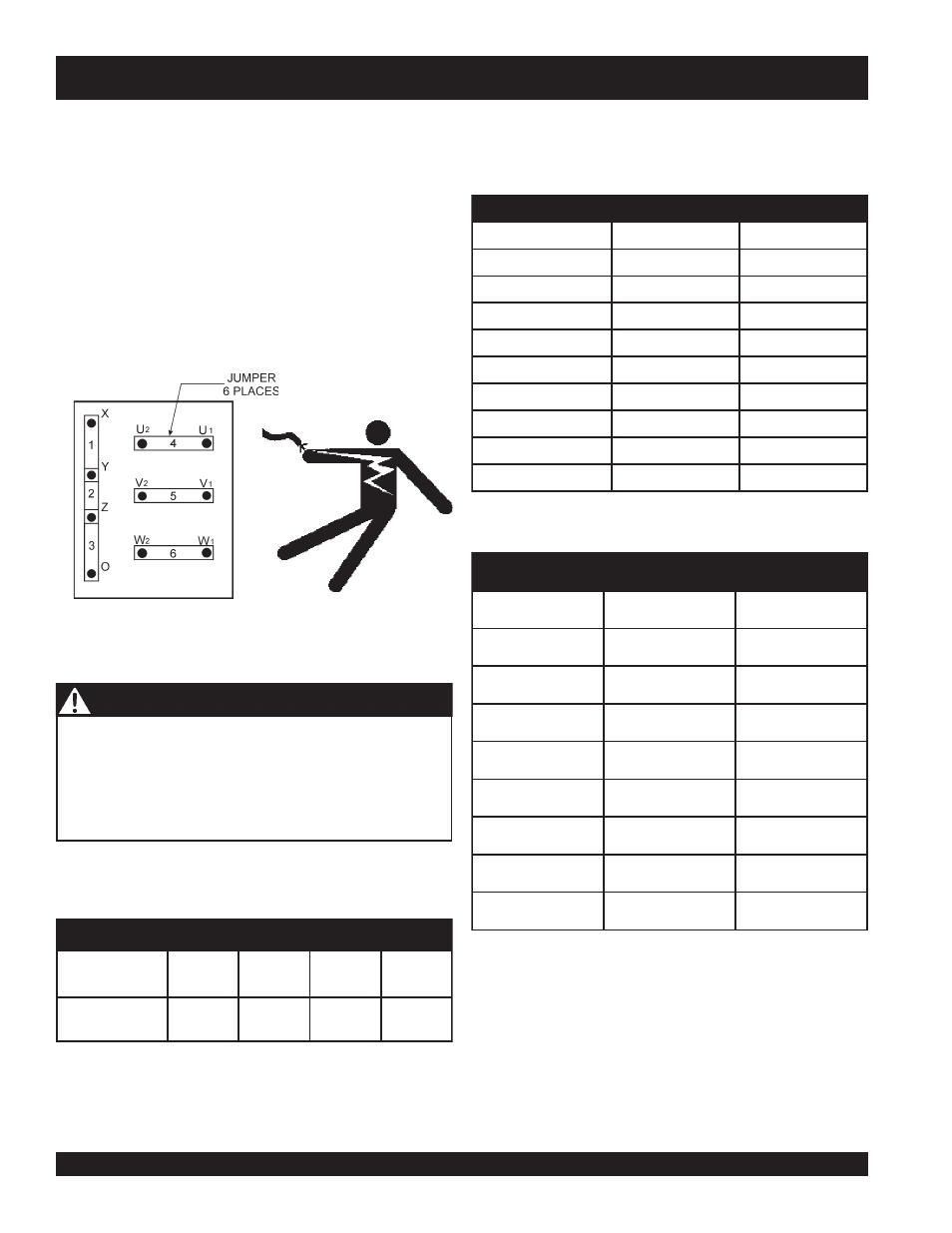

Figure 16. Voltage Change-Over Board
Table 7. Voltages Available
Three Phase
(Switchable)
200V
220V
400V
440V
Single Phase
(Switchable)
115V
127V
230V
254V
Table 8. Generator Ampere Ratings — 1Ø
kW
100V
200V
16
160
80
36
360
180
56
560
280
76
760
380
96
960
480
116
1160
580
136
1360
680
156
1560
780
176 (Max)
1760
880
Table 9. Generator Ampere Ratings — 3Ø
KVA
200V
400V
20
57
29
36
103
51
56
161
80
68
196
98
100
288
144
120
346
173
144
415
207
176
508
254
