Getting to Know Your Phone
8
Getting to Know Your Phone

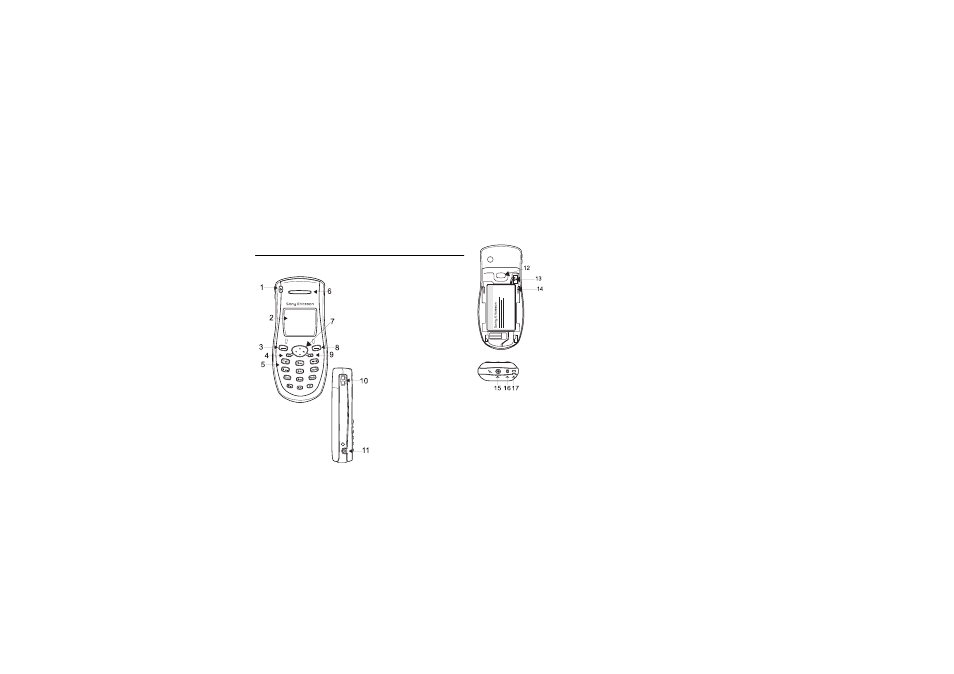

Diagrams
Front/Side View
1 Power Key
2 Display
3 Left Softkey
4 Options Key
5 Keypad
6 Earpiece
7 4-way Navigation
Key
8 Right Softkey
9 Clear Key
10 Side Volume Keys
11 Portable
Handsfree Jack
(2.5mm)
Back View
12 Back Cover Latch
13 Battery Connector
14 Guide for Attaching
Back Cover
Bottom View
15 Charger Jack ( 2.5mm)
16 Microphone
17 Lanyard Holder
