32

Specifications

PANEL


Screen Size

24.1” Diagonal

Display Area (h x v)

518.4 mm x 324.0 mm

Aspect Ratio

16:10 Native

Pixels

1920 x RGB x 1200

Color Depth

8-bit

Viewing Angle (h x v) 178° x 178°

Brightness

400 cd/m

2

Contrast Ratio

1000:1

Pixel Pitch (h x v)

0.270 mm x 0.270 mm

VIDEO INPUT/OUTPUT

HD-SDI Input / Output
Supports ITU-R BT.656, SMPTE 259M, 292M, 274M, 424M,
425M


DVI-I Video/VESA input


CONNECTORS


HD-SDI Video Input

4 x BNC Female (75

)


HD-SDI Video Output (Active Loop-Through)

4 x BNC Female (75

)


DVI-I Video/VESA input

1 x DVI-I Female connector

Power Input

4-Pin XLR


Tally Hardware Interface

HD-15 Female


RS-422/485 Interface

2 x RJ12 (Modular 6P6C)



















TALLY HARDWARE INTERFACE (HD-15)

Activation requires contact closure of pin to ground on the HD-
15 connector:

Pin No.

Signal

1

Channel 1 Green

2

Channel 1 Red

3

Channel 1 Yellow

4

Ground

5

Ground

6

N/C

7

N/C

8

N/C

9

N/C

10

N/C

11

N/C

12

N/C

13

N/C

14

N/C

15

N/C

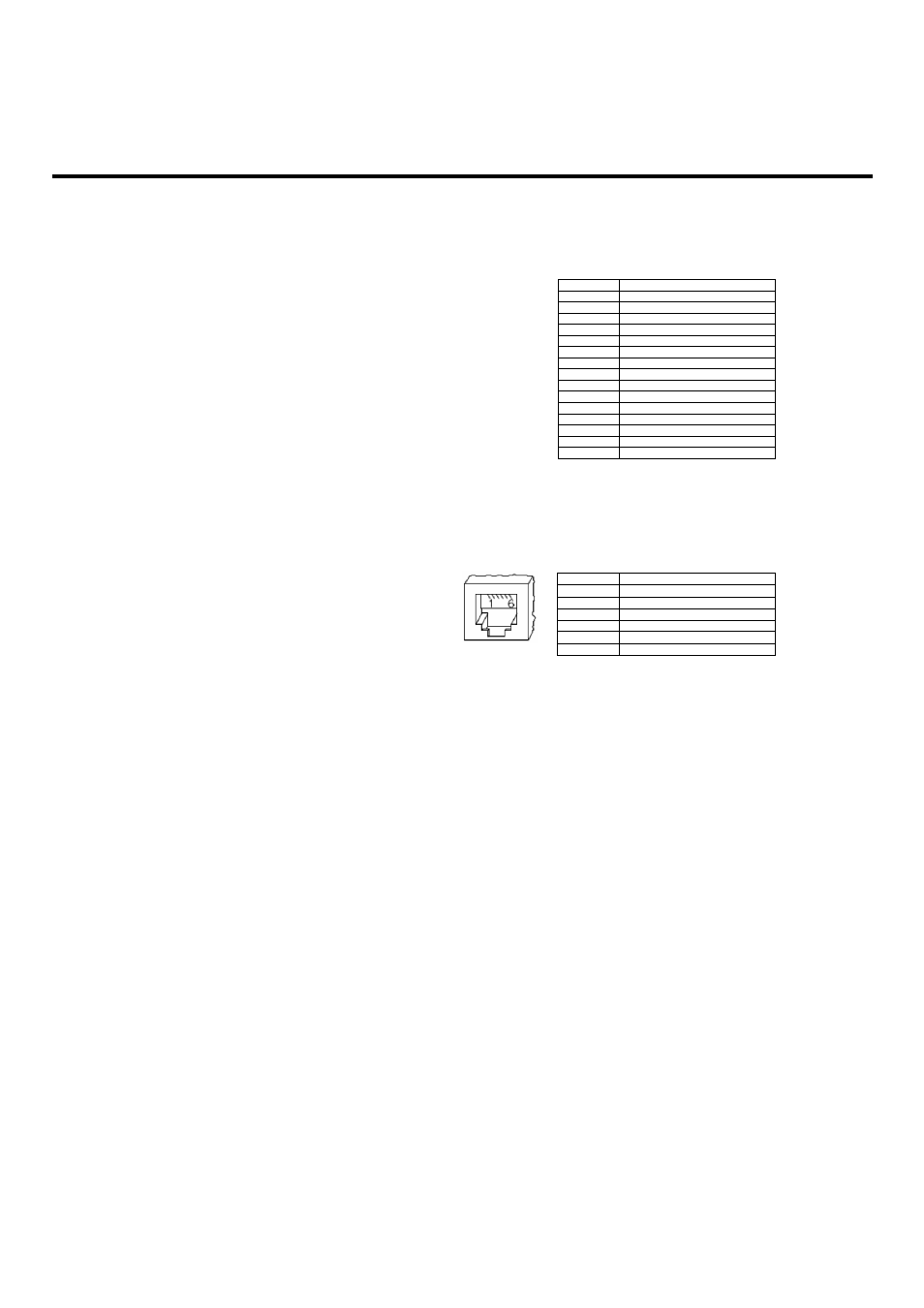

RS-422/485 SERIAL INTERFACE (RJ12)


Protocols: Image Video, TSL v4.0, MEI

Pin No.

Signal

1

Tx-

2

Ground

3

Rx+ (Receive from host)

4

Rx- (Receive from host)

5

N/C

6

Tx+


ELECTRICAL


Power Consumption

132 W

Voltage Requirement 24 VDC

V-PS24-7.5 Power Supply:

Input

100V-240V, 2.5A, 50-60 Hz

Output

18-24VDC, 7.5A, 150W Max


MECHANICAL


Dimensions (w x h x d): 23.3” x 16.29” x 2.14”

Weight (with desktop stand):

~15 lbs.

Operating Temperature 32°F to 104°F (0°C to 40 °C)

Storage Temperature

-4°F to120°F (-20°C to 50°C)

RoHs

Do not dispose. Return to Manufacturer or
Authorized Recycle Facility.
