3.5.2.3 Actuator/Button SFP Modules
The actuator/button SFP module has a button that you must push in order to remove the
SFP module from a switching module port.

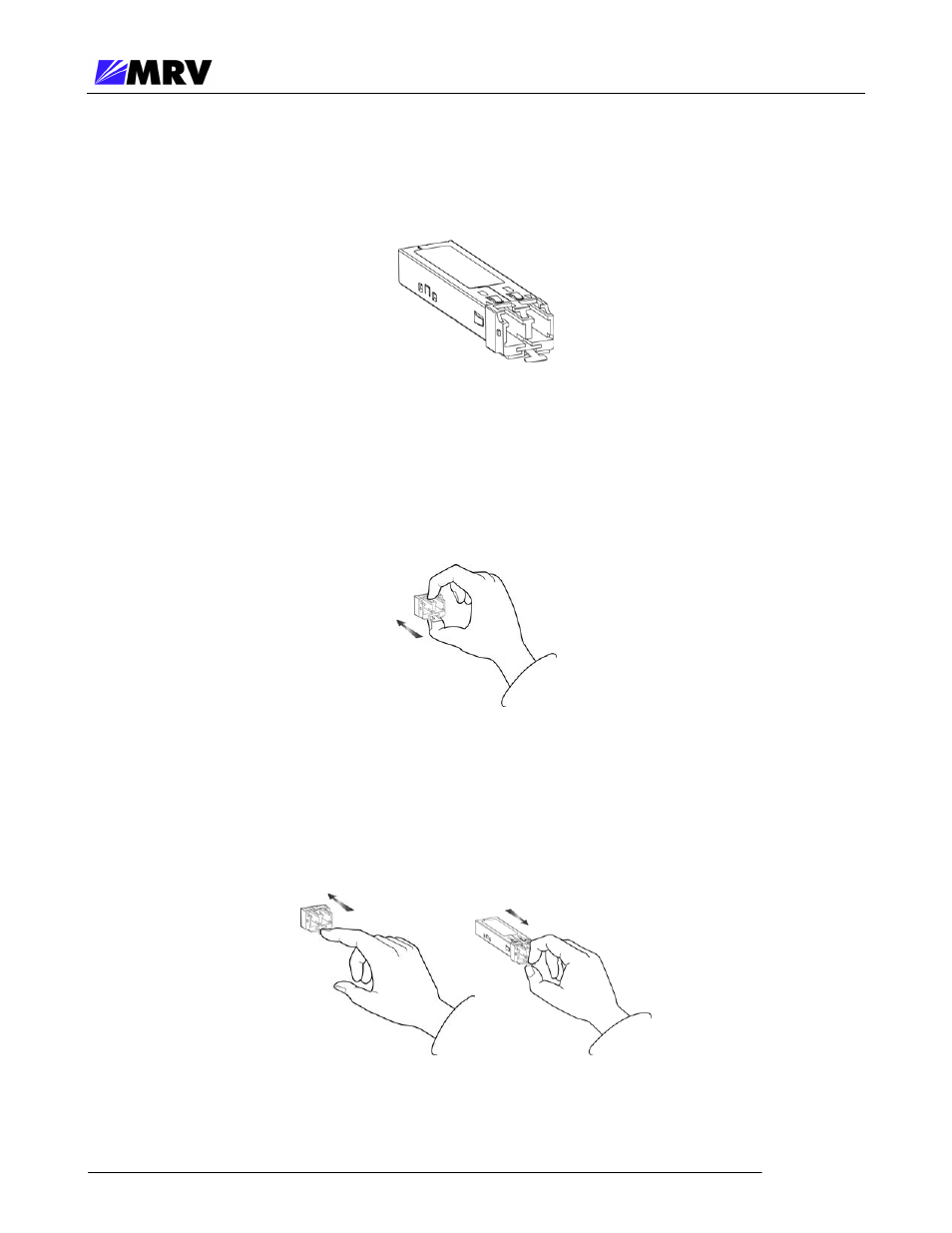

Figure 15 – Actuator/Button SFP Module
3.5.2.4 Inserting an Actuator/Button SFP Module
To insert the actuator/button SFP module into a switching module port, line up the SFP
module with the port and slide it in until the actuator/button clicks into place. Be sure not to
press the actuator/button as you insert the SFP module because you might inadvertently
disengage the SFP module from the port.
Figure 16 -- Insertion of an Actuator/Button SFP Module
(5) Removing an Actuator/Button SFP Module
Step 1 Gently press the actuator/button on the front of the SFP module until it clicks and the
latch mechanism activates, releasing the SFP module from the port.
Step 2 Grasp the actuator/button between your thumb and index finger and carefully pull the
SFP module from the port.
Figure 17 -- Removal of an Actuator/Button SFP Module
