PAGE 62 — DCA-800SSK (STD) — OPERATION AND PARTS MANUAL — REV. #4 (06/03/10)

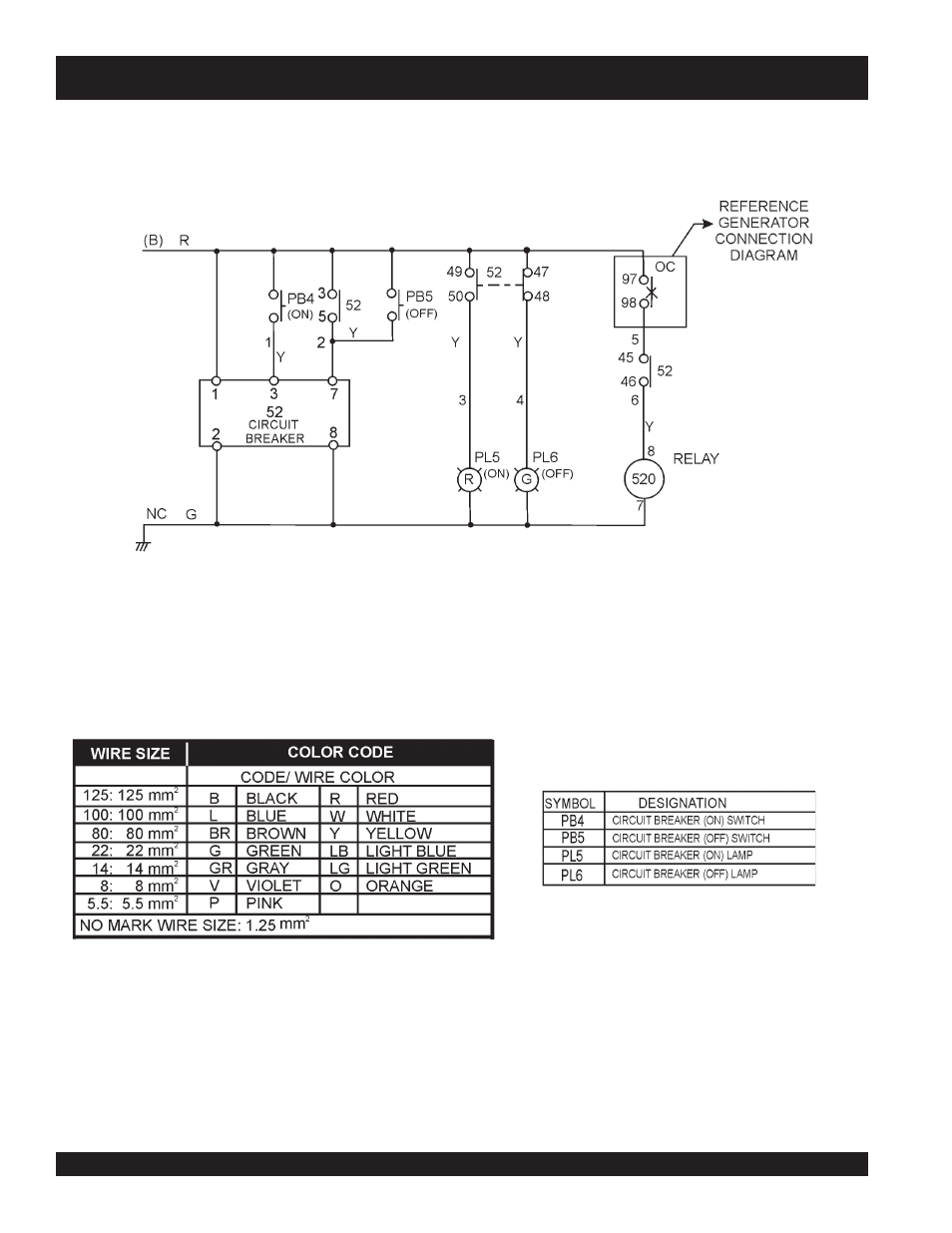

DCA-800SSK — GENERATOR WIRING DIAGRAM (MAIN BREAKER)

Figure 82. Main Circuit Breaker Wiring Diagram
