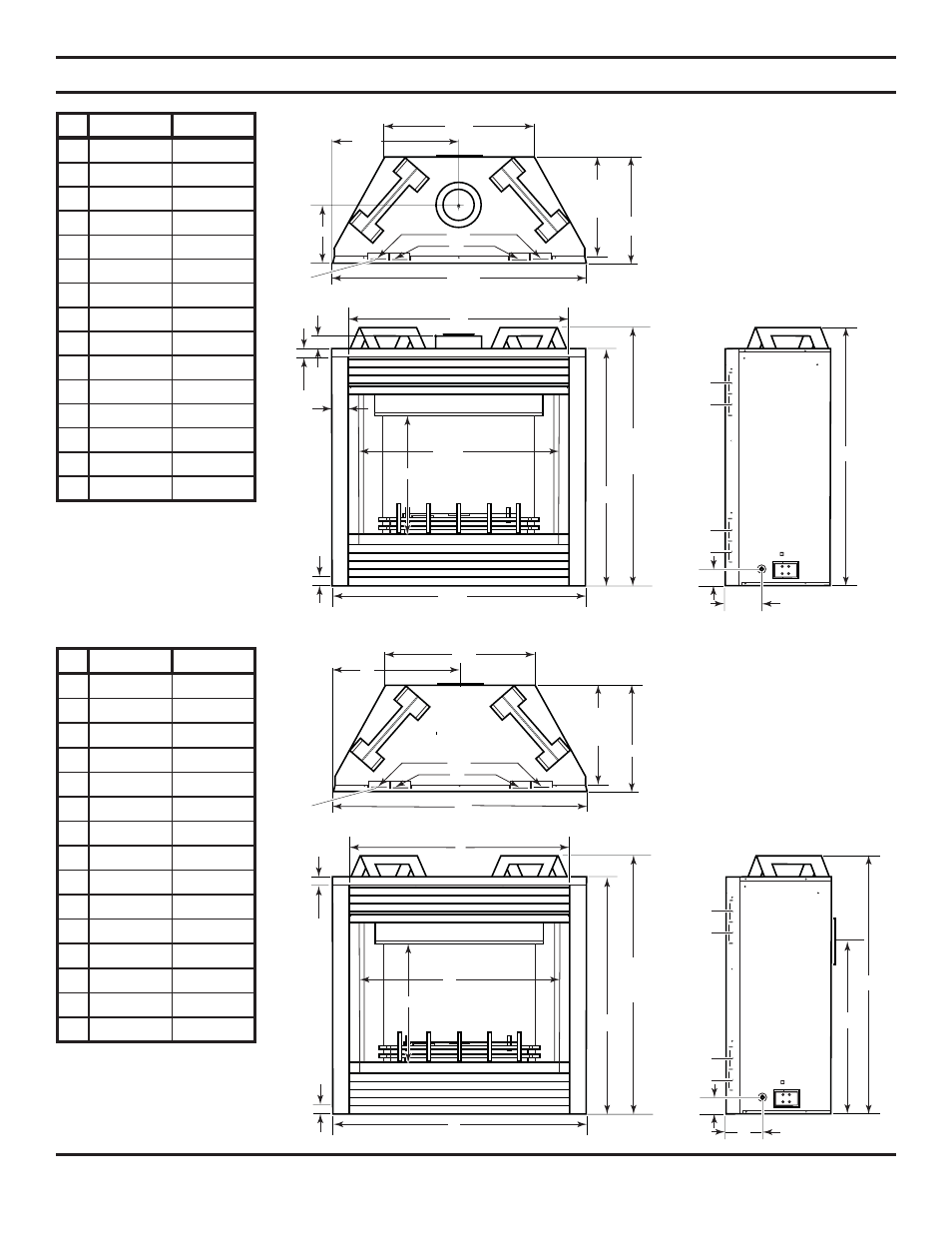

PRE-INSTALLATION INFORMATION
Figure 5 - CDVR33 and
CDVR36
Fireplace Dimensions
CDVR33 CDVR36
A 33 1 /
4
" 37 1 /
2
"
B 35" 38 1 /
8
"
C 13 3 /
4
" 15 1 /
4
"
D 33" 37 1 /
16
"
E 34 3 /
4
" 37 3 /
8
"
F 13 11 /
16
" 15 3 /
4
"
G 21 3 /
8
" 21 7 /
8
"
H 31 11 /
16
" 34 1 /
2
"
I 21 15 /
16
" 25 3 /
16
"
J 27 3 /
16
" 29 1 /
16
"
K 15 3 /
16
" 20 3 /
8
"
L 29 7 /
8
" 32"
M 5 13 /
16
" 18 9 /
16
"
N 2 5 /
16
" 2 3 /
8
"
O 7 3 /
16
" 5 7 /
16
"
CDVT33 CDVT36
A 33 1 /
4
" 37 1 /
2
"
B 35" 38 1 /
8
"
C 13 11 /
16
" 15 1 /
4
"
D 33" 37 1 /
16
"
E 34 3 /
4
" 37 3 /
8
"
F 14 3 /
16
" 15 3 /
4
"
G 21 3 /
8
" 21 7 /
8
"
H 31 11 /
16
" 34 1 /
2
"
I 7 3 /
8
" 9"
J 27 3 /
16
" 29 1 /
16
"
K 15 3 /
16
" 20 3 /
8
"
L 29 7 /
8
" 32"
M 16 1 /
2
" 18 9 /
16
"
N 2 5 /
16
" 2 3 /
8
"
O 7 3 /
16
" 5 7 /
16
"
Figure 4 - CDVT33 and
CDVT36
Fireplace Dimensions
