Monessen Hearth Direct Vent Gas Fireplace CDVR36 - Manual (Page 37)

69D0023 37
T
PILO
T
O
FF
PILO
T
O
N
O
FF
PILO T
O
N
PILO
T

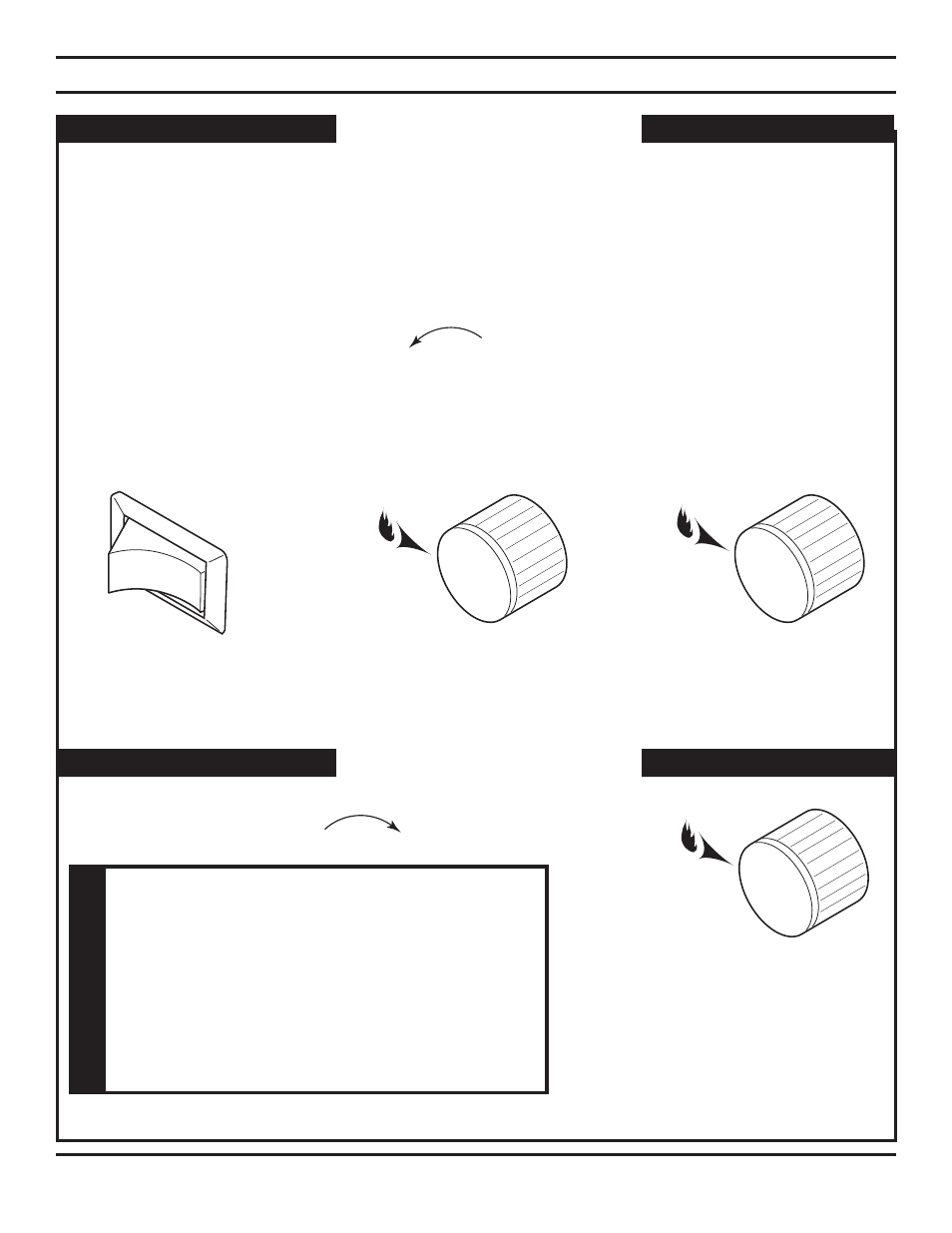

Figure 49 - On Position
PILO
T
OF
F
PI
LO
T
ON
Figure 48 -
On/Off/RS Switch
OFF
ON
RS
MILLIVOLT OPERATING INSTRUCTIONS
LIGHTING BURNER
MAIN BURNER SWITCH
The “ON/OFF/RS” switch for the main burner can be found behind door of the fireplace. This switch allows
you to turn on and to turn off the main burner without using the gas valve knob. Make sure the button is in the
“ON” position to light the main burner. See Figure 48.
LIGHTING THE BURNER
Depress and turn the knob counterclockwise to the “ON” position. See Figure 49. It will take less
than four (4) seconds for the burner to ignite.
PILOT POSITION
Depress and turn knob to pilot position to keep burner off while maintaining the pilot light. See Figure 50.
Depress and turn knob clockwise to “OFF” position. See Figure 51.
TO TURN OFF GAS
Figure 51 - Off Position
Figure 50 - Pilot Position
WARNING
The control is fitted with a safety interlock
device which prevents unsafe ignition of the
pilot burner after the control knob has been
turned to the OFF position. The knob may
only be rotated back to the PILOT position
after the safety magnet has been released
(approximately 60 seconds). You will hear a
“click” when the safety magnet releases.
