Chapter 6: Using the Software
Multi-Tech Systems, Inc. 122

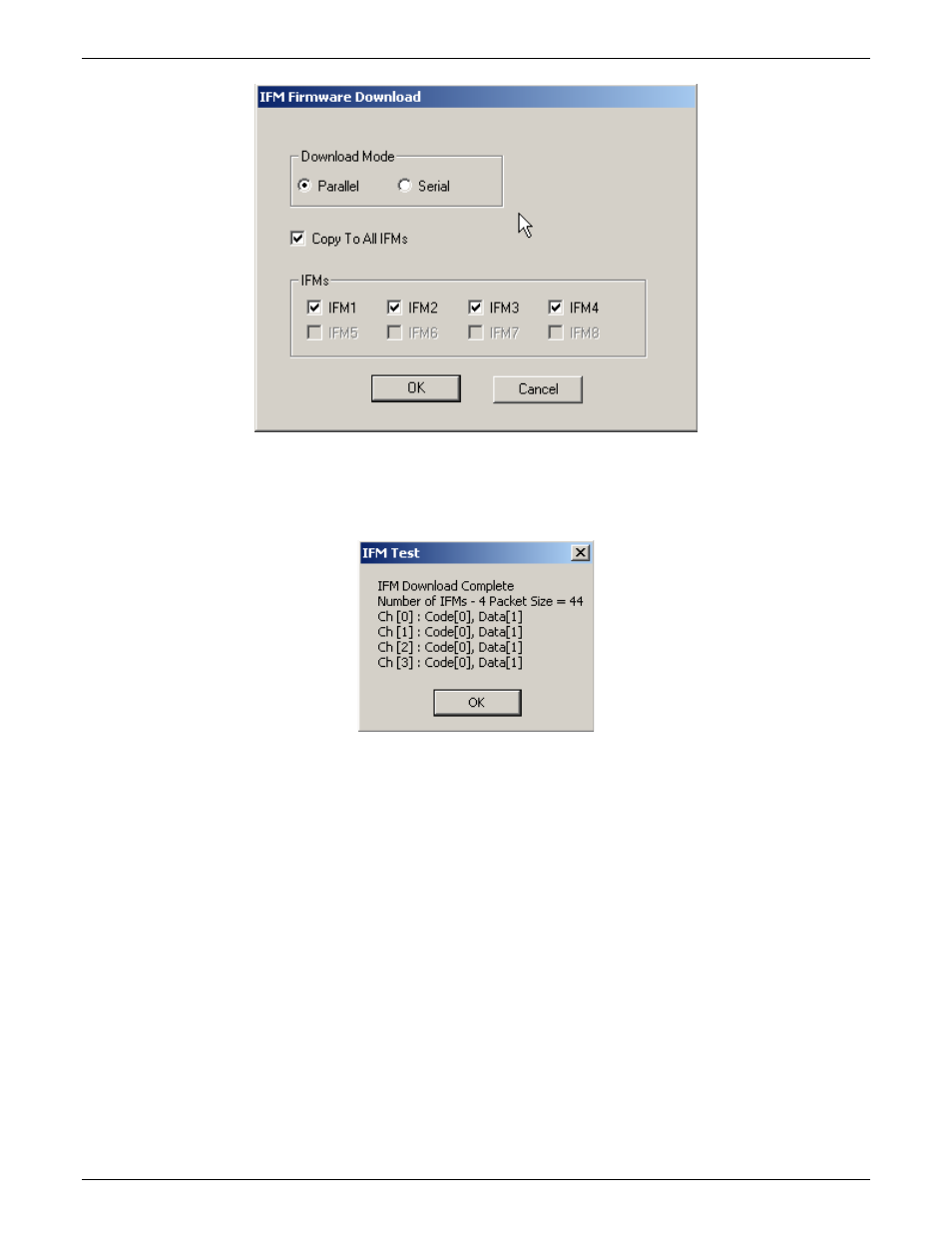

Figure 6-23: IFM firmware download
8. The main MultiVOIP Configuration screen will appear. Progress bars can be seen at the bottom of the screen
while files are being copied.
9. Then a completion screen entitled IFM Test will appear.
Figure 6-24: IFM test screen
Click OK.
10. The MultiVOIP will reboot itself. When the reboot is complete, the MultiVOIP Configuration screen will close.
11. The IFM firmware downloading process is complete.
