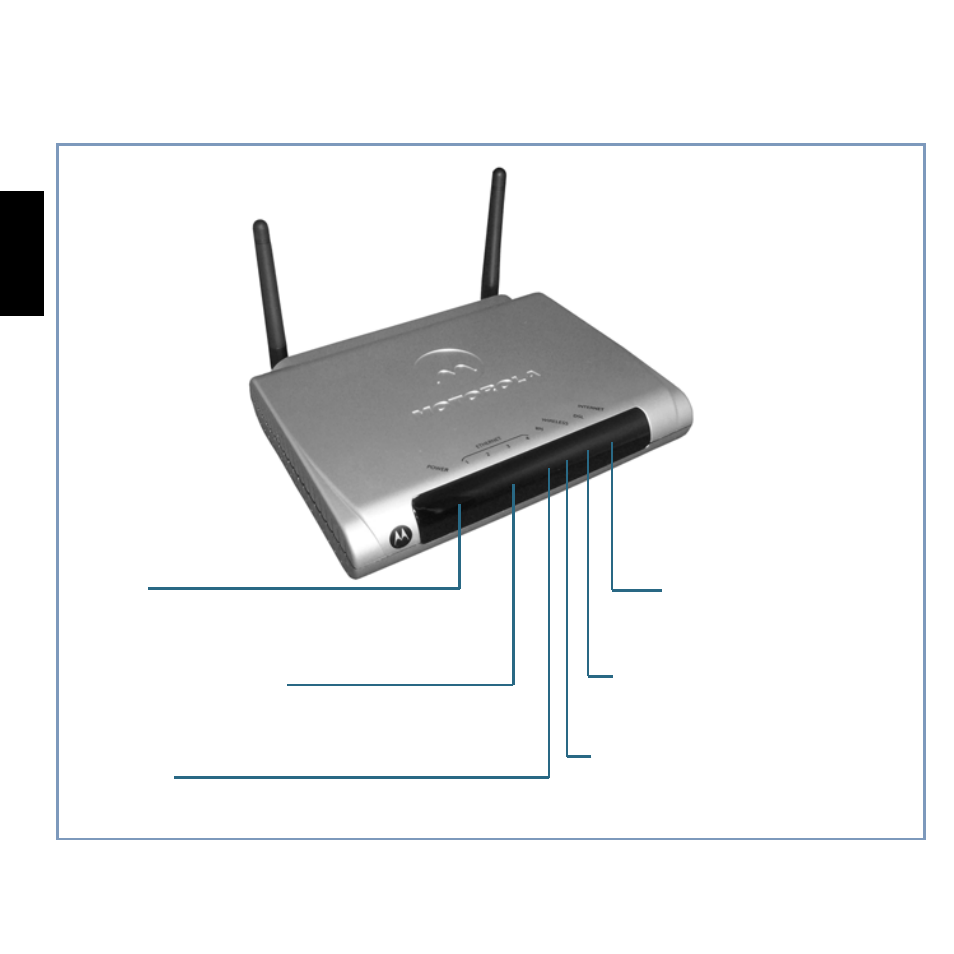

When all of your connections are made, the status LEDs on the front of your Motorola IAD Gateway
will light, according to the following diagram:
Power -
Ethernet 1, 2, 3, 4 -
Flash green when there is
activity on the LAN.
Front View
Solid green when connected.
Green when power is on.
Wireless -
Flashes
green when there is
activity on the wireless LAN.
Internet -
Green when device is
Flashes green when training.
Solid green when trained.
DSL -
Red if device malfunctions; flashes
red when updating embedded software.
connected. Flashes green
for activity on WAN port.
Solid green when WPS is successful.
WPS -
