58D6002 1
O N O F F
CHECkING GAS PRESSURE
and
CONNECTING REMOTE RECEIVER
MILLIVOLT CONTROL (FIGURE 11)
The valve regulator controls the burner pressure which should
be checked at the pressure test point.
If outlet pressure is low, check inlet pressure against data plates
or manual.
Turn captured slotted screw counter clockwise 2 or 3 turns and
then place tubing to pressure gauge over test point (Use test
point “OUT” closest to control knob). After taking pressure
reading, be sure and turn captured screw clockwise firmly to
re-seal. Do not over torque. Check for gas leaks.
NOTE: Remove control panel to access gas valve.

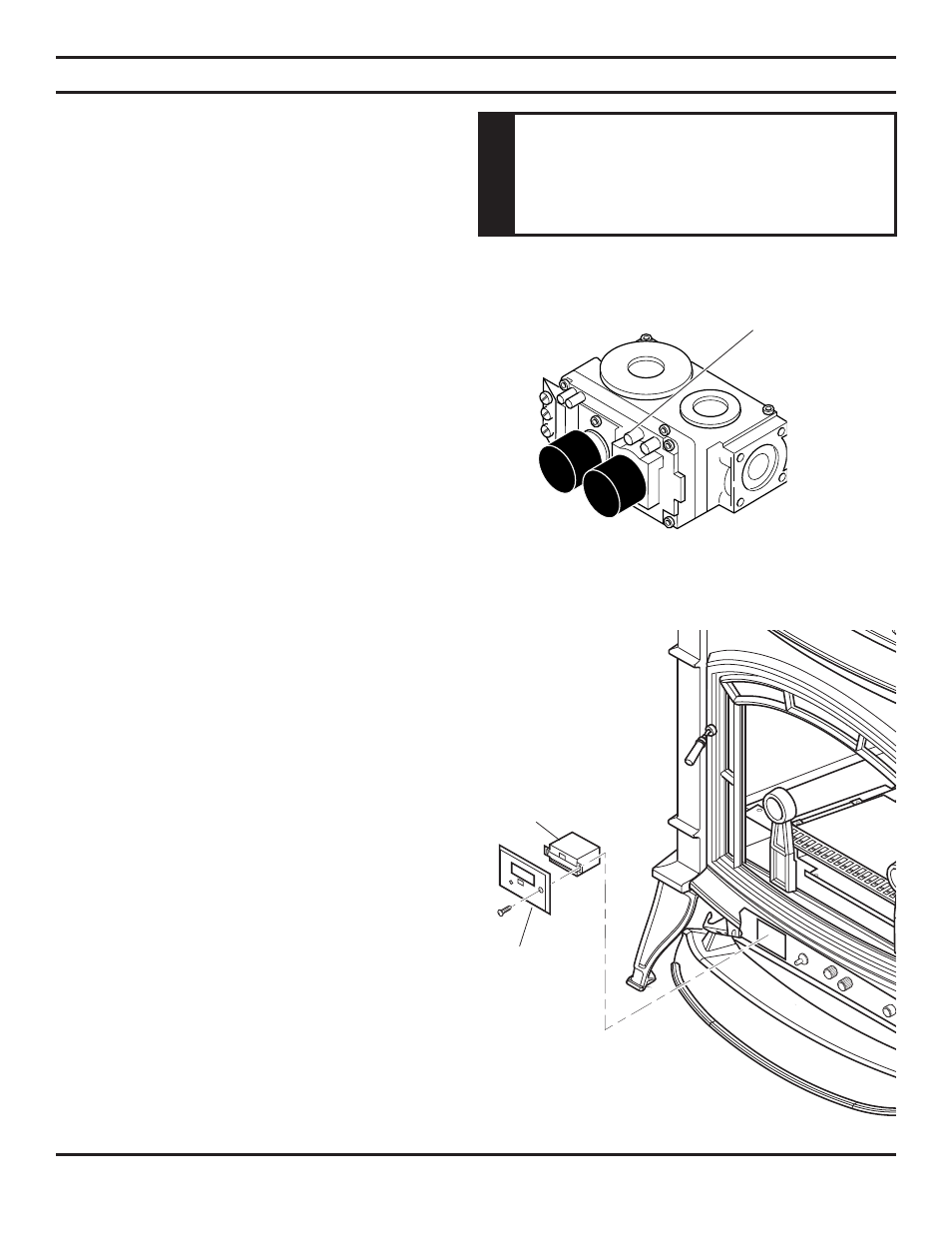

Figure 11 - Pressure Test Point Location
Milli-Volt Control
Test Port “OUT”
CONNECTING REMOTE RECEIVER
1. Remove cover on control panel to show opening for
remote receiver. See Figure 12.
2. Follow remote receiver Instructions to make all neces-
sary wiring connections.
3. Place remote receiver in the opening of control panel.
Use two screws provided to attach remote receiver to
the control panel. See Figure 12.
Figure 12 - Installing Remote Receiver
Remote Receiver
Cover
NOTE: Do not place remote in combustion chamber.
The heater gas inlet connection is 3/8" NPT at the valve. The
inlet is located on left side of stove. Remove front control
plate to better access the inlet.
When tightening up the joint to the valve, hold the valve securely
with a wrench to prevent movement.
Test all gas joints from the gas meter to the heater valve for
leaks using a gas analyzer or soap and water solution after completing connection. DO NOT USE AN OPEN FLAME.
Check the gas pressure with the appliance burning and the control set to HIGH.
W
ARNING
Connecting directly to an unregulated
propane/L.P.G. tank can cause an
explosion.
