290

Exterior lamps

Technical

data

Instruments
and controls

Operation

Driving

Instrument

cluster display

Practical hints

Car care

Index

Adjusting headlamp aim

Correct headlamp adjustment is extremely important.
To check and readjust a headlamp, follow steps 1
through 6.

Please note:

High beam adjustments simultaneously aim the low

beam.

Vehicle should have a normal trunk load.

1. Park vehicle on level surface approximately 6 inches

(152 mm) from a vertical test screen or wall. The
centerline of the vehicle must be at a 90

° angle to

the test screen.

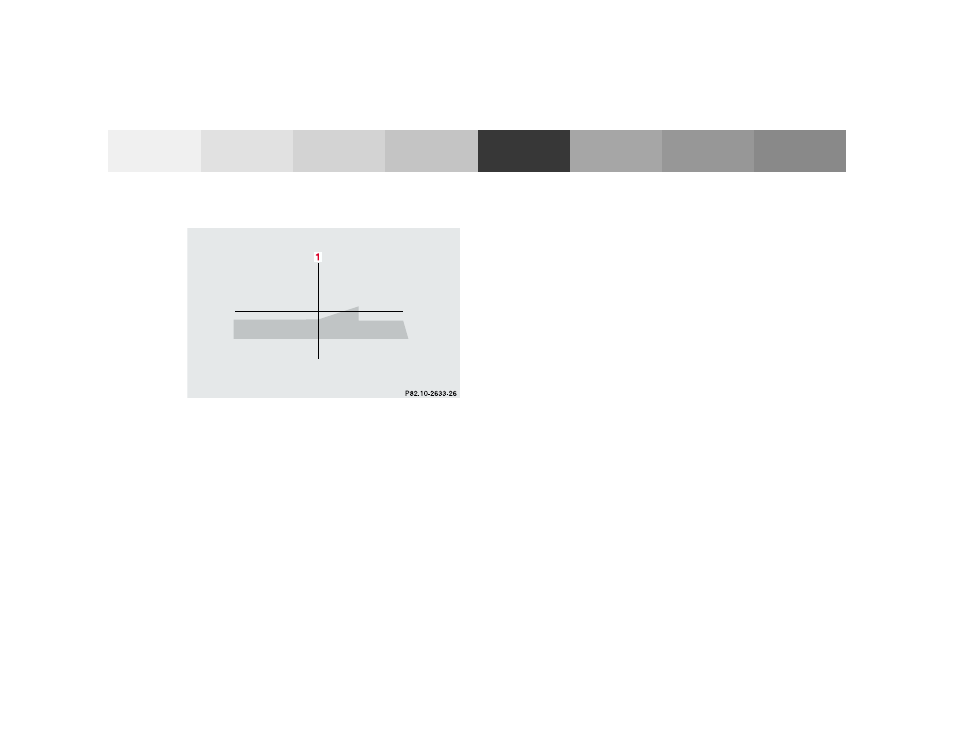

2. (High beams on):

Using a carpenter’s level, align and mark a vertical
centerline (1) on the test screen for each headlamp
lens at a distance of 25

3

/

4

inches (654 mm) from

the vertical centerline. As a check, the distance
between centerlines should be 51

1

/

2

inches

(1308 mm). The star emblem on the hood may be
used to determine the vehicle centerline. If the
distance does not check, have the system verified at
an authorized Mercedes-Benz Light Truck Center.

3. Move vehicle on the level surface 25 feet (7.6 m)

straight back from the wall.

4. Open hood.

V

H

low beam
