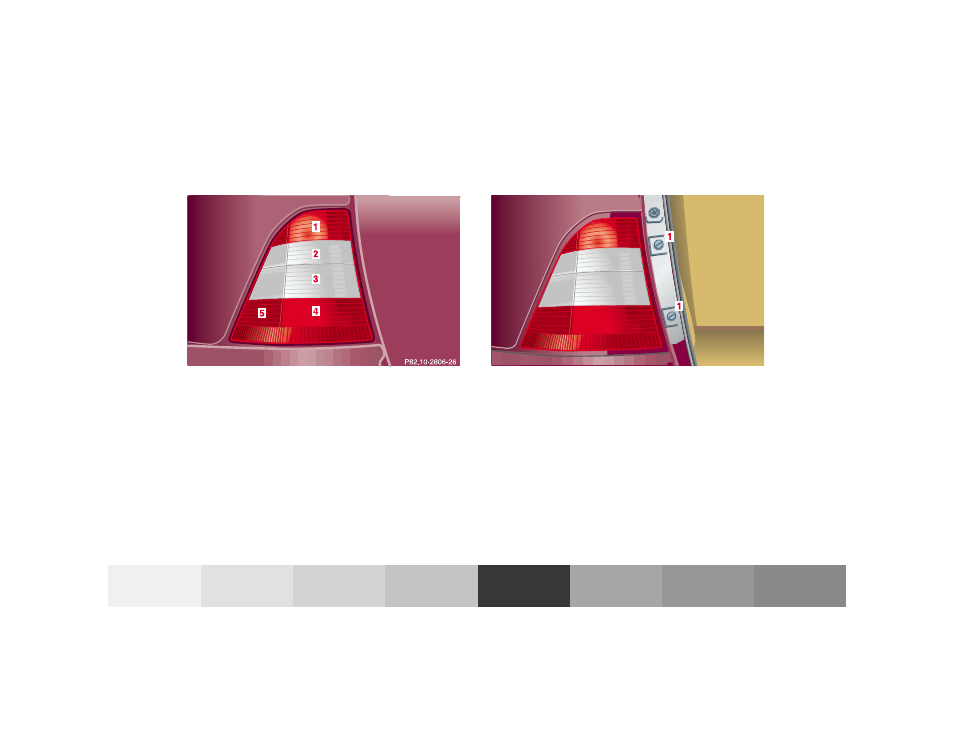

Taillamp assemblies

1

Stop lamp (1073 [32 cp bulb])

2

Backup lamp (1073 [32 cp bulb])

3

Turn signal lamp (P Y 21 W bulb)

4

Tail, parking, standing lamp, driver’s side rear fog
lamp (P 21/4 W bulb)

5

Side marker lamp W 5 W

Open liftgate.

Remove screws (1).

Remove taillamp.

Note.

Spacers are used under the taillamp mounting tabs.
During reinstallation make sure that the spacers are
properly installed onto the screws.

P82.10-2755-26
