Fog lamp assembly

The foglamps are located in the front bumper.

Check and readjust foglamps at regular intervals and
when a bulb has been replaced.

Removing fog lamp assembly:

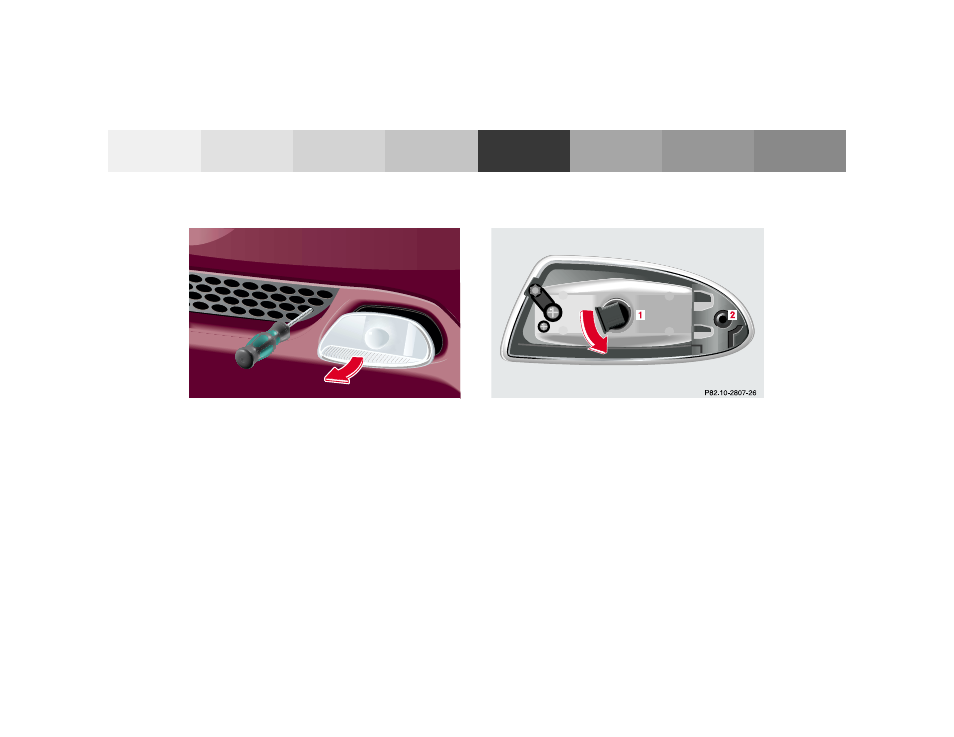

Remove foglamp holder from bumper by pressing
locking tab of fog lamp holder using a suitable tool
(e.g. screw driver). Swing fog lamp holder out of bumper
and remove fog lamp from holder.

1

Bulbs for fog lamps
H8 35 W

2

Tabs

Remove connector from lamp (1), turn lamp socket
towards left and pull out. Remove bulb.
Insert new bulb into lamp socket and insert into
housing. Turn socket towards right.

During fog lamp installation, make sure that fog lamp
tabs (2) firmly seat into the slots of the holder.

P82.10-2764-26
