MEA WSM6300 Users Guide
WSM6300 Installation Procedure
1. Mount the WSM6300 in a suitable location. The device is environmentally sealed. Refer
to the Deployment section of this document and the MEA Guidelines for Network
Deployment manual for deployment location recommendations.
WARNING
The WSM6300 chassis must be grounded to prevent the possibility of damage induced by
Electro Static Discharge (ESD).
2. Connect the antenna or antenna cable to the to the N-type antenna port.
3. Insert the Power Plug / Serial connector into 6-pin connector port.

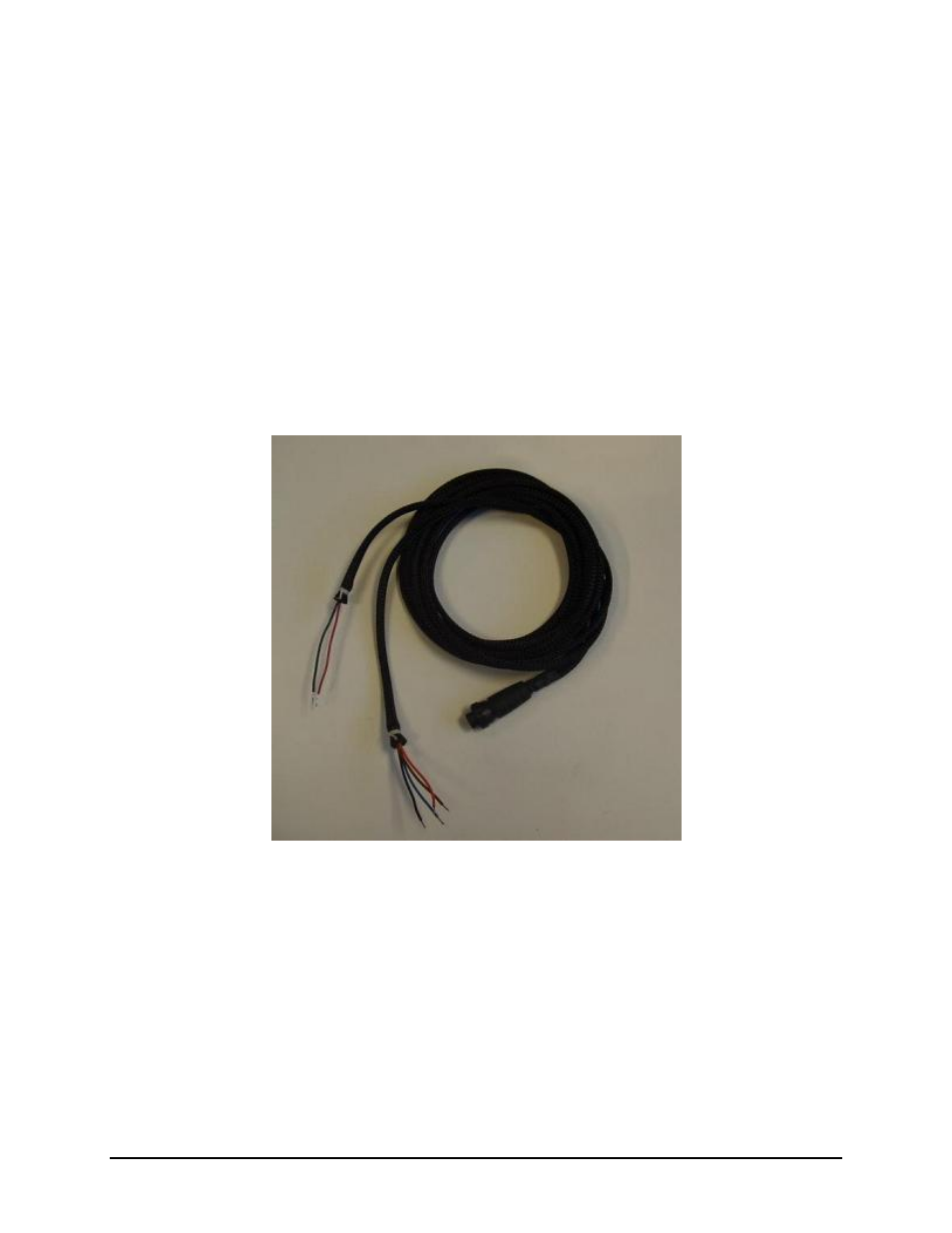

Figure 2. WSM Serial Cable
Pin Number Signal Power/Serial Cable Color
1 PWR GND Black
2 5 – 14.0 VDC Red
3 GPIO5 (0 to 3.3 V) Blue
4 TX(RS-232) or A+(RS-485) – from ASIC Brown
5 RX(RS-232) or B-(RS-485) – to ASIC Orange
6 Signal GND Black
3
