P A G E 13
D I P A N D F L O W C O O L E R S U S E R ’ S M A N U A L

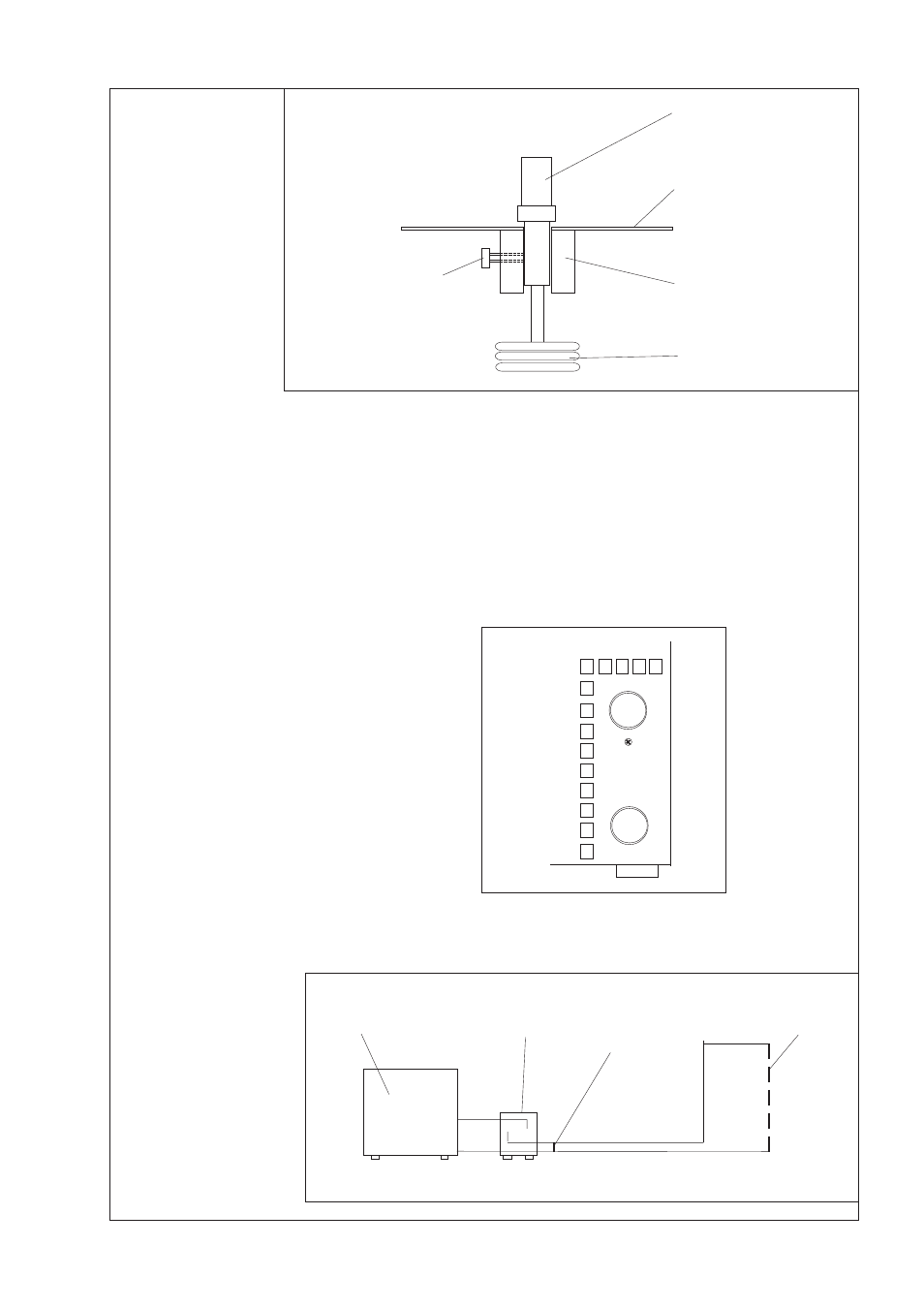

Flexible
Bridge Cover
Clamp Screw Support
Coil
6 FLOW COOLERS
Connect the Flow Cooler to a system using 16 mm bore hose
which is capable of withstanding both the temperature of
operation and the liquid being used. 12 mm bore hose may be
used if the hose is soft such as silicone rubber. Ensure the flow
is in through the INLET pipe and out through the OUTLET as
cooling power will be lost if the flow is reversed.
OUTLET
INLET
If the system is of a small bore or the viscosity of the liquid
prevents the flow being maintained, a by-pass should be
incorporated in the system.
Flow Cooler C-85 Circulator By-pass External circuit
(If necessary)
