P A G E 11
D I P A N D F L O W C O O L E R S U S E R ’ S M A N U A L

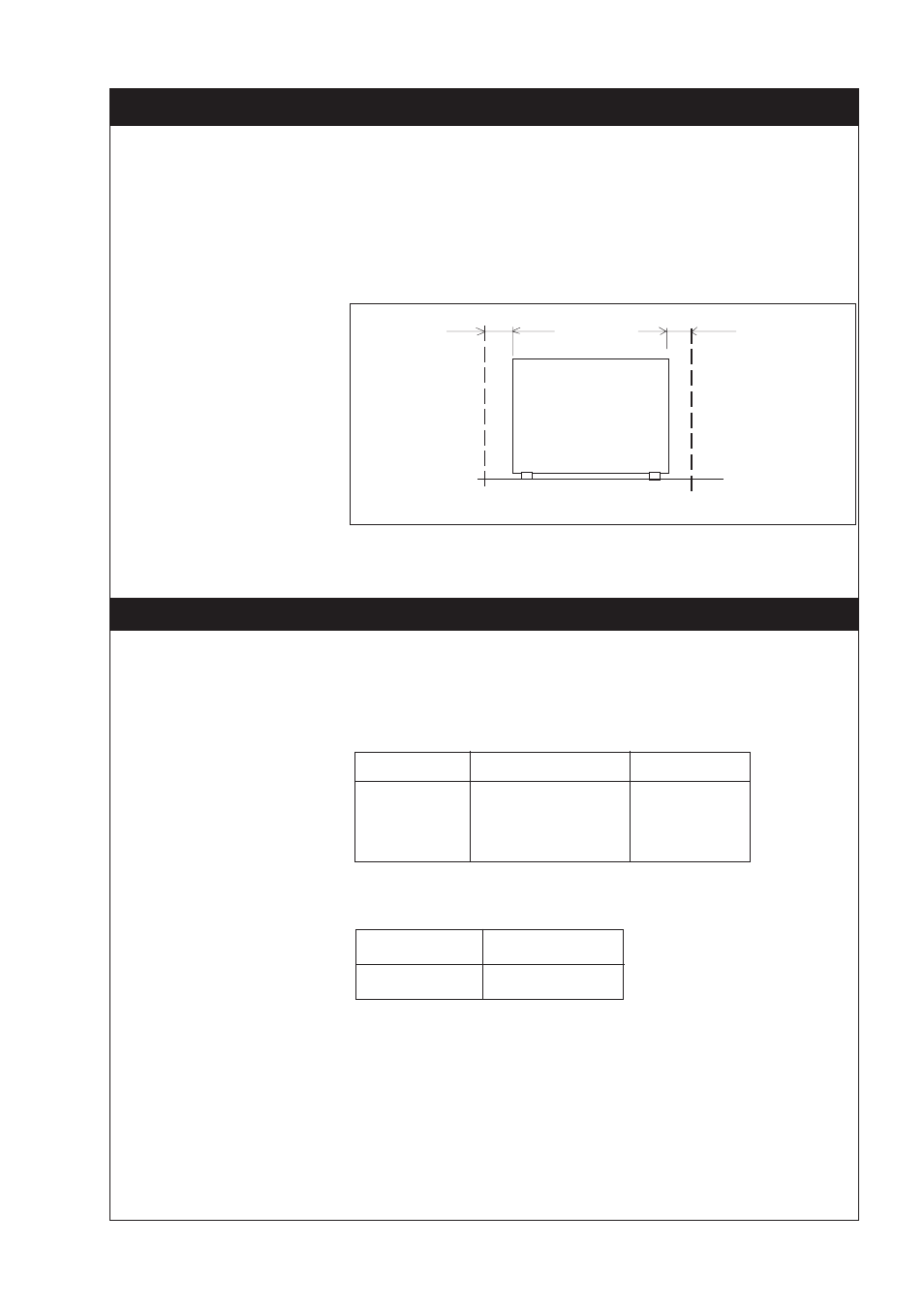

Siting Considerations
All the units are air cooled, air being pulled in through the front and
expelled from the rear. The ventilation grilles should never be
obstructed, therefore, as this will detract from the performance. Also
the fridge units should never be situated in an enclosed space or
near an extractor fan, this too will detract from the performance.
MINIMUM MINIMUM
150 mm (6") 150 mm (6")
Setting up the unit
1. Check the voltage marked on the unit’s rating plate against that
of the mains supply. Connect the mains cable to a suitable plug
as in the following table. Note that the unit must be earthed to
ensure proper electrical safety.
Connections 230V 110/120V
Live brown black
Neutral blue white
Earth yellow and green green
If a fused plug is used it should be fitted with the following value
fuse:
Supply 230V
Fuse Rating 13 Amp
Note that units marked 230V on the rating plate work equally well
at 220V; units marked 120V on the rating plate work equally well
at 110V
