Extron • System 4 xi xi xi xi xi Switcher Series • User’s Manual • P/N 68-401-02 Rev. C
Configuration and Connections Mitsubishi Installation
Page 7
6. Plug the 15-pin HD connector of the Projector Communications Extension cable
(shown as CC 50') into the PJ Comm port on the System 4 xi .
______ Secure the screws on all D connectors.
7. Plug the (4 or 5) BNC connectors from one end of the (user-supplied) RGBS/HV
cable onto the System 4 xi output. Connect the 15-pin connector on the other end
of the RGBS/HV cable to the PC-1 Input connector on the Mitsubishi LVP-X200
connector panel.
System 4 xi xi xi xi xi Series – Mitsubishi LVP-X200 Projector Connections

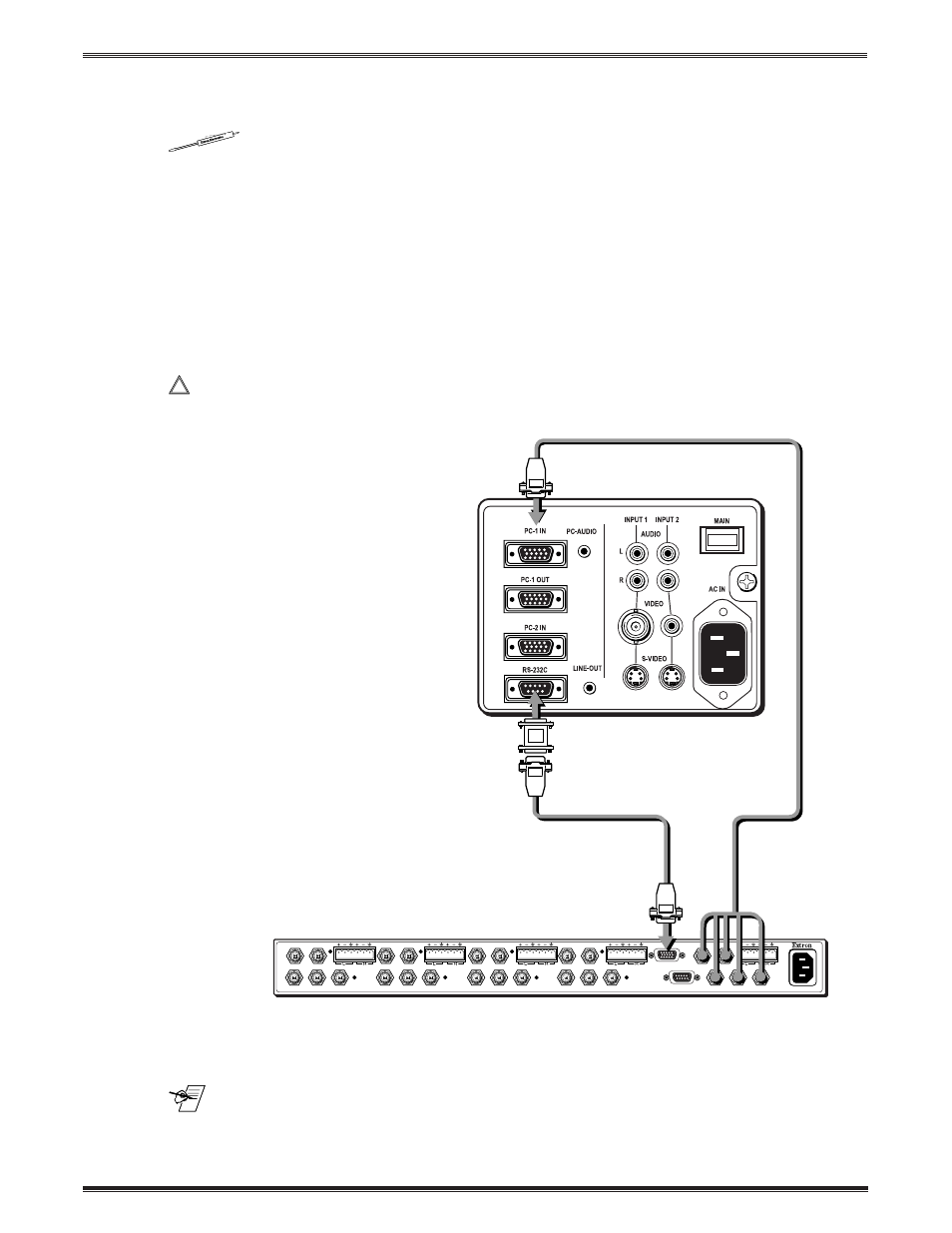

Use the following illustration as a guide when connecting the System 4 xi to a
Mitsubishi LVP-X200 projector. Refer to Mitsubishi documentation to continue
the installation.
____________ In a rack mount, do NOT allow the weight of the cables to be supported by the
System 4 xi . See page 2-5 for cabling guidelines.
__________ System 4 xi channel numbers correspond to the projector’s “Group” numbers.
RGBHV 5 BNC
15-Pin
Male
9-Pin Female
SY-VGA
26-173-01
ComAdapter
26-475-01 "G"
15-Pin Male
G
OUTPUT
PJ COMM
RS 232
AUDIO AUDIO AUDIO AUDIO AUDIO H/HV
R/C G/Y B R/C G/Y B
V
INPUT 4
H/HV V
R/C G/Y B
INPUT 3
H/HV V
R/C G/Y B
INPUT 2
H/HV V
R/C G/Y B
INPUT 1
H/HV V
