9
Cabling
Cabling Your MultiVOIP
Cabling your MultiVOIP involves making the proper Power,
Command Port, phone system, and Internet connections.

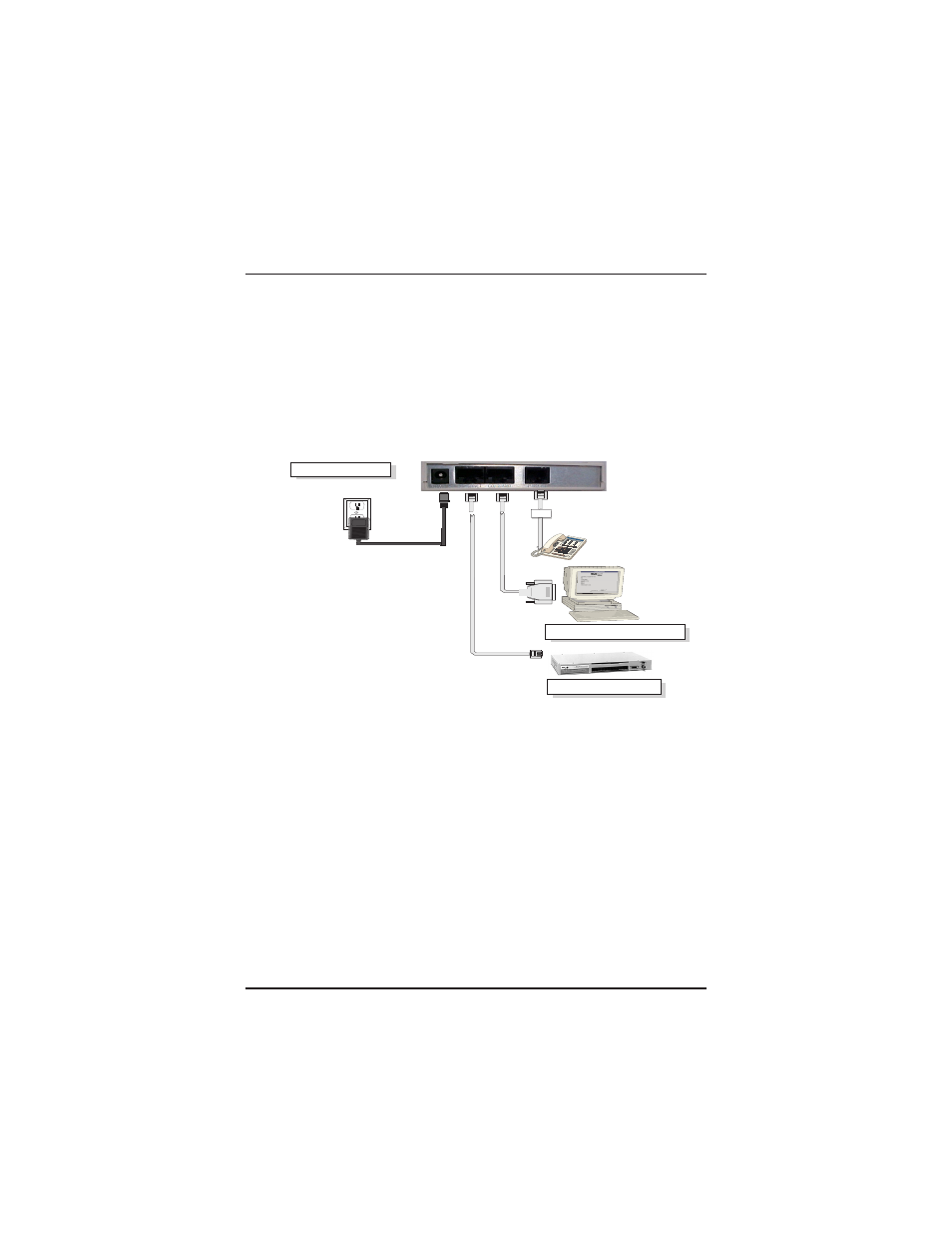

Figure 5 shows the back panel connectors and the associated
cable connections. The following procedure details the steps
necessary for cabling your MultiVOIP.
1. Connect the power supply to a live AC outlet, then connect
it to the MultiVOIP as shown in Figure 5.
Network Connection
Power Connection
Command Port Connection
FXS
Hub
Figure 5. Cable Connections
2. Connect the MultiVOIP to a PC using the RJ-45 to DB9
(female) cable provided with your unit. Plug the RJ-45 end
of the cable into the Command port of the MultiVOIP and
connect the other end to the PC serial port you are using.
See Figure 5.
3. Connect a network cable to the Ethernet connector on the
back of the MultiVOIP. Connect the other end of the cable
to your network.
4. If you are connecting a station device such as an analog
telephone, a fax machine, or a Key Telephone System
(KTS) to your MultiVOIP, connect an RJ-11 cable to the
