Place the eyebolt into the hole located half way up
the left handle and secure with cupped washer and
hex nut making sure that the cupped side of the
washer is against the handle.

Adjust the chute directional control bracket so that
the spiral on the chute directional control fully
engages the teeth on the chute assembly. Tighten
all hardware. See Figure 13.

Check to make sure all nuts and bolts on the control
panel and all four bolts which secure the handles to
the frame are tight.

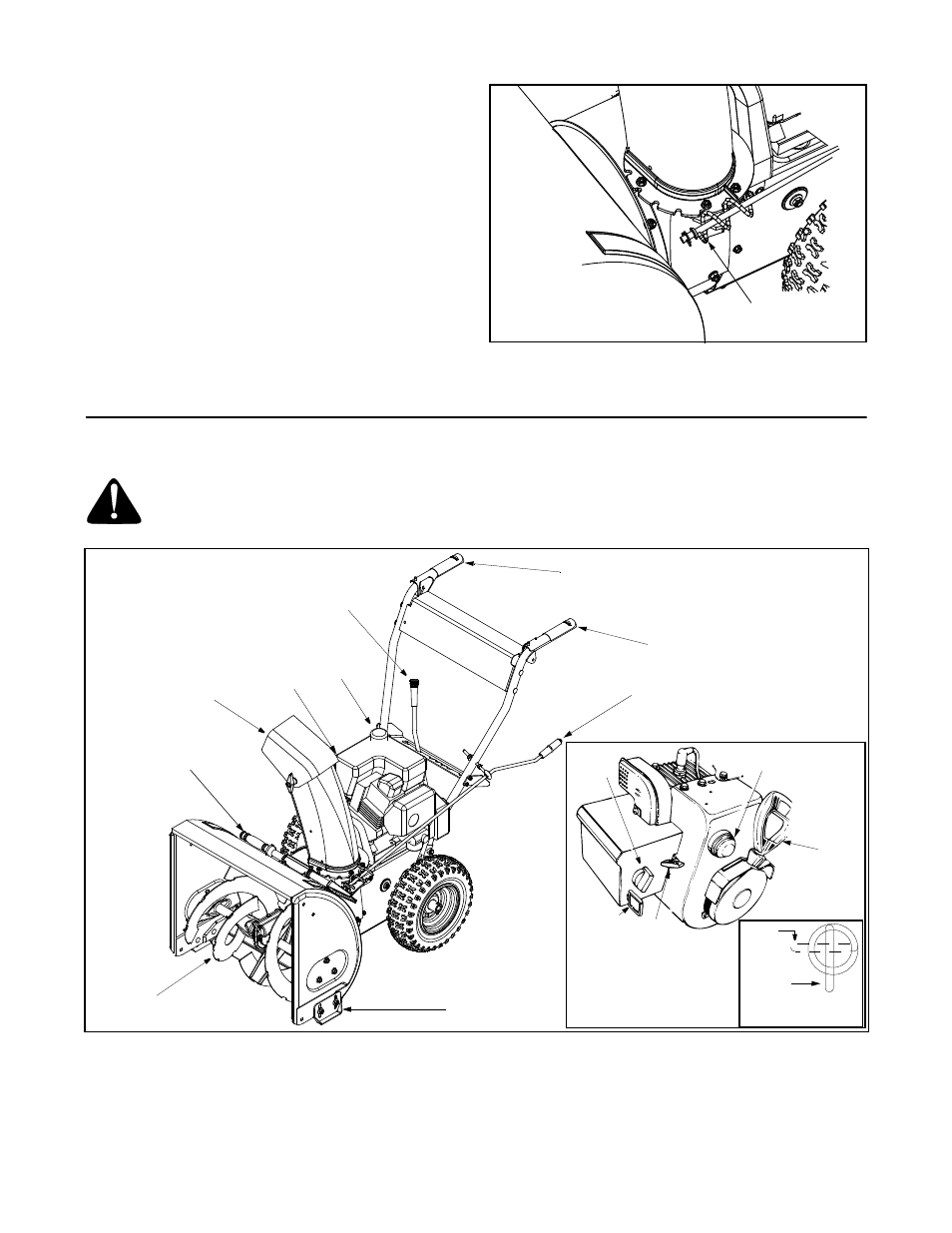

Figure 13

SECTION 4: KNOW YOUR SNOW THROWER

WARNING:

Read, understand, and follow all instructions and warnings on the machine and in this

manual before operating.

Figure 14

Shift Lever

The shift lever is located below the handle panel and it
is used to determine both ground speed and direction of

travel. It can be moved into one of seven positions.
Forward: There are five forward speeds; position one
(1) is the slowest and position five (5) is the fastest.
Reverse: There are two reverse (R) speeds; R1 is the

Spiral should engage
teeth of chute here.

Choke

Primer

Rope

Start

Handle

Ignition
Key

Throttle

Control

Auger

Chute Directional Control

Traction Control

Auger Control

Discharge Chute

Oil Fill

Gas Fill

Shift Lever

Skid Shoe

Clean-Out
Tool

Closed

Open

Fuel Shut-Off Valve

*If Equipped
