62D4036 24
BBV, SBV Series Natural Vent Gas Fireplaces
LG663
BBV SBV400 log flame
LG663
CLEANING and MAINTENANCE
W
ARNING
Turn off gas before servicing fireplace. It
is recommended that a qualified service
technician perform these check-ups at
the beginning of each heating season.
BURNER, PILOT AND CONTROL COMPARTMENT
Keep the control compartment, logs and burner areas surrounding the logs
clean by vacuuming or brushing at least twice a year. Make sure the burner
porting, pilot air opening and burner air openings are free of obstructions at
all times.
PILOT FLAME
The flames from the pilot should be visually checked as soon as the heater is
installed and periodically during normal operation. The pilot flame must always
be present when the fireplace is in operation. Figure 26. The pilot flame has
three distinct flames, one engulfing the thermopile, one engulfing the thermo-
couple and the other reaching to the main burner.
BURNER
Inspect area around the injector. Remove any lint or foreign material with a
brush or vacuum.
BURNER FLAME
The flames from the burner should
be visually checked as soon as the
heater is installed and periodically
during normal operation. In normal
operation, at full rate, and after oper-
ating for about 15 to 30 minutes, the
flame should be yellow and slightly
taller than the rear log. Figure 27
NOTE: The type of installation,
vent system configuration and
wind effects may cause the flame
patterns to vary.
&0
PILOT
Thermocouple
Thermopile

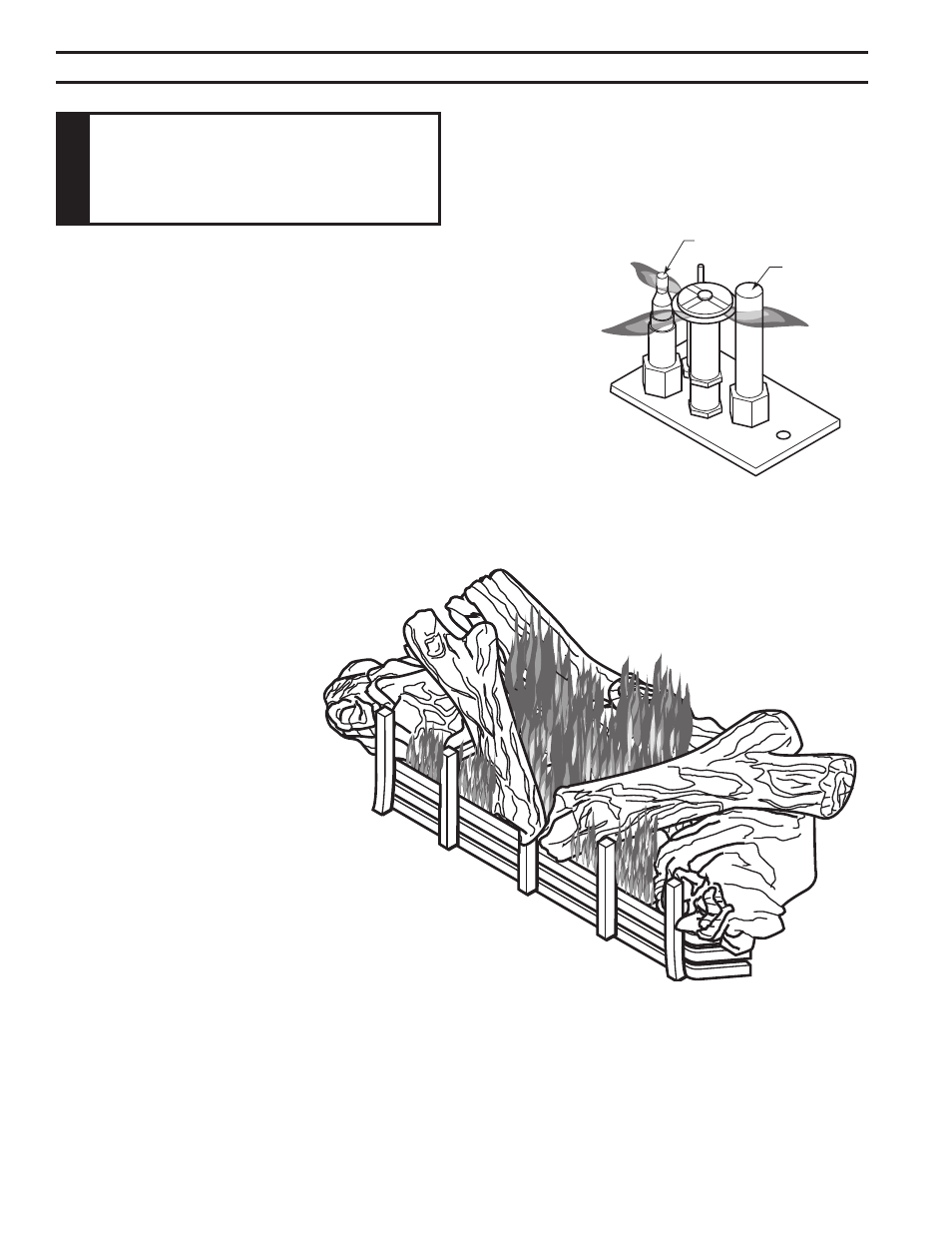

FP2030 Figure 26 -
Pilot Flame
Figure 27 -
Burner Flame Appearance
