62D4036 18
BBV, SBV Series Natural Vent Gas Fireplaces ELECTRICAL INSTALLATION
ELECTRONIC PILOT IGNITION WIRING
W
ARNING
Do not connect 110-120V AC to the Re-
mote Wall Switch. The appliance will
malfunction or destroyed.
&0
ELECTRONIC

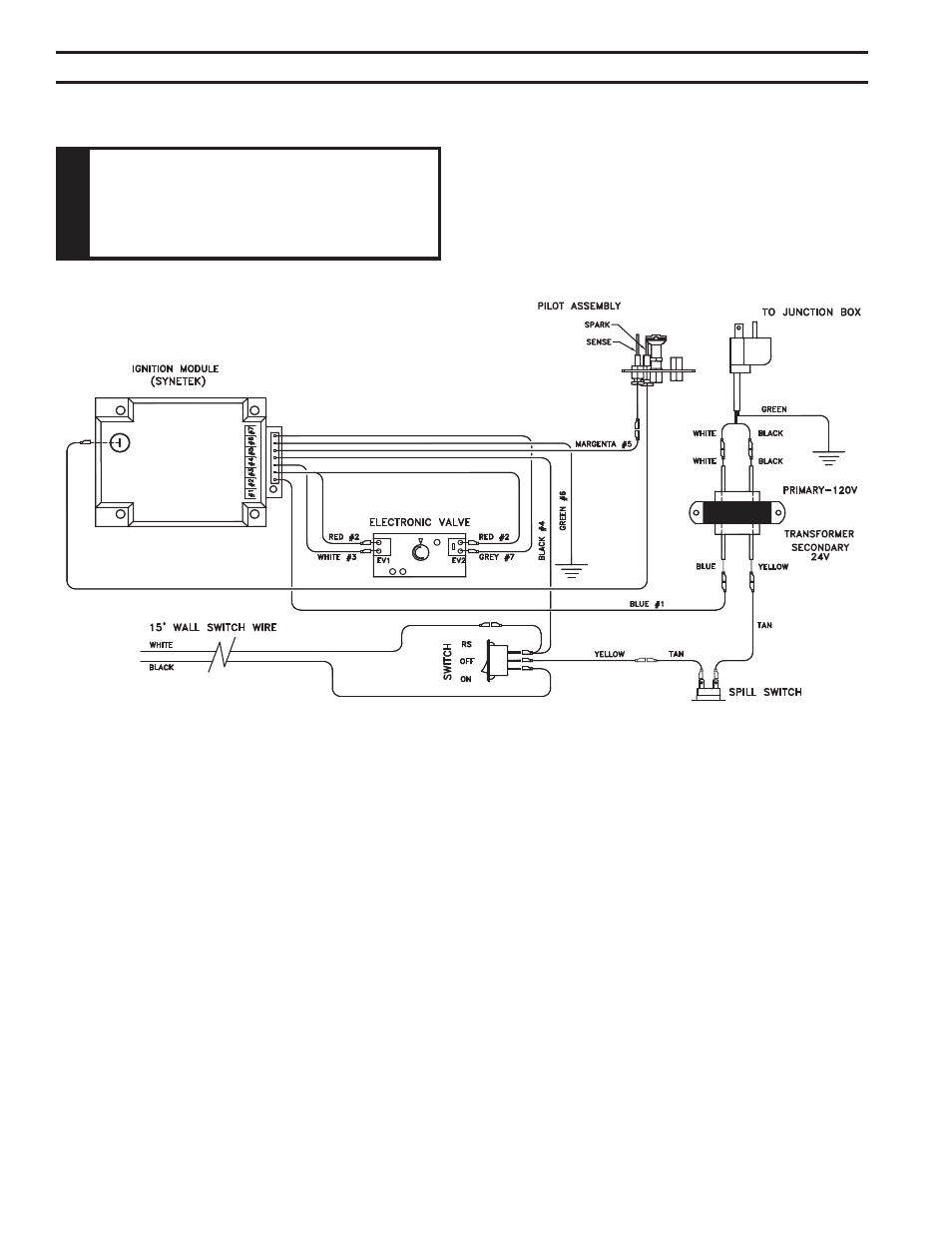

Figure 17 -
Electronic Ignition System Wiring Diagram
FP2027
REMOTE WALL SWITCH
Position the wall switch. Do not extend beyond the 15’ of wire.
OPTIONAL DC REMOTE SYSTEMS
These instructions replace the section entitled Hearth Mount in the Millivolt hand held remote in-
structions supplied with the remote.
1. Plug in remote connector wire to remote receiver.
2. Connect the wire terminal from the remote receiver. This replaces the 15’ wall switch connection
to the switch. Figure 17
3. Mount remote control receiver at junction box (for your wall switch).
